Suction

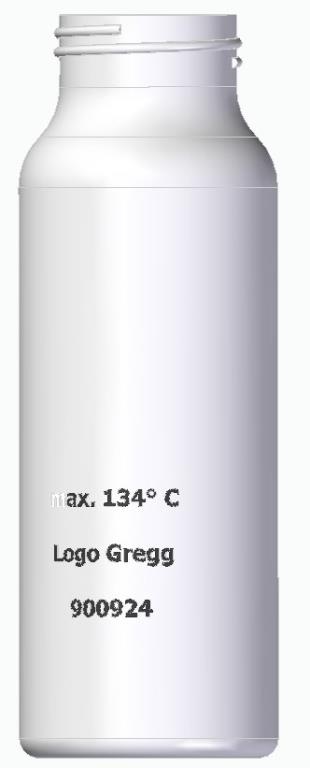

Bottle for Secretion 0.25 l made of APEC
Jar for secretion Material: APEC Capacity: 0.25 l

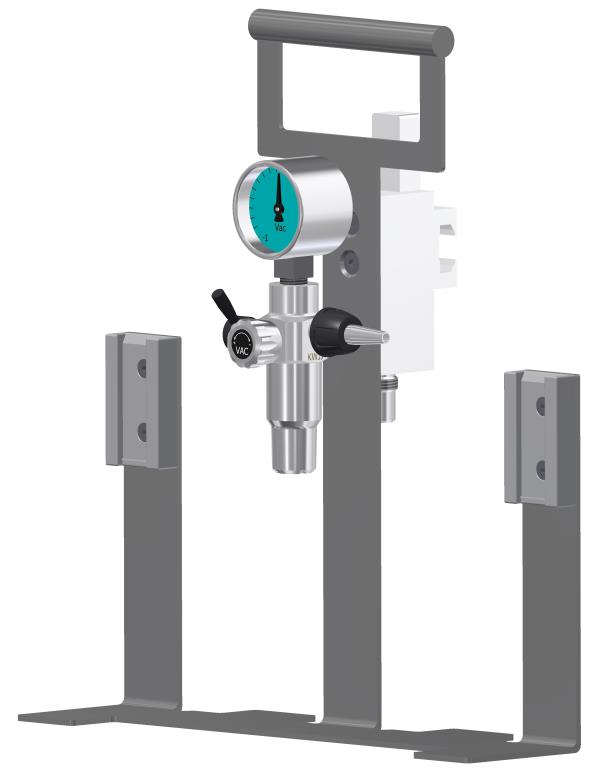

ConPort V2A - Specht-90, AIR
ConPort V2A - SPECHT-90, AIR Medical, portable suction unit - compressed air operated - including stainless steel carrying unit for holding 2 MEDELA 1.5 L or Serres 1.0 L suction canisters. The carrying frame features a sturdy handle and a bracket for a 25x10mm medical rail. The vacuum control unit is located at the front, allowing the operator quick and direct access. The gas inlet, as a NIST coupling, is located at the rear of the device, so that the supply hose remains outside the working area. Scope of delivery: - Compressed air ejector with fine dosing and quick-acting valve - Vacuum gauge - Carrying frame, V2A stainless steel - 2 holders for secretion canisters Technical data: Gas type: Compressed air - AIR Connection: NIST according to DIN EN ISO 18082 Outlet: Vacuum nozzle Performance: adjustable between 0 and -85 kPa Weight: approx. 3 kg (without canisters)

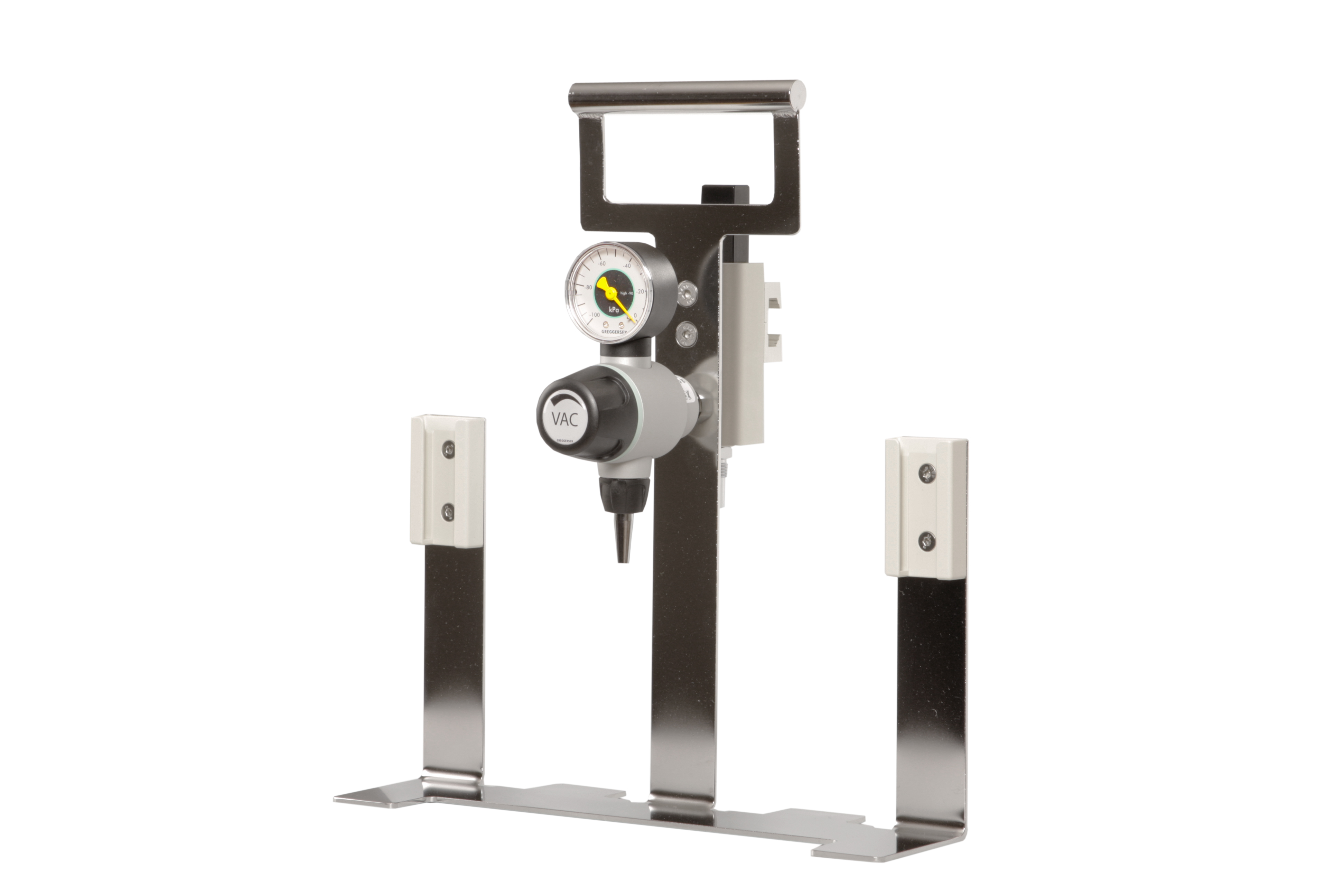

Conport V2A Pirol 2.0 -90, VAC, NIST
ConPort V2A - Pirol 2.0 -90, VAC, NIST Medical, portable suction unit - compressed air-powered - including stainless steel carrying unit to hold 2 pieces of suction canisters MEDELA 1.5 L or Serres 1.0 L. The carrying frame features a sturdy handle and a bracket for a 25x10mm equipment rail. The vacuum control unit is located in the front area, allowing the operator quick and direct access. The gas inlet as NIST coupling is located in the rear part of the device, so that the supply hose is outside of the working area. Scope of delivery: - Vacuum regulator Pirol-90, vacuum gauge, rotatable - Carrying frame, stainless steel V2A - 2 pieces holders for secretion canisters Technical data: Gas type: Vacuum Connection: NIST according to DIN EN ISO 18082 Outlet: 9/16-18 UNF with vacuum nozzle Performance: adjustable between 0 and -85 kPa Weight: approx. 3 kg (without canisters)

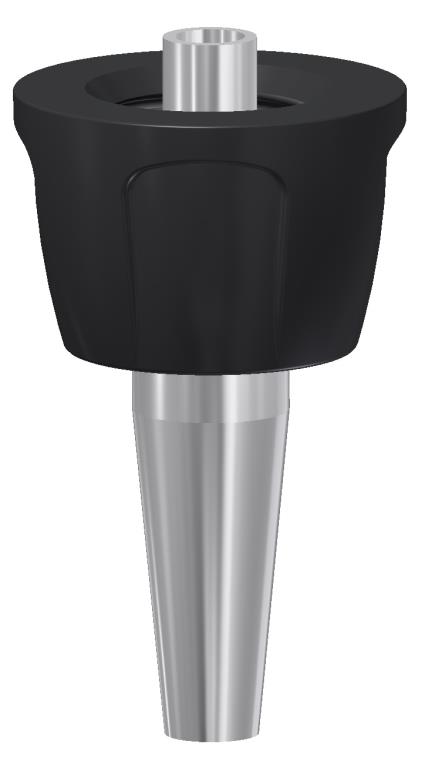

Hose Connection 9/16 Nipple-VAC
Hose connection for vacuum devices Connection fitting with union nut 9/16-18UNF for med. hoses Connection: 9/16-18UNF Outlet: 6 mm vacuum nozzle

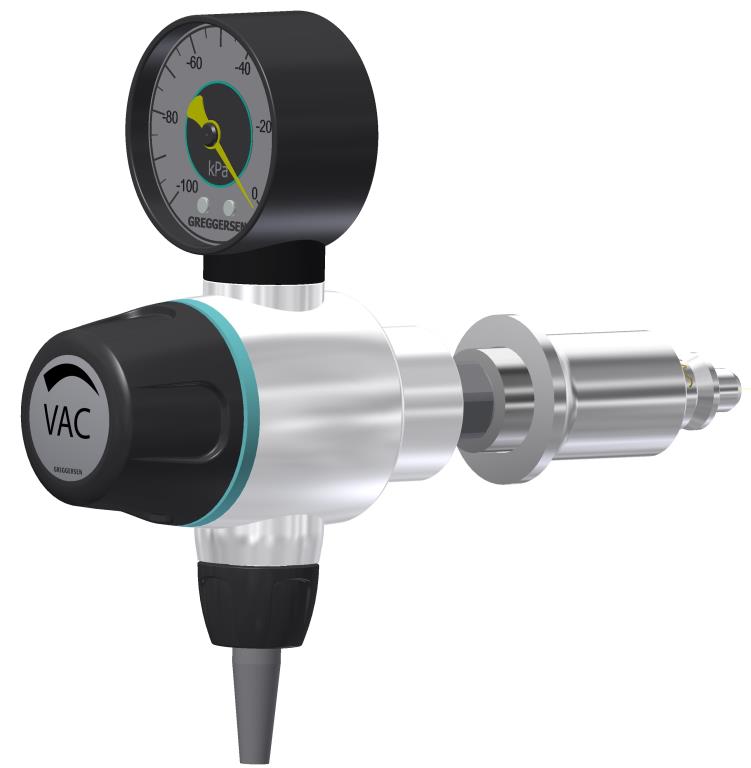

Pirol 2.0 -90,VAC,PLUG, MEDAP
Pirol -90, MEDAP - PROBE UNIT - Gas type: Vacuum / VAC Performance: adjustable between 0 and -90 kPa Medical vacuum regulator for vacuum dosing. With 360° rotating pressure gauge; large, ergonomic adjustment handwheel; probe unit for direct connection to a DIN wall outlet. The adjustment mechanism allows for continuous, precise and intuitive vacuum control. The rotating pressure gauge enables the user to read the set value from an optimal viewing angle. The regulator unit meets the requirements of DIN EN ISO 10079-3 (high vacuum / high flow). Gas type: Vacuum / VAC Inlet pressure: -40 ... -99 kPa(*) (*) The central supply system should at least comply with DIN EN ISO 7396-1. Inlet: MEDAP VAC probe Material: Housing: aluminium, anodised Handwheel: plastic Control range: 0 to -90 kPa(*) Performance: >20 l freeflow/min(*) Outlet: 9/16-18 UNF with vacuum hose barb (*) Tolerance ± 10%; inlet pressure -90 kPa, performance depends on inlet pressure

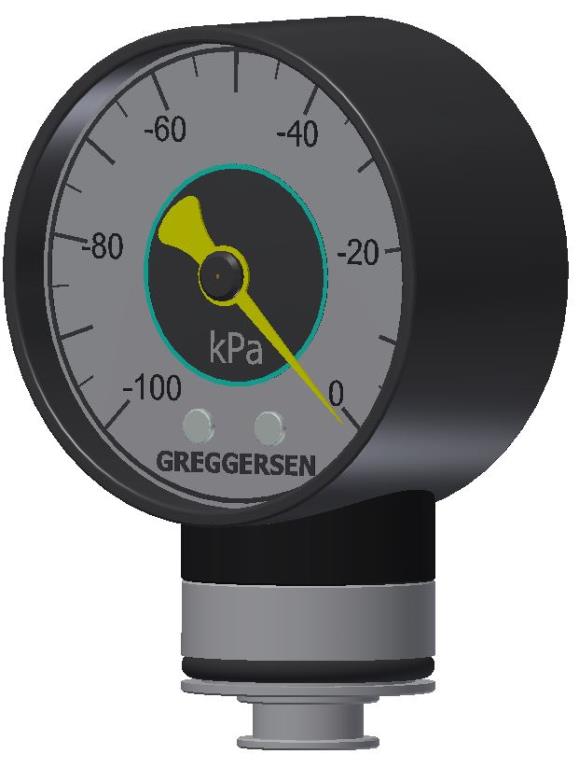

Pressure Gauge Pirol/Skua 1.0 VAC -90
Pressure gauge Pirol/Skua 1.0 VAC -90 Display range from -100...0kPa until 10/2017

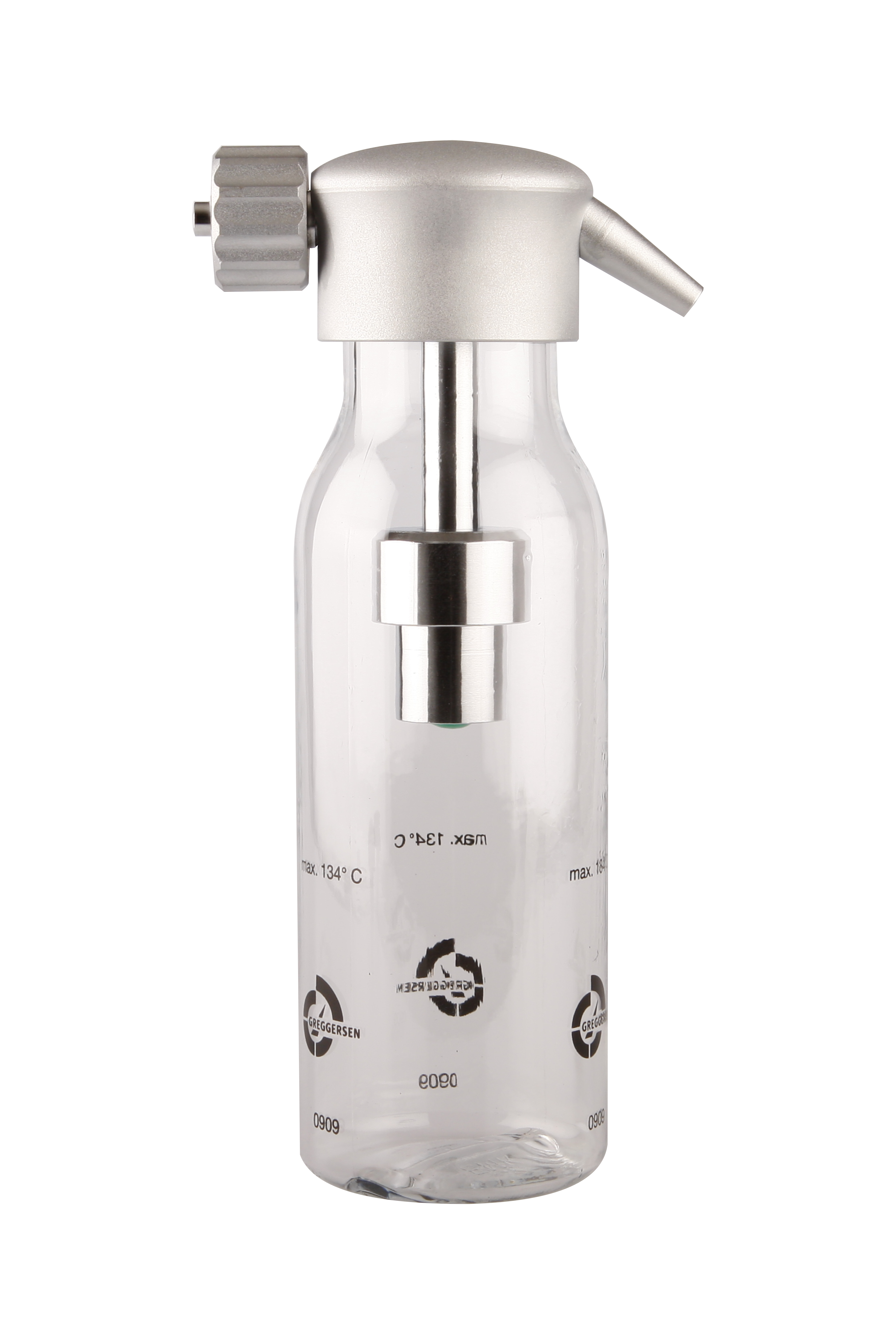

Secreted bottle with overflow s. 0.25l - AIR
Secretory overflow protection AIR 0.25 L Connection: 9/16-18 UNF union nut Outlet: Flow nozzle Volume: 0.25 l - APEC plastic 0.25 l cpl. with overflow protection and nozzle suitable for all compressed air driven regulators (SPECHT, side connection to regulator)

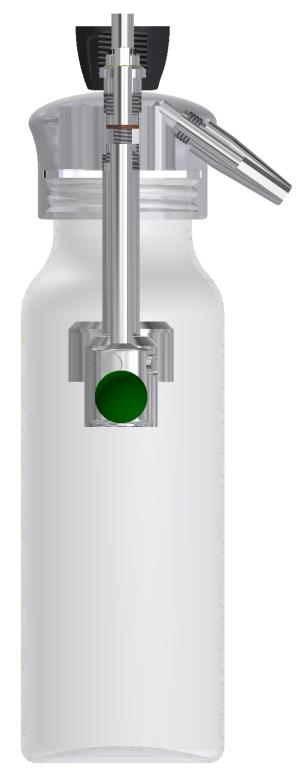

Secretion overflow bottle, 0.25L, 2013
Secretion overflow protector VAC 0.25 L suitable for Skua + Pirol and Spatz Connection: 9/16-18 UNF union nut black, PA plastic Outlet: Ø 6 - 10mm nozzle Capacity: 0.25 L - APEC plastic 0.25 l complete with overflow protector and nozzle suitable for all Pirol, Skua and Spatz regulators, top connection. Overflow protector made of brass, chrome-plated

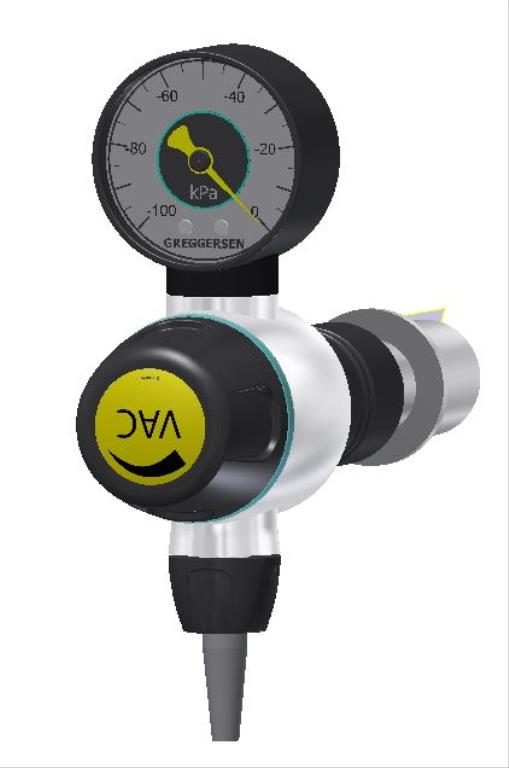

Skua 2.0 -90, AIR,PLUG, MEDAP
Skua -90, AIR, MEDAP - PROBE UNIT - Gas type: med. compressed air / AIR Performance: adjustable between 0 and -85 kPa Medical vacuum regulator for vacuum dosing. The vacuum is generated by compressed air according to the Venturi principle. With 360° rotating pressure gauge; large, ergonomic adjustment handwheel; rotating exhaust sleeve; probe unit for direct coupling into a DIN terminal unit. The adjustment mechanism allows for infinitely variable, precise and intuitive vacuum control. The rotating pressure gauge allows the user to read the set value from an optimal viewing angle. The airflow can also be individually aligned via the exhaust sleeve. The regulator unit meets the requirements of DIN EN ISO 10079-3 (high vacuum / high flow). Gas type: med. compressed air / AIR Inlet pressure: 400… 500 kPa(*) (*) The central supply system should at least comply with DIN EN ISO 7396-1. Inlet: MEDAP AIR probe Material: Housing: Aluminium, anodised Handwheel: Plastic Control range: 0 to -85 kPa(*) Performance: 24 l Freeflow/min(*) Consumption: 38 l/min(*) Outlet: 9/16-18 UNF with vacuum nipple (*) Tolerance ± 10%; inlet pressure 500 kPa, performance depends on inlet pressure

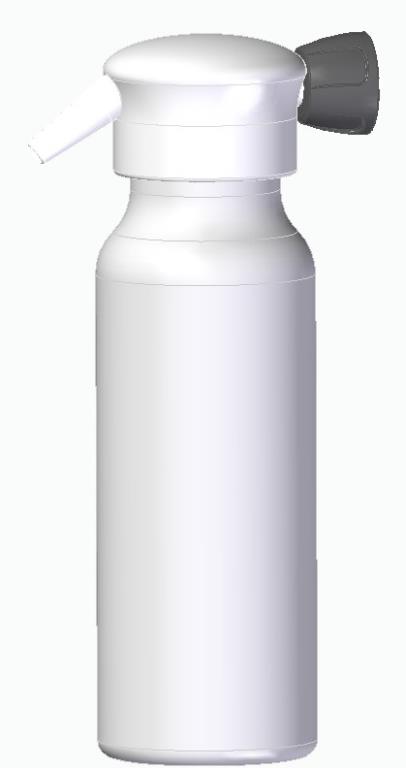

Suction jar w. overflow prot. 0.25l - AIR ANTIMA
Secret-Suction Jar AIR anti-magnetic 0.25 l Connection: 9/16-18 UNF union nut Outlet: Flow nozzle Volume: 0.25 l - APEC plastic ANTI-MAGNETIC 0.25 l compl. with overflow protection and nozzle, fits all compressed-air operated regulators (SPECHT, lateral connection to regulator, ANTI-MAGNETIC

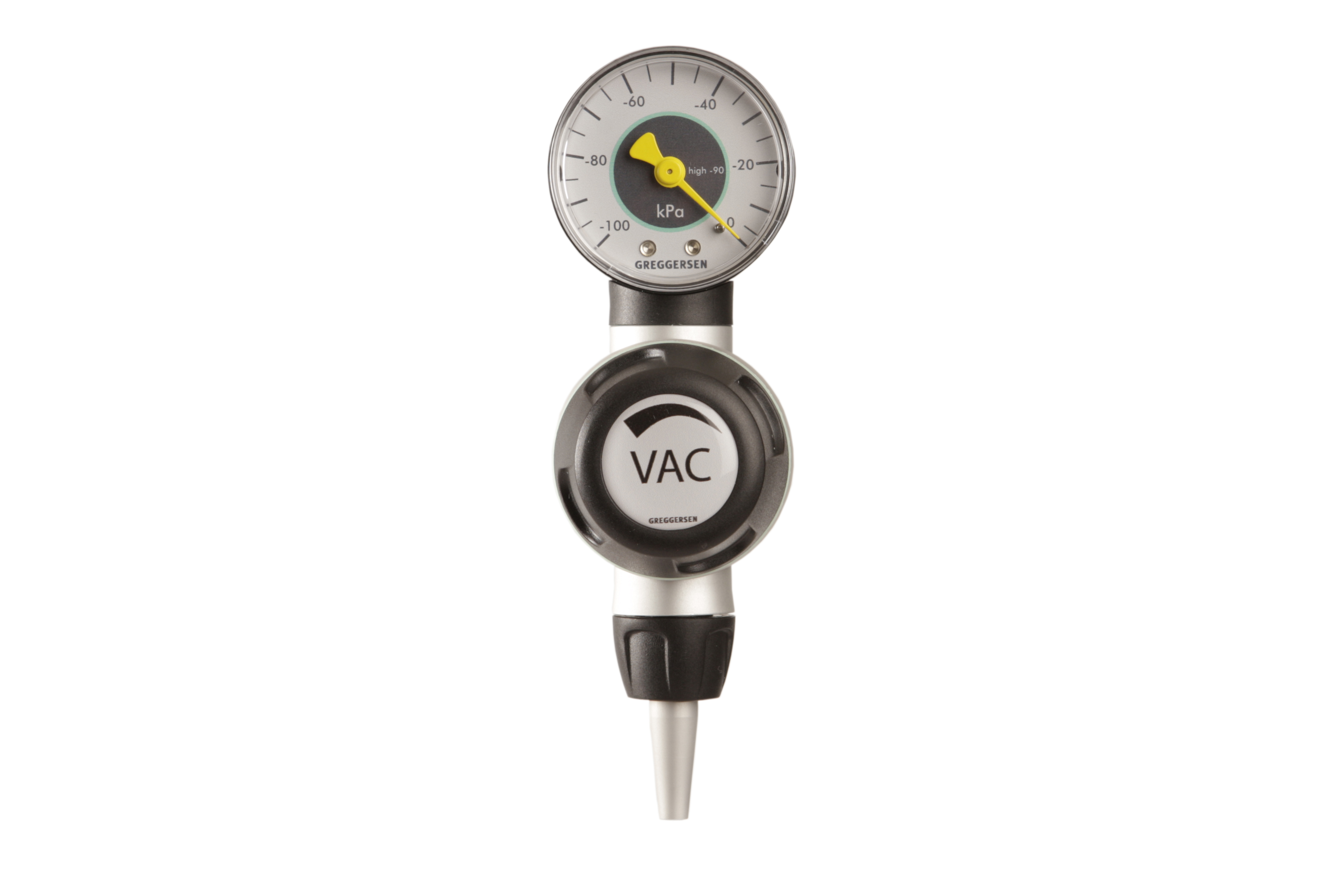

Vac Reg Skua 2.0 -90, AIR,PLUG,DIN
Skua -90, AIR, DIN - PLUG-IN DEVICE - Gas type: med. compressed air / AIR Performance: adjustable between 0 and -85 kPa Inlet pressure: 400…500 kPa(*) Inlet: Probe according to DIN 13260-2 Material: Housing: Aluminium, anodised Handwheel: Plastic Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1.
Vac. Reg. Skua 2.0 -30,AIR,PROBE,DIN
Skua -30, AIR, DIN - PLUG-IN UNIT - Gas type: med. compressed air / AIR Output: adjustable between 0 and -30 kPa Inlet pressure: 400…500 kPa(*) Inlet: Probe according to DIN 13260-2 Material: Housing: Aluminium, anodised Handwheel: Plastic Flow rate: > 20 l Freeflow/min (**) Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1. (**) Tolerance ± 10%; inlet pressure 500 kPa, performance depends on inlet pressure.
Vacuum Reg. Pirol 2.0 -30,VAC,PROBE,DIN
Pirol -30, DIN - PROBE UNIT - Gas type: Vacuum / VAC Capacity: adjustable between 0 and -30 kPa Supply pressure: -40 ... -99 kPa (*) Inlet: DIN probe according to DIN 13260 Material: Housing: aluminium, anodised; Handwheel: plastic; Probe tip: stainless steel Control range: 0 to -30 kPa (**) Capacity: > 20 l freeflow/min(**) Outlet: 9/16-18 UNF with vacuum nozzle (*) The pipeline system must comply with DIN EN ISO 7396-1 (**) Tolerance ± 10%; supply pressure -90 kPa, capacity depends on supply pressure When used in the low-vacuum range from 0… -10 kPa, the deviation due to supply pressure is approx. 30%
Vacuum Reg. Pirol 2.0 -30,VAC,RAIL,CH
Pirol -30, Rail, NIST - RAIL DEVICE CH - -> With special, spring-loaded rail clamp for rails up to 50mm <- Gas type: Vacuum / VAC Performance: adjustable between 0 and -30 kPa Medical vacuum regulator for dosing vacuum. With 360° rotatable pressure gauge; large, ergonomic adjustment handwheel; rail device incl. spring-loaded rail clamp for attachment to equipment rails > 25x10mm. The gas inlet is integrated into the rail clamp (NIST). The adjustment mechanism allows for stepless, precise and intuitive vacuum control. The rotatable pressure gauge allows the user to read the set value from an optimal viewing angle. The regulator unit meets the requirements of DIN EN ISO 10079-3 (high vacuum / high flow). Gas type: Vacuum / VAC Inlet pressure: -40 ... -99 kPa(*) (*) The central supply system should at least comply with DIN EN ISO 7396-1. Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: Aluminium, anodised Handwheel: Plastic Rail clamp: Aluminium, anodised Regul. range: 0 to -30 kPa(*) Performance: >20 l Freeflow/min(*) Outlet: 9/16-18 UNF with vacuum nozzle (*) Tolerance ± 10%; Inlet pressure -90 kPa, performance depends on inlet pressure (*) When used in low-vacuum range of 0... -10 kPa, inlet pressure dependency deviation is approx. 30%
Vacuum Reg. Pirol 2.0 -30,VAC,RAIL,NIST
Pirol -30, NIST - RAIL-MOUNTED UNIT - Gas type: Vacuum / VAC Performance: adjustable between 0 and -30 kPa Inlet pressure: -40 ... -99 kPa (*) Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: aluminium, anodised, Handwheel: plastic, Rail clamp: aluminium, anodised Control range: 0 to -30 kPa (**) Performance: > 20 l Freeflow/min (**) Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1 (**) Tolerance ± 10%; inlet pressure -90 kPa, performance depends on inlet pressure When used in the low-vacuum range of 0... -10 kPa, the inlet pressure dependency deviation is approx. 30%
Vacuum Reg. Pirol 2.0 -90,VAC,PLUG,DIN
Pirol -90, DIN - PLUG-IN UNIT - Gas type: Vacuum / VAC Capacity: adjustable between 0 and -90 kPa Inlet pressure: -40 ... -99 kPa (*) Inlet: DIN probe according to DIN 13260 Material: Housing: aluminium, anodised, Handwheel: plastic, Probe front part: stainless steel Control range: 0 to -90 kPa(**) Flow rate: > 20 l freeflow/min (*) Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1 (**) Tolerance ± 10%; Inlet pressure -90 kPa, performance depends on inlet pressure
Vacuum Reg. Pirol 2.0 -90,VAC,PROBE,CAR
Vacuum regulator Pirol -90, VAC, CARBA - DIRECT PLUG-IN UNIT - Gas Type: Vacuum / VAC Capacity: adjustable between 0 and -90 kPa Medical vacuum regulator for vacuum dosing. With 360° rotating pressure gauge; large, ergonomic adjustment handwheel; direct plug-in unit for coupling directly into a CARBAMED terminal unit. The adjustment mechanism allows for continuous, precise and intuitive vacuum control. The rotating pressure gauge enables the user to read the set value from an optimal viewing angle. The PIROL regulator units meet the requirements of EN ISO 10079-3 (high vacuum / high flow). Gas Type: Vacuum / VAC Inlet Pressure: -40 ... -99 kPa (²) Inlet: CARBAMED probe according to SN ENV 737-6:2005 Design: Spring-loaded diaphragm regulator Material: Housing: Aluminium, anodised Handwheel: PA plastic Diaphragm: Silicone Probe: Brass, chrome-plated Control Range: 0 to -90 kPa ± 10% (³) Capacity: > 20 l freeflow/min at -90 kPa (³) Outlet: 9/16-18 UNF with vacuum nozzle (²) The central supply system should at least comply with DIN EN ISO 7396-1. (³) Tolerance ± 10%; inlet pressure -90 kPa, capacity depends on inlet pressure. Control range and capacity are highly dependent on the pre-vacuum from the central supply system. At least DIN EN ISO 7396-1 should be met to ensure proper operation.
Vacuum Reg. Pirol 2.0 -90,VAC,RAIL,CH
Pirol -90, Rail, NIST - RAIL-MOUNTED UNIT - -> With special, spring-loaded rail clamp for up to 50mm rails <- Gas type: Vacuum / VAC Performance: adjustable between 0 and -90 kPa Medical vacuum regulator for dosing vacuum. With 360° rotating pressure gauge; large, ergonomic adjustment Handwheel; rail unit incl. spring-loaded rail clamp for fastening to equipment rails > 25x10mm. The gas inlet is integrated into the rail clamp (NIST). The adjustment mechanism allows for stepless, accurate and intuitive vacuum control. The rotating pressure gauge allows the user to read the set value from an optimal viewing angle. The regulator unit meets the requirements of DIN EN ISO 10079-3 (high vacuum /high flow). Gas type: Vacuum / VAC Inlet pressure: -40 ... -99 kPa(*) (*) The central supply system should at least comply with DIN EN ISO 7396-1. Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: Aluminium, anodised Handwheel: Plastic Rail clamp: Aluminium, anodised Control range: 0 to -90 kPa(*) Performance: >20 l Freeflow/min(*) Outlet: 9/16-18 UNF with vacuum nozzle (*) Tolerance ± 10%; Inlet pressure -90 kPa, performance depends on inlet pressure
Vacuum Reg. Pirol 2.0 -90,VAC,RAIL,NIST
Pirol -90, NIST - RAIL-MOUNTED UNIT - Gas type: Vacuum / VAC Output: adjustable between 0 and -90 kPa Inlet pressure: -40 ... -99 kPa (*) Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: aluminium, anodised, handwheel: plastic, rail clamp: aluminium, anodised Control range: 0 to -90 kPa(**) Output: > 20 l freeflow/min (*) Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1 (**) Tolerance ± 10%; inlet pressure -90 kPa, output depends on inlet pressure
Vacuum Reg. Skua 2.0 -30,AIR,RAIL,NIST
Skua -30, AIR, NIST - RAIL-MOUNTED UNIT - Gas type: med. compressed air / AIR Output: adjustable between 0 and -30 kPa Inlet pressure: 400… 500 kPa(*) Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: aluminium, anodised; handwheel: plastic; Rail clamp: aluminium, anodised Performance: > 20 l freeflow/min (**) Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1. (**) Tolerance ± 10%; inlet pressure 500 kPa, performance depends on inlet pressure.
Vacuum Reg. Skua 2.0 -90,AIR,RAIL,NIST
Skua -90, AIR, NIST - RAIL-MOUNTED UNIT - Gas type: med. compressed air / AIR Performance: adjustable between 0 and -85 kPa Inlet pressure: 400… 500 kPa (*) Inlet: NIST housing according to DIN EN ISO 18082 Material: Housing: aluminium, anodised, Handwheel: plastic, Rail clamp: aluminium, anodised Control range: 0 to -85 kPa ± 10% Performance: > 20 l freeflow/min Outlet: 9/16-18 UNF with vacuum nozzle (*) The central supply system must comply with DIN EN ISO 7396-1
Vacuum Regulator High-Spatz -90 Plug DIN
Vacuum regulator High-SPATZ-90, VAC, DIN probe - DIRECT-COUPLED UNIT - Gas type: Vacuum / VAC Performance: adjustable between 0 and -85 kPa (0 to -0.85 bar) Medical vacuum regulator, with vacuum gauge, fine control and quick-acting valve, for direct connection into a terminal unit DIRECT-COUPLED UNIT Gas type: Vacuum / VAC Connection: Probe according to DIN 13260 Part 2 Outlet: Vacuum nozzle Performance: adjustable between 0 and -85 kPa (0 to -0.85 bar)

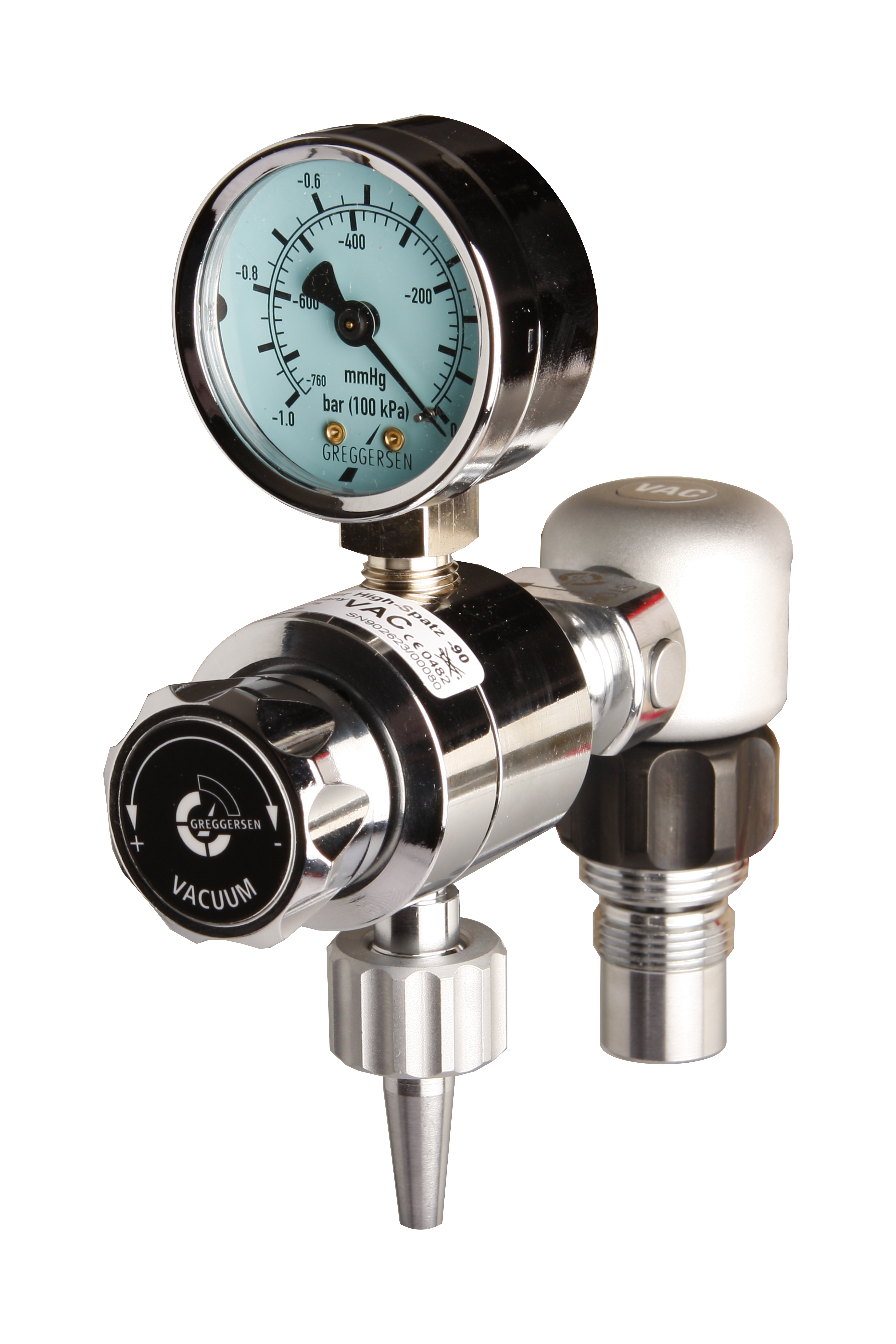

Vacuum Regulator High-Spatz -90 Rail NIST
Vacuum Regulator High-SPATZ-90, VAC, Rail NIST - RAIL MOUNTED DEVICE - Gas type: Vacuum Performance: adjustable between 0 and -85 kPa (0 to -0.85 bar) Medical vacuum regulator, with vacuum gauge, fine adjustment and quick-acting valve, for attachment to an equipment rail (25x10mm) Required accessories for operation: Low-Pressure Hose VAC with NIST outlet (not included in delivery) RAIL MOUNTED DEVICE Gas type: Vacuum Connection: NIST housing according to DIN EN ISO 18082 Outlet: Vacuum nozzle Performance: adjustable between 0 and -85 kPa (0 to -0.85 bar)
Safe and precise vacuum regulation.
Greggersen vacuum regulators allow for the precise setting of the required vacuum for medical suction applications. They are a central component of modern vacuum systems and contribute significantly to patient safety and efficient workflows. Our vacuum regulators offer stable control characteristics, high reliability and ergonomic operation.
