Suction

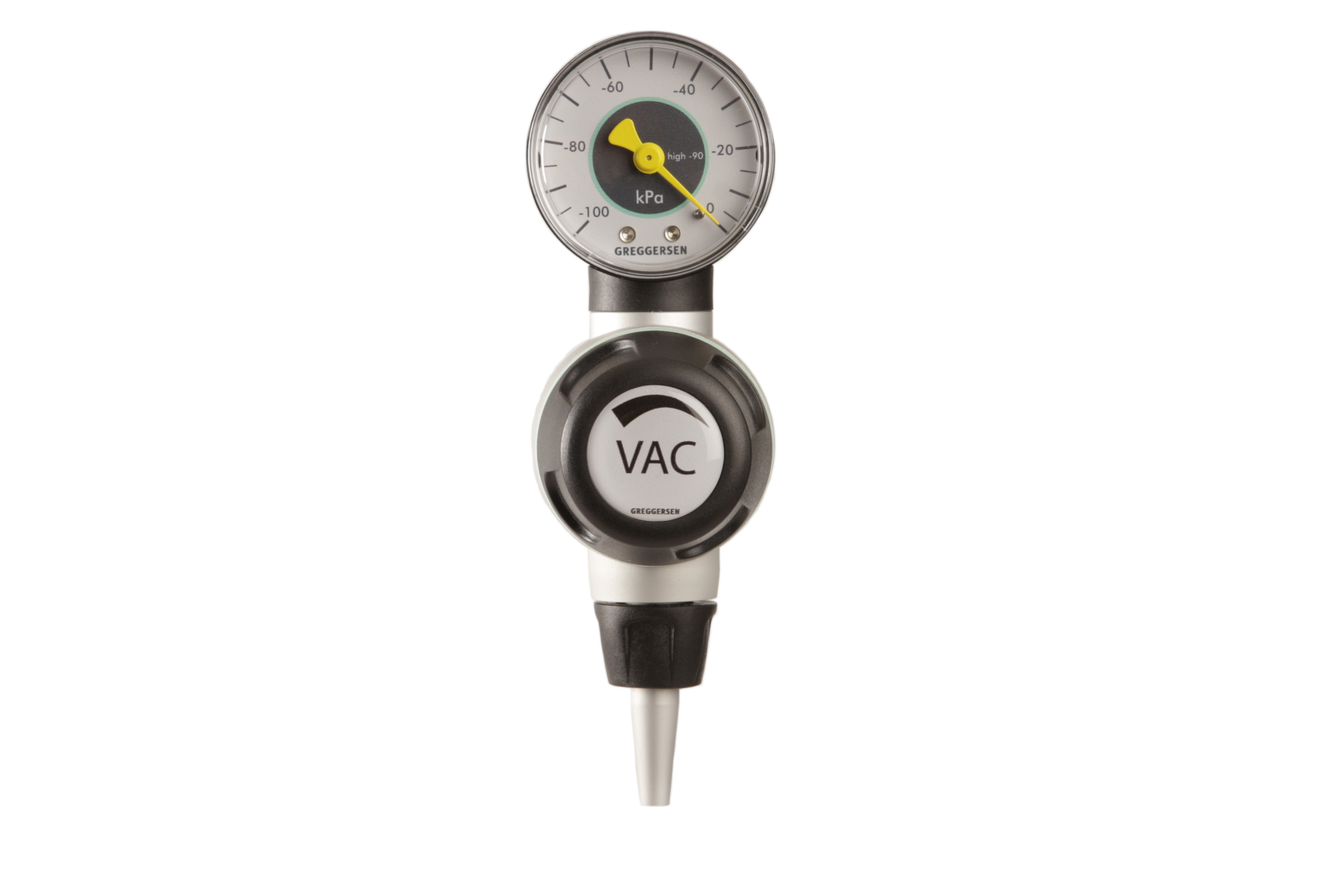

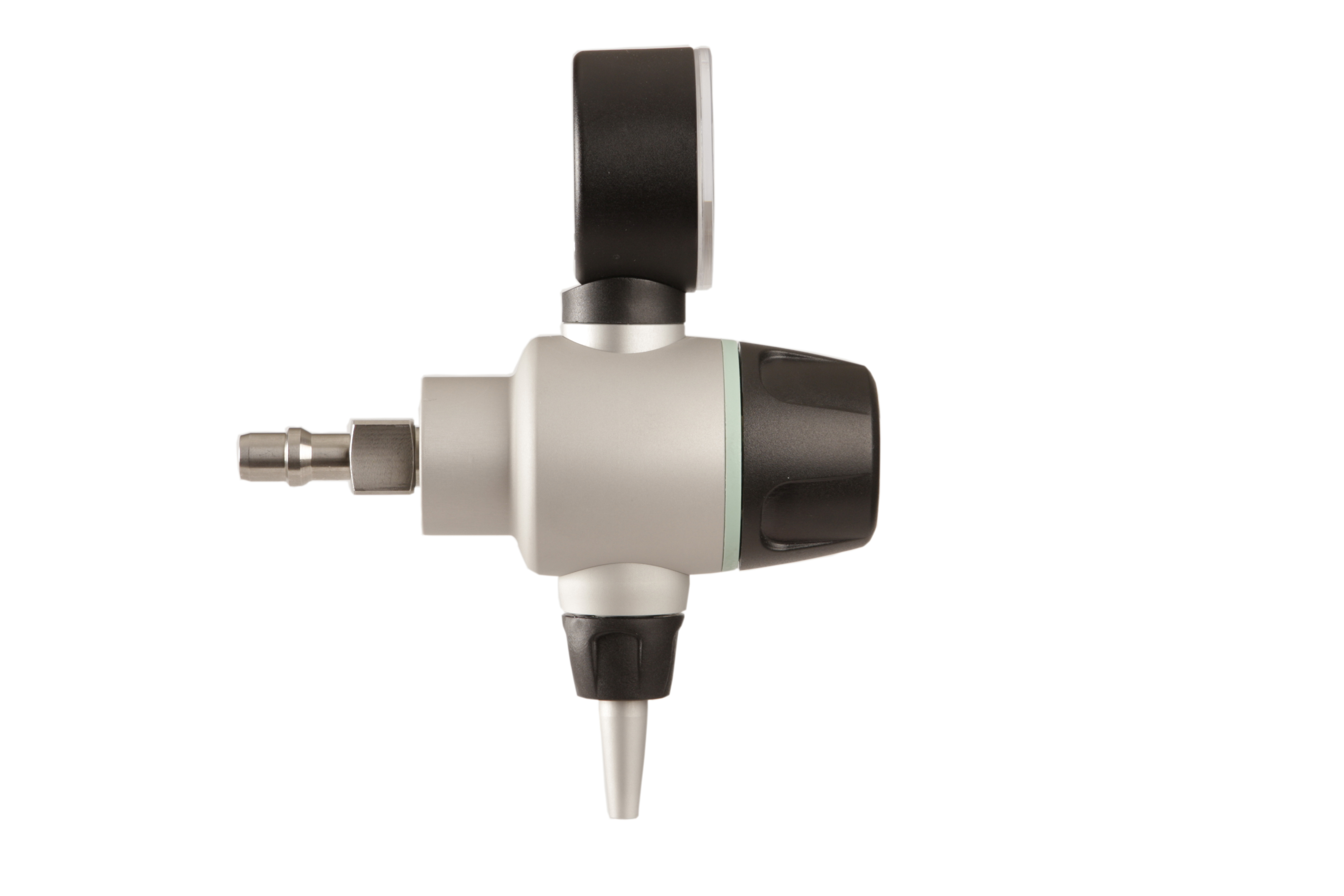

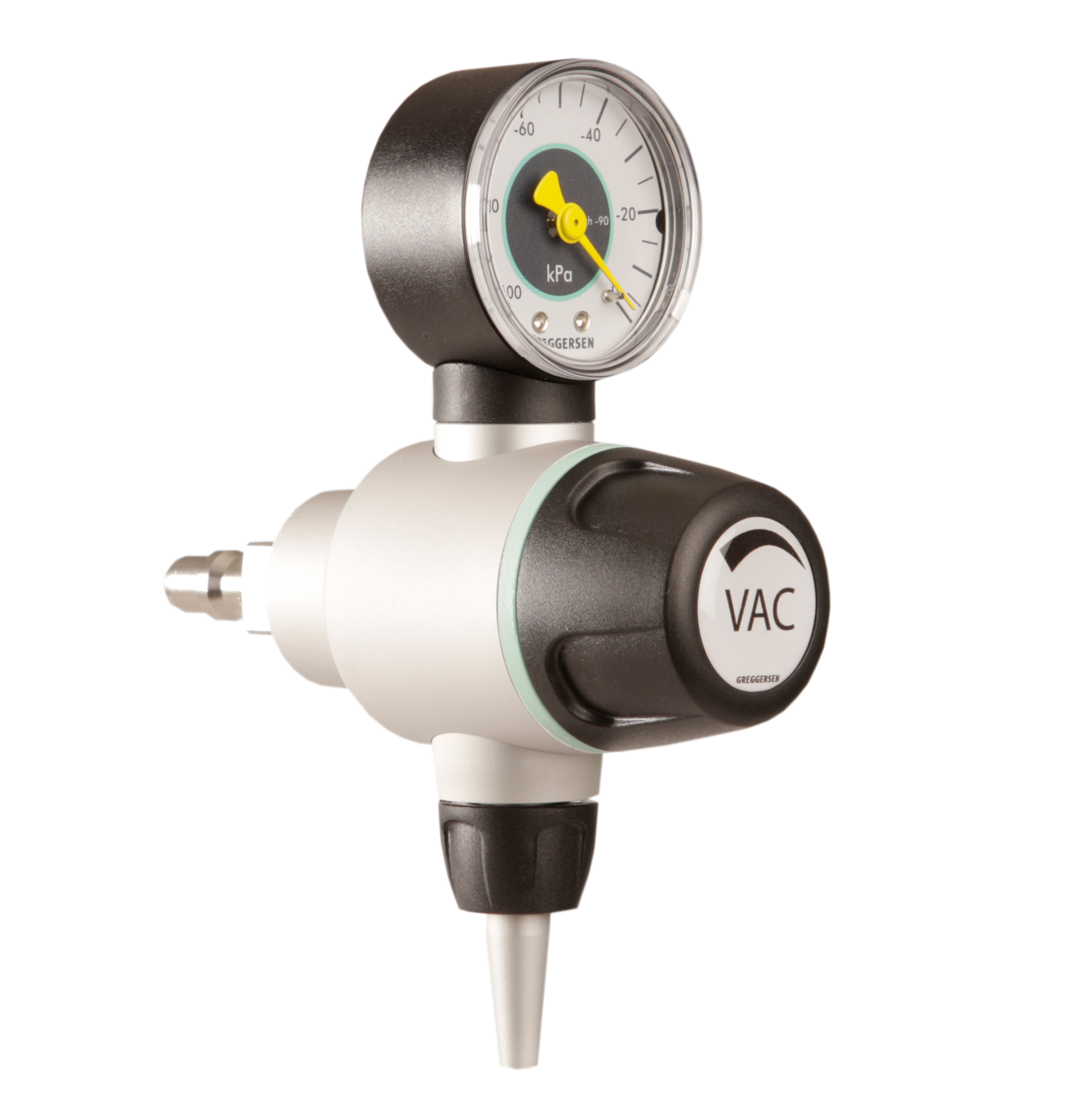

Vacuum Reg. Pirol 2.0 -90,VAC,PLUG,DIN

€255.60

Pirol -90, DIN
- PLUG-IN UNIT -

Gas type: Vacuum / VAC
Capacity: adjustable between 0 and -90 kPa
Inlet pressure: -40 ... -99 kPa (*)

Inlet: DIN probe according to DIN 13260
Material: Housing: aluminium, anodised, Handwheel: plastic,
Probe front part: stainless steel
Control range: 0 to -90 kPa(**)
Flow rate: > 20 l freeflow/min (*)
Outlet: 9/16-18 UNF with vacuum nozzle

(*) The central supply system must comply with DIN EN ISO 7396-1
(**) Tolerance ± 10%; Inlet pressure -90 kPa, performance depends on inlet pressure
Product Number: 904604
Greggersen
