Terminal Units
Forano, Front Part, DIN, O2 93, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 - Gas Type: O2 93 Labelling: O2 93 Gas-specific socket for mounting on FORANO base block. Socket according to DIN 13260 Part 2 with park and operating position. Release via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - white) Release ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: O2 93 Labelling: O2 93 Colour coding: according to ISO 9170-1 (white) Front diameter: Ø 42mm Scope of Delivery: - gas-specific socket - release ring incl. printed labelling - cartridge with sealing elements
Forano, Rear Part, UP/HW, DIN, O2
Terminal Forano Base Block (Rear Part) DIN/AGA/NF Gas-specific base block for installation in solid walls (flush mounting) or in cavity walls. Installation housing with threaded ring for subsequent height adjustment (up to 25 mm). Base block with brazed copper pipe; integrated non-return and maintenance valve. Scope of delivery: - Gas-specific base block with Cu pipe - Installation housing with height adjustment - Chimney (to protect the Cu pipe) - Dust protection caps Technical Data: Gas type: Oxygen / O2 Installation type: Flush/cavity wall mounting Inlet: Cu pipe 8x1 mm straight, top

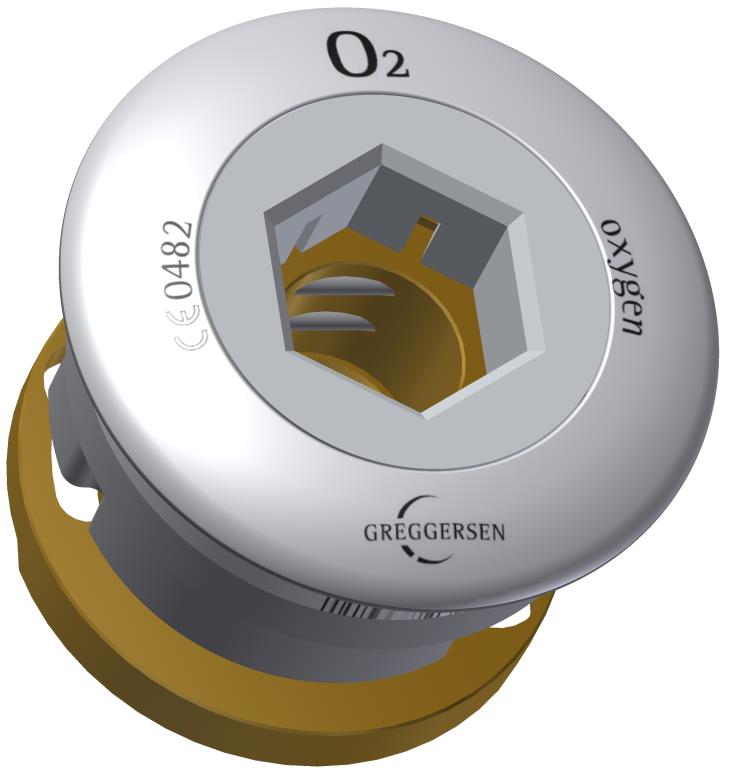

Forano, Front Part, DIN, O2, ISO
Terminal FORANO - Front Part DIN ISO 32 - Version III from 08/2019 Gas Type: Oxygen / O2 Labelling: oxygen / O2 Gas-specific socket for mounting on FORANO Rear Part. Socket according to DIN 13260 Part 2 with park and operating position. Release via push ring. Colour Coding: acc. to DIN EN ISO 9170-1 (ISO32 - white) Push Ring Labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: Oxygen / O2 Labelling: oxygen / O2 Colour Coding: acc. to ISO 9170-1 (white) Front Diameter: Ø 42mm Scope of Delivery: - gas-specific socket - push ring incl. printed label - cartridge with sealing elements
Forano, Front Part, DIN, AIR, ISO
Terminal Units FORANO - Front Part DIN ISO 32 - Version III from 08/2019 Gas Type: Compressed Air / AIR Labelling: medical air / AIR Gas-specific socket for mounting on FORANO back part. Socket according to DIN 13260 Part 2 with parking and operating position. Release via pressure ring. Colour coding: acc. to DIN EN ISO 9170-1 (ISO32 - black/white) Pressure ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: Compressed Air / AIR Labelling: medical air / AIR Colour coding: acc. to ISO 9170-1 (black/white) Front diameter: Ø 42mm Scope of Delivery: - gas-specific socket - pressure ring incl. printed labelling - cartridge with sealing elements
Forano, front part, DIN, VAC, ISO
Terminal FORANO - Front Part DIN ISO 32 - Version III from 08/2019 Gas type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket for mounting to FORANO back part. Socket according to DIN 13260 Part 2 with park and operating position. Release via push ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - yellow) Push ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: according to ISO 9170-1 (yellow) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - push ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, DIN, AIR-800, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 - Gas Type: AIR-800 Labelling: AIR-800 Gas-specific socket for mounting on Base Part FORANO. Socket according to DIN 13260 Part 2 with parking and operating position. Release via release ring. Colour Coding: according to DIN EN ISO 9170-1 (ISO32 - black-white) Release Ring Labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: AIR-800 Labelling: AIR-800 Colour Coding: according to ISO 9170-1 (black-white) Front Diameter: Ø 42mm Scope of Delivery: - gas-specific socket - release ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, DIN, N2, neutral
Terminal Unit FORANO - Front Part DIN colour-neutral Gas type: N2 Labelling: N2 Gas-specific socket for mounting on Base Part FORANO. Socket according to DIN 13260 Part 2 with park and operating position. Release via pressure ring. Colour coding: Colour-neutral (black) Pressure ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas type: N2 Labelling: N2 Colour coding: colour-neutral (black) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - pressure ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, DIN, AIR-800, neut
Terminal Unit FORANO - Front Part DIN colour-neutral Gas Type: AIR-800 Labelling: AIR-800 Gas-specific socket for mounting on Rear Part FORANO. Socket according to DIN 13260 Part 2 with park and operating position. Release via release ring. Colour coding: Colour-neutral (black) Release ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: AIR-800 Labelling: AIR-800 Colour coding: colour-neutral (black) Front diameter: Ø 42mm Scope of Delivery: - gas-specific socket - release ring incl. printed label - cartridge with sealing elements
Forano, Front Part, AGA, O2, ISO
Terminal FORANO - Front Part AGA Gas Type: Oxygen / O2 Labelling: oxygen / O2 Gas-specific socket for mounting on Base Part FORANO. Design complies with DIN EN ISO 9170-1 Socket according to SS 87 524 30 Release via pressure ring. Colour coding according to ISO 32. Pressure ring labelling: printed Cartridge incl. sealing elements Technical Data: Gas Type: Oxygen / O2 Labelling: oxygen / O2 Colour Coding: ISO 32 Front Diameter: Ø 42mm Scope of Delivery: - gas-specific socket - pressure ring incl. printed label - cartridge with sealing elements
Forano, Front Part, DIN, O2 93, neut
Terminal FORANO - front part DIN colour-neutral Gas type: O2 93 Labelling: O2 93 Gas-specific socket for mounting on back part FORANO. Socket according to DIN 13260 Part 2 with park and operating position. Release via pressure ring. Colour coding: Colour-neutral (black) Pressure ring labelling: printed Language: English Cartridge incl. sealing elements Technical data: Gas type: O2 93 Labelling: O2 93 Colour coding: colour-neutral (black) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - pressure ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, AGA, AIR, ISO
Terminal unit FORANO - Front element AGA Gas type: Medical air / AIR Labelling: medical air / AIR Gas-specific socket for mounting on back element FORANO. Design complies with DIN EN ISO 9170-1; Socket according to SS 87 524 30 Release via push ring. Colour coding according to ISO 32. Push ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Medical air / AIR Labelling: medical air / AIR Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - push ring incl. printed label - cartridge with sealing elements
Forano, Front Part, BS, O2, ISO
Terminal Unit FORANO - Front Part BS Gas type: Oxygen / O2 Labelling: oxygen / O2 Gas-specific socket for mounting on FORANO back part. Socket according to BS 5682 Release via pressure ring. Colour coding: Coloured socket according to DIN EN ISO 9170-1 (ISO32). Pressure ring labelling: printed Cartridge incl. sealing elements Technical Data: Gas type: Oxygen / O2 Labelling: oxygen / O2 Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of Delivery: - gas-specific socket - pressure ring incl. printed label - cartridge with sealing elements
Forano, Front Part, BS, VAC, ISO
Terminal unit FORANO - Front part BS Gas type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket for mounting on base block FORANO. Socket according to BS 5682. Release via push ring. Colour coding: Socket coloured according to DIN EN ISO 9170-1 (ISO32). Labelling push ring: printed Cartridge incl. sealing elements Technical data: Gas type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - push ring incl. printed labelling - cartridge with sealing elements
Forano, Front part, BS, MA, ISO
Terminal unit FORANO - Front part BS Gas type: Compressed air / MA Labelling: medical air / MA Gas-specific socket for mounting on base block FORANO. Socket according to BS 5682. Release via pressure ring. Colour coding: Socket coloured according to DIN EN ISO 9170-1 (ISO32). Pressure ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Compressed air / MA Labelling: medical air / MA Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of delivery: - Gas-specific socket - Pressure ring incl. printed labelling - Cartridge with sealing elements
Forano, Front Part, AGA, VAC, ISO
Terminal unit FORANO - Front Part AGA Gas type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket for mounting on back part FORANO. Design complies with DIN EN ISO 9170-1; Socket according to SS 87 524 30 Release via pressure ring. Colour coding according to ISO 32. Pressure ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - pressure ring incl. printed label - cartridge with sealing elements
Forano, Front Part, AGA, AGSS (Ejector), ISO
Terminal unit FORANO - Front part AGA Gas type: AGSS ( UTL) Labelling: AGSS / UTL Gas-specific socket for mounting on back part FORANO. Design complies with DIN EN ISO 9170-1; Socket according to SS 87 524 30 Release via pressure ring. Colour coding according to ISO 32. Pressure ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: AGSS ( UTL) Labelling: AGSS / UTL Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - gas-specific socket - pressure ring incl. printed labelling - cartridge with sealing elements
Airmotor connector
Airmotor connector Connector for compressed air tools with connection nozzles for supply and return Gas type: Compressed air / AIR Connection: to DIN 13260-2 Outlet: 23 mm flow nozzle
Airmotor Forano, flush-mounted/cavity wall
Airmotor FORANO for compressed air tools, with connection ports for compressed air 10 bar and return, stainless steel front plate, all-metal version flush and cavity wall mounting in stainless steel box
Airmotor Forano, DVE
Airmotor FORANO for pneumatic tools with connection pieces for compressed air 10 bar and recirculation, with 8 mm air hose nozzle and 15 mm exhaust nozzle with check valve for ceiling pendants
Airmotor Forano, rail
Airmotor FORANO for pneumatic tools with connection pieces for compressed air 10 bar and return, complete with mounting bracket and check valve Inlet: CU-pipe 8 mm Outlet: CU-pipe 15 mm for rail mounting
Airmotor Forano, surface-mounted
Airmotor FORANO for pneumatic tools with connection pieces for compressed air 10 bar and return, completely surface-mounted in housing. for surface mounting
Non-return valve air motor
Non-return valve for the air motor exhaust line Inlet: Ø15mm (outside) Outlet: Ø15mm (outside)
Forano, rear part, straight tube, DIN, O2
Terminal Unit FORANO - Base Part DIN / AGA / NF for installation in medical supply rails Gas type: Oxygen / O2 Inlet: Cu-tube 8x1mm straight, top Gas-specific base block for installation in supply rails or trunking systems. Base block with spacer and mounting bridge; brazed copper tube, integrated non-return and maintenance valve. Technical Data: Installation type: Medical supply rail Gas type: Oxygen / O2 Inlet: Cu-tube 8x1mm straight, top Front diameter: Ø 44 to 46mm (with cover ring) Scope of delivery: - gas-specific base block with Cu-tube - spacer (1x and mounting bridge) In future, base parts of terminal units will no longer be marked with a CE label. During the transition phase, deliveries may contain mixed variants – both with and without CE marking on the base part. The front parts of the terminal units will continue to be marked with the CE sign.

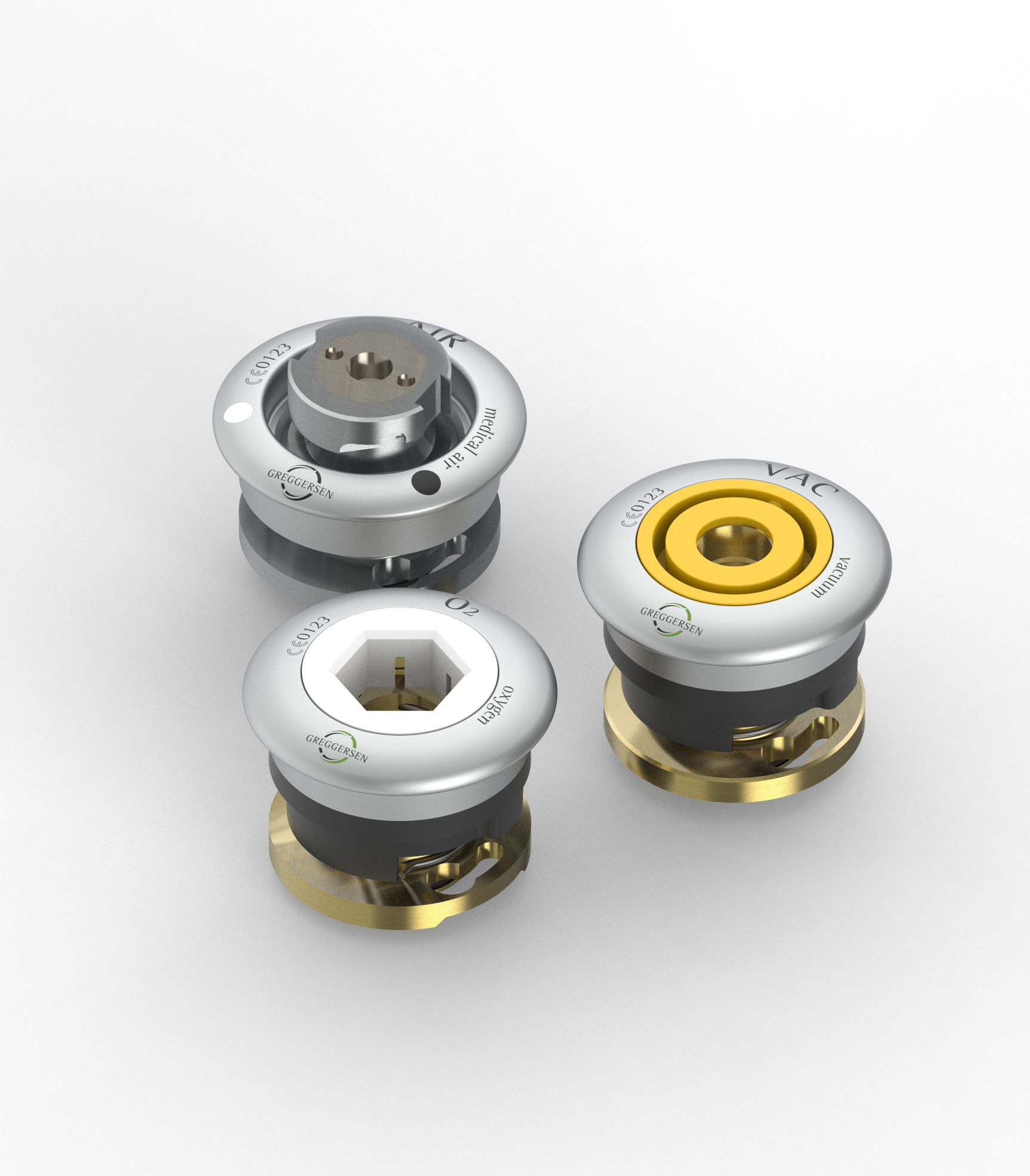

Reliable access to medical gases.
Our Forano medical terminal units represent the secure interface between the central gas supply and the medical device. They ensure standards-compliant, unambiguous and safe extraction of medical gases in sensitive care areas. Thanks to their robust design, clear gas identification and high connection precision, Forano terminal units offer maximum safety, durability and ease of use in everyday clinical practice.
