Low-Pressure Hose
Hose, O2, 0.55m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled probe with non-return valve, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: Probe according to DIN 13260 Part 2 Hose length: 0.55 m Colour code: Colour-neutral Outlet: gas-specific NIST screw connection
Hose, AIR, 1.5m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 90° connector with check valve, hose and NIST equipment connection Specification: Gas type: Compressed air / AIR Inlet: Connector according to DIN 13260 Part 2 Hose length: 1.5 m Colour coding: Neutral colour Outlet: gas-specific NIST screw connection
Hose, VAC, 1.5m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug, hose and NIST equipment connection Specification: Gas type: Vacuum / VAC Inlet: Plug according to DIN 13260 Part 2 Hose length: 1.5 m Colour coding: Colour-neutral Outlet: Gas-specific NIST screw connection
Hose, O2, 1.5m, MEDAP - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: MEDAP Hose length: 1.5 m Colour coding: Colour-neutral Outlet: gas-specific NIST screw connection
Hose, AIR, 1.5m, MEDAP - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug, hose and device connection NIST Specification: Gas type: Compressed air / AIR Input: MEDAP Hose length: 1.5 m Colour coding: Colour-neutral Outlet: gas-specific NIST screw connection
Hose, AIR, 3m, MEDAP - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug, hose and NIST equipment connection Specification: Gas type: Compressed air / AIR Inlet: MEDAP Hose length: 3 m Colour code: Neutral colour Outlet: gas-specific NIST screw connection
Hose, CO2, 3m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and NIST equipment connection Specification: Gas type: Carbon dioxide / CO2 Inlet: Plug according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Neutral Outlet: Gas-specific NIST screw connection
Hose, O2, 3m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled probe with non-return valve, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: Probe according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Colour-neutral Outlet: Gas-specific NIST screw connection
Hose, AIR, 2m DIN-NIST, fn angled
Special Low-Pressure Hose ++ MukoStar ++ Hose for supplying the device MukoStar with compressed air 5 bar from a terminal unit; Angled probe with hose with check valve, hose diameter 6.7mm and NIST device connection - 90° angled Specification: Gas type: medical air / AIR Inlet: Probe according to DIN 13260 Part 2 Hose length: 2 m Colour coding: Neutral Outlet: gas-specific NIST screw connection 90° angled
Hose, O2, 8m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: Plug according to DIN 13260 Part 2 Hose length: 8 m Colour coding: Colour-neutral Outlet: Gas-specific NIST screw connection

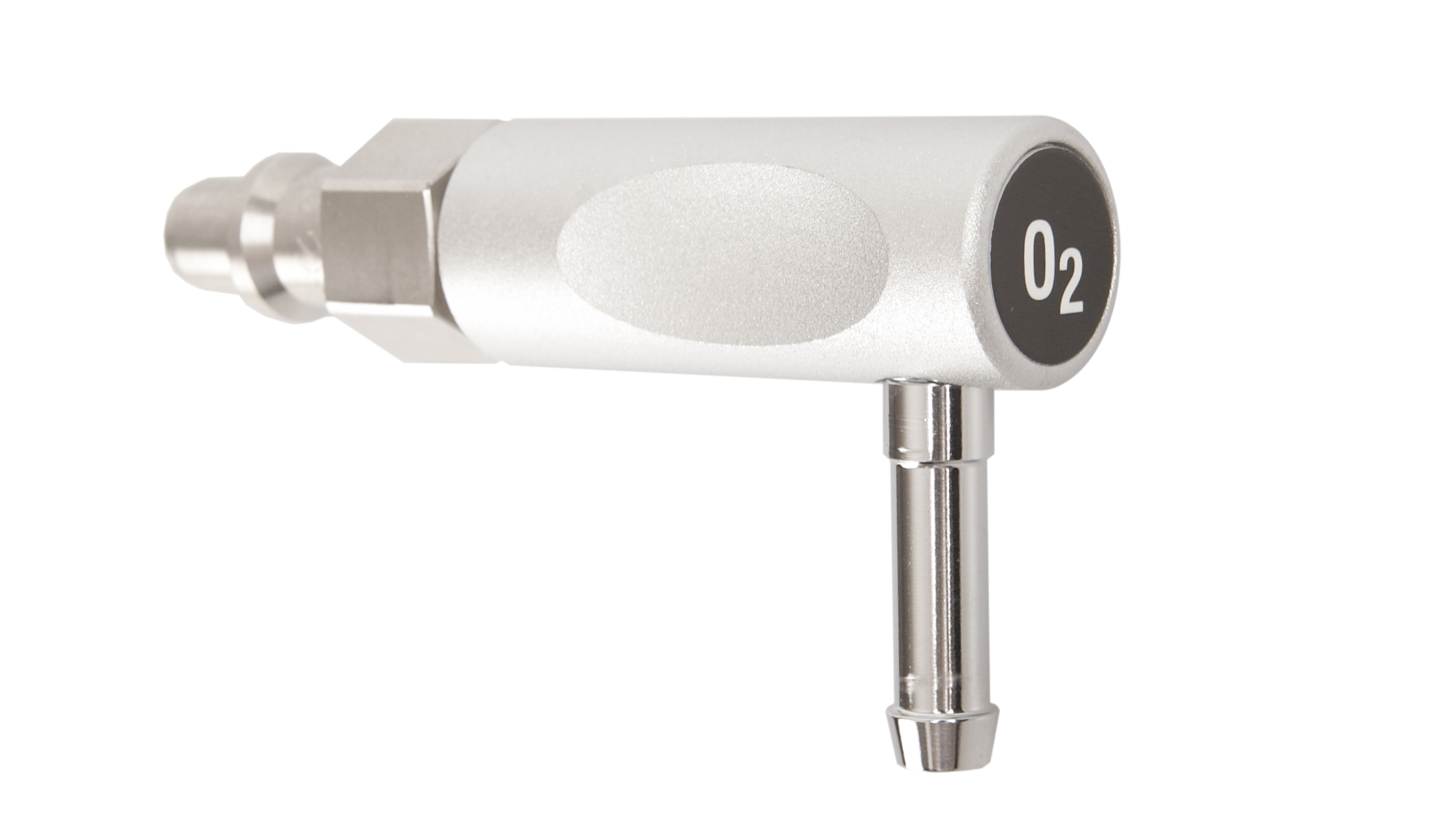

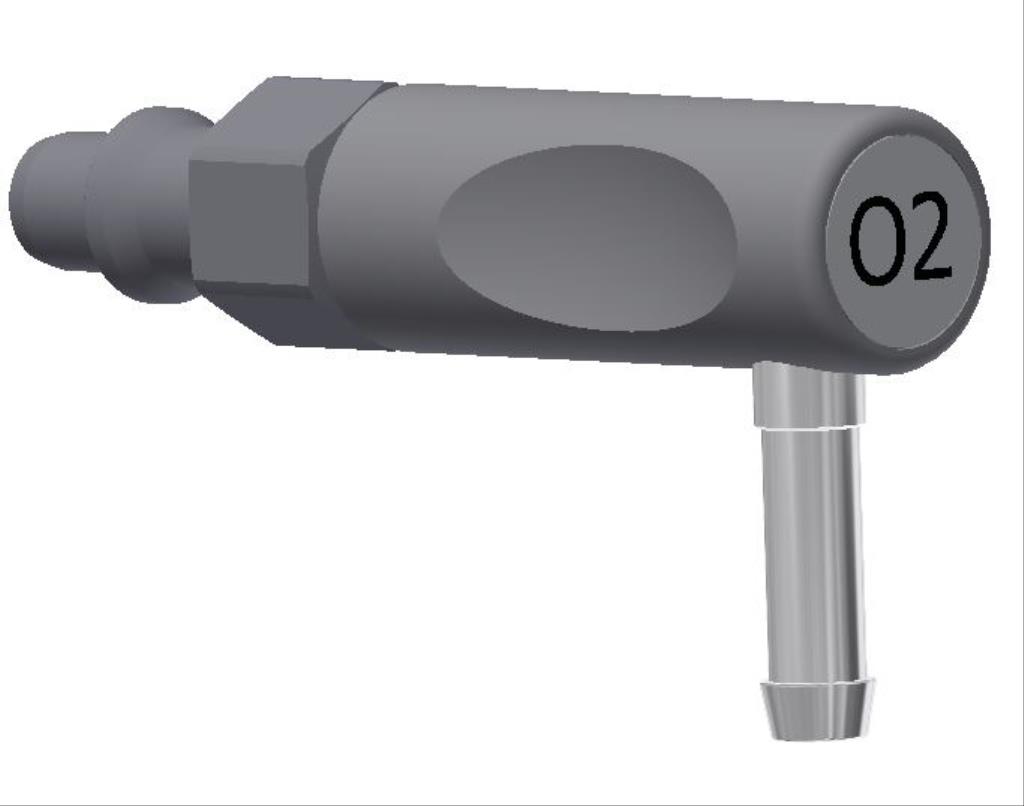

Angled Plug O2 Hose barb 7mm, DIN, ISO V4A
Angled plug for oxygen with 6 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: Oxygen / O2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (white)

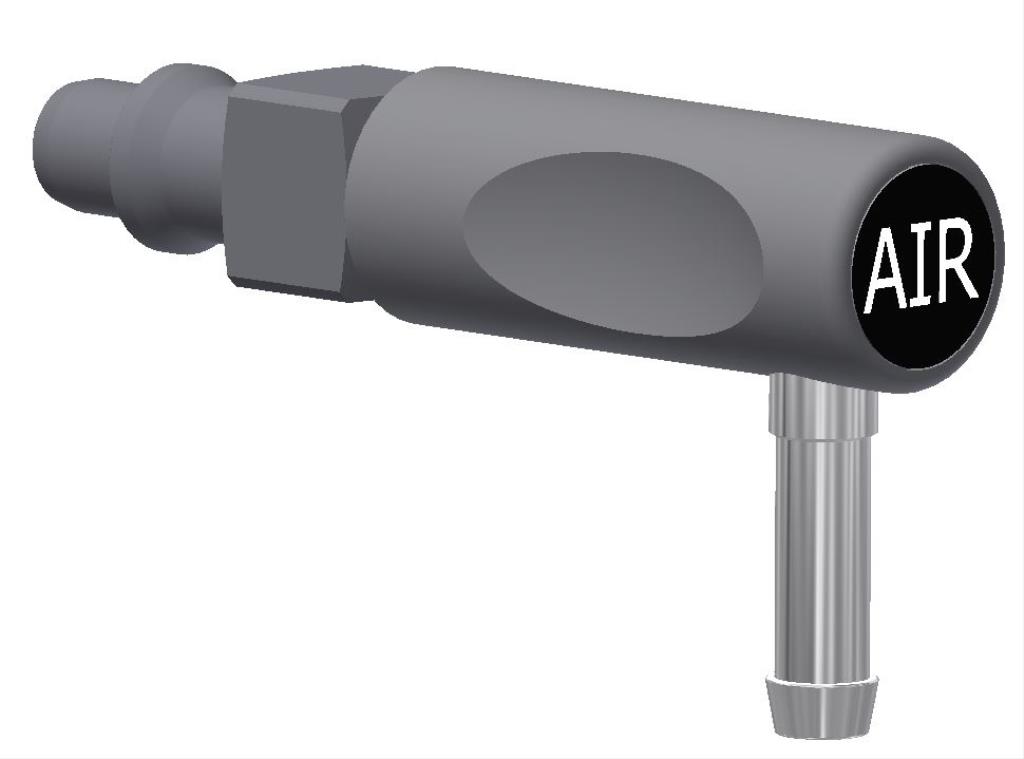

Angled plug AIR nozzle 7mm, DIN,ISO V4A
Angled plug for compressed air with 7 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: Compressed air / AIR Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (black/white)
Angled plug VAC nozzle 7mm, DIN,ISO V4A
Angled plug for vacuum with 7 mm nozzle Plug front made of 1.4404 (stainless steel) Gas type: Vacuum / VAC Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (yellow)
Angled plug N2O nozzle 7mm, DIN ISO V4A
Angled probe for nitrous oxide with 7 mm nozzle and check valve Probe front part made of 1.4404 (stainless steel) Gas type: Nitrous oxide / N2O Connection: Probe according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (blue)
Angled plug CO2, hose tail 7mm, DIN, ISO V4A
Angled plug for carbon dioxide with 7 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: carbon dioxide / CO2 Connection: plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (grey)
Hose, O2, 1.5m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled probe with check valve, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: Probe according to DIN 13260 Part 2 Hose length: 1.5 m Colour coding: Colour-neutral Outlet: Gas-specific NIST screw connection
Hose, CO2, 1.5m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and device connection NIST Specification: Gas type: Carbon dioxide / CO2 Inlet: Plug according to DIN 13260 Part 2 Hose length: 1.5 m Colour coding: Colour-neutral Outlet: gas-specific NIST screw connection
Med. Hose 6x12 white ISO O2
Connection hose for med. gases Colour coding: ISO O2 Reinforced hose, white Inner diameter: 6.7 +/- 0.15 mm Wall thickness: 3.0 +/- 0.2 mm PU: 100 metre roll
Hose, VAC, 3m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 90° connector, hose and device connection NIST Specification: Gas type: Vacuum / VAC Inlet: Connector according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Colour-neutral Outlet: gas-specific screw connection NIST
Hose, AIR, 3m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled probe with check valve, hose and device connection NIST Specification: Gas type: Compressed air / AIR Inlet: Probe according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Neutral Outlet: gas-specific screw connection NIST
Hose, AIR, 5m, BS - NIST, ISO
Low-pressure hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and device connection NIST Specification: Gas type: Compressed air / AIR Inlet: Plug according to BS 5682 Hose length: 5.0 m Colour coding: ISO 32 (black/white) Outlet: gas-specific screw connection NIST
HOSE, N2O, 3M, DIN - NIST, FN
Low-Pressure Hose according to DIN EN ISO 5359 Angled probe with non-return valve, hose and NIST equipment connection Specification: Gas type: Nitrous Oxide / N2O Inlet: Probe according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Colour neutral Outlet: Gas-specific NIST screw connection
Hose, AIR-800, 3m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and NIST equipment connection Specification: Gas type: AIR-800 (Triangle) Inlet: Plug according to DIN 13260 Part 2 Hose length: 3.0 m Colour coding: Neutral colour Outlet: Gas-specific NIST screw connection
Hose, O2, 5m, DIN - NIST, fn
Low-Pressure Hose according to DIN EN ISO 5359 Angled plug with non-return valve, hose and NIST equipment connection Specification: Gas type: Oxygen / O2 Inlet: Plug according to DIN 13260 Part 2 Hose length: 5.0 m Colour coding: Colour-neutral Outlet: Gas-specific NIST screw connection
Reliable low-pressure hoses for medical gases.
Our low-pressure hoses are gas-specific colour-coded according to ISO 32 and ensure secure, leak-free connections between terminal unit and device. They are available in various lengths and versions and are ideal for daily use in clinics and practices.
