Power supply Aeolus complete with housing Power supply Phoenix Contact Aeolus 24V STEP-PS/ 1AC/24DC/1.75 2868648 Connection: 100 V(AC) ... 240 V(AC), 45 ... 60 Hz Output: 24 V(DC), 1.75 A

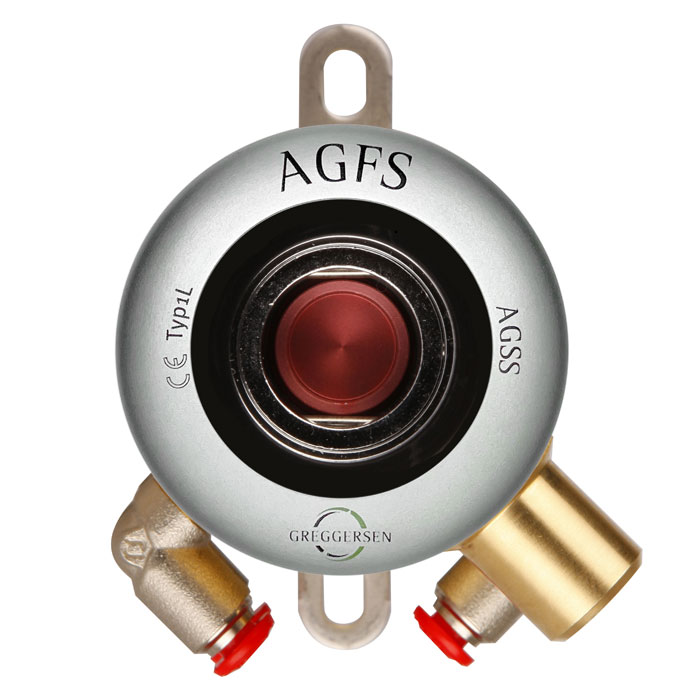

Airmotor FORANO for compressed air tools with connection port for compressed air 10 bar and return, with compressed air hose barb 8 mm and exhaust air hose barb 15 mm with non-return valve for ceiling pendants

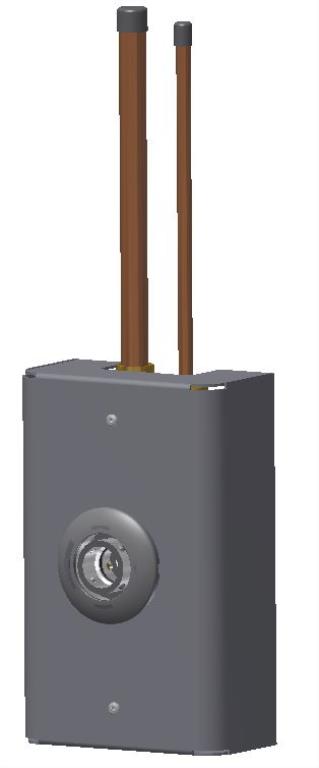

Airmotor FORANO for compressed air tools with connection ports for compressed air 10 bar and return, completely mounted in surface-mounted housing. for surface mounting

Airmotor Probe Probe for compressed air tools with connection nipples for supply and return Technical Data: Gas Type:     Compressed Air / AIR Connection: according to DIN 13260-2 Outlet:     23 mm Tubing Nipple

Airmotor FORANO for pneumatic tools, with connection ports for compressed air 10 bar and return line, stainless steel front plate, all-metal design Flush and cavity wall installation in stainless steel box

Airmotor FORANO for compressed air tools with connection sockets for compressed air 10 bar and return, complete with mounting bracket and non-return valve Inlet: Cu pipe 8 mm Outlet: Cu pipe 15 mm for rail installation

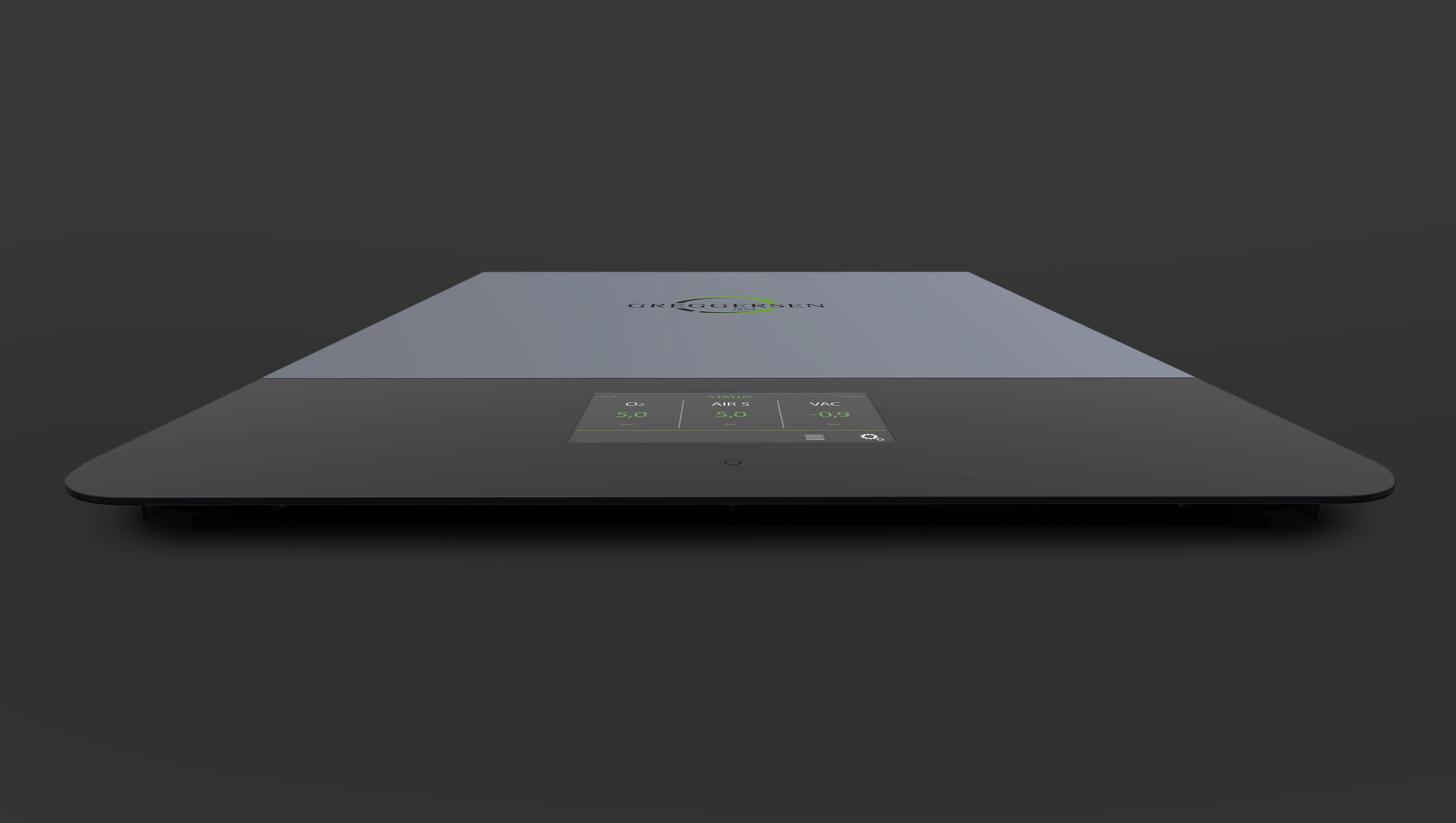

Area Monitor for separate connection to a valve box (sensors) or to the VENTUS valve box for alarm repetition. Digital display with 5" TFT touch screen Housing for surface-mounted installation Analogue sensor inputs (4-20 mA - 24 V): Channel 1 - Channel 2 - Channel 3 - Channel 4 - Channel 5 - Channel 6 - Digital inputs (potential-free - on/off signals): Channel 1 - Channel 2 - Channel 3 - Channel 4 - Channel 5 - Channel 6 - Channel 7 - Channel 8 - Optional: Relay module for forwarding alarm states to a BMS or another location. Relay module: Yes / No Repeater alarm configuration: Yes / No Network: activated / not activated Language: *** Alarm limits: Unit: bar Upper limit / lower limit O2, AIR, CO2, N2O;N2: 6.0 / 4.0 VAC: -0.4 / -1.0 AIR-800: 9.6 / 6.4 Technical data: Dimensions (width x height x depth): 390x190.5x85mm Power supply: 110 - 230V AC / 50-60Hz Power consumption: 500 mA Inputs: max. 6 analogue signals max. 8 digital signals Outputs: 1 onboard standard relay (normally open contact); Ethernet Relay rating: 30VDC (1A) / 125VAC (0.5A)

Automatic Manifold MediControl 2025E Flow rate: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Elec. connection: 230 V AC System language: German Mode: 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2025 1 x Pipe Set MC2025 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with plain text operating status and service messages, forwarding of messages via potential-free contacts, sensor-based pressure monitoring, 2-stage pressure reduction, 2nd stage duplicated, pneum. priority circuit in case of power failure, with pressure gauges and emergency supply facility (NIST), fully assembled on mounting plate incl. cover

Automatic Manifold MediControl 2025P Flow rate: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Gas type: +++++++++++++++ Consisting of: 1 x MC2025P 1 x Pipe set MC2025P Pneumatically controlled gas supply system for two-sided cylinder bank supply, design according to DIN EN ISO 7396-1, automatic changeover, priority control with lever, pressure gauge indication for both supply sources and line pressure, pressure monitoring with contact gauges, two-stage pressure reduction, second stage duplicated, with control pressure gauges, high-pressure and low-pressure contact gauges and emergency feed facility (NIST,) completely mounted on mounting plate, housing with Viewing Window

Automatic Manifold MediControl 2025R Flow Rate: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Electr. connection: 230 V AC System language: German Mode: 2 cylinder banks and reserve supply Gas type: +++++++++++++++ Consisting of: 1 x MC2025 1 x Set of pipes MC2025 + inlet pipe reserve Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with indication of operating status and service messages in plain text, forwarding of messages via potential-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage in dual design, pneum. priority switching in case of power failure, with pressure gauges and emergency feed facility (NIST), fully mounted on mounting plate incl. cover; incl. connection facility for reserve supply
