Area Control Units

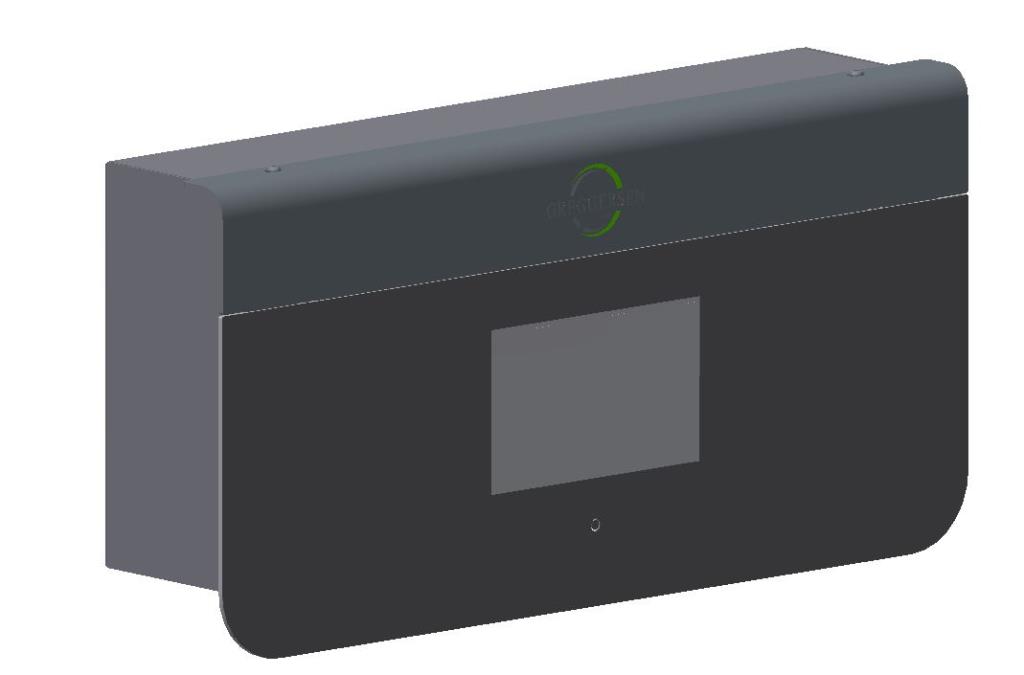

Bereichsmonitor CAS
area alarm unit for separate connection with valve box (sensors) or for connection with area alarm unit VENTUS valve box as repeater alarm. Digital display with touch screen 5 inch Casing for on-wall installation input analog sensors (4-20 mAh - 24 V): Line 1 - Line 2 - Line 3 - Line 4 - Line 5 - Line 6 - input digital (Volt free - on-/off-signals): Line 1 Line 2 - Line 3 - Line 4 - Line 5 - Line 6 - Line 7 - Line 8 - optional: relay module for onward transmission of alarm conditions to BMS or another place. relay module : yes / no Configuration repeater : yes / no Network : activated / not activated language : *** alarm settings unit : bar upper / lower limit O2, AIR, CO2, N2O,N2 : 6.0 / 4.0 VAC :-0,4 / -1,0 AIR-800 : 9.6 / 6.4 technical data: dimensions (width x height x depth) :390x190.5x85mm power supply :110 - 230V AC/ 50-60Hz power input :500 mA inlet : max.6 analog signals max.8 digital signals outlet :1 onboard relay standard (normally open contact); Ethernet capacity onboard relay :30VDC (1A) /125VAC(0.5A)
Relaismodul Basis
Relaismodul Basis additional relay module with 6 relays as an extension option. Potential-free contacts for a Forwarding to the building management system provided. For: Electronics Ventus evo (valve box) Electronics source manifold control Electronics Source monitor (QuM) / area monitor (BeM) Consisting of: - Connection cable to the base module - DIN rail module with 6 relays - assembly instructions

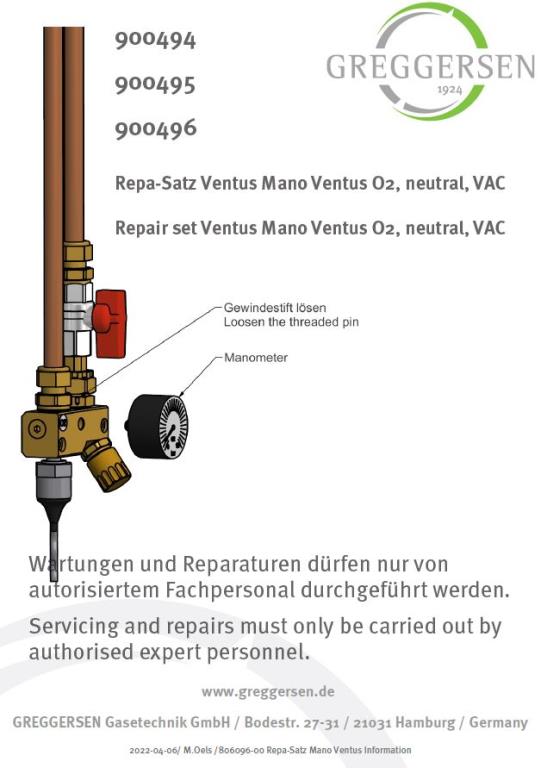

Repa-Satz Mano Ventus neutral
VENTUS service pack pressure gauge neutral (AIR, N2O, CO2, AIR-800) consisting of: pressure gauge 50 rd measurement range: 0-16 bar for neutral gases (AIR, N2O, CO2, AIR-800) casing: steel, black !! free of oil and grease incl. o-ring suitable for VENTUS valve block
Repa-Satz Mano Ventus O2
VENTUS service pack pressure gauge O2 consisting of: pressure gauge 50 rd measurement range: 0-16 bar for oxygen casing: steel, black !! free of oil and grease incl. o-ring suitable for VENTUS valve block
Repa-Satz Mano Ventus VAC
VENTUS (Basic, Basic Plus, Spy + Glass) service pack pressure gauge VAC -1 - 0 bar consisting of: pressure gauge 50 rd measurement range: -1 - 0 bar for Vacuum casing: steel, black incl. o-ring suitable for VENTUS valve block (Basic, Basic Plus, Spy + Glass)

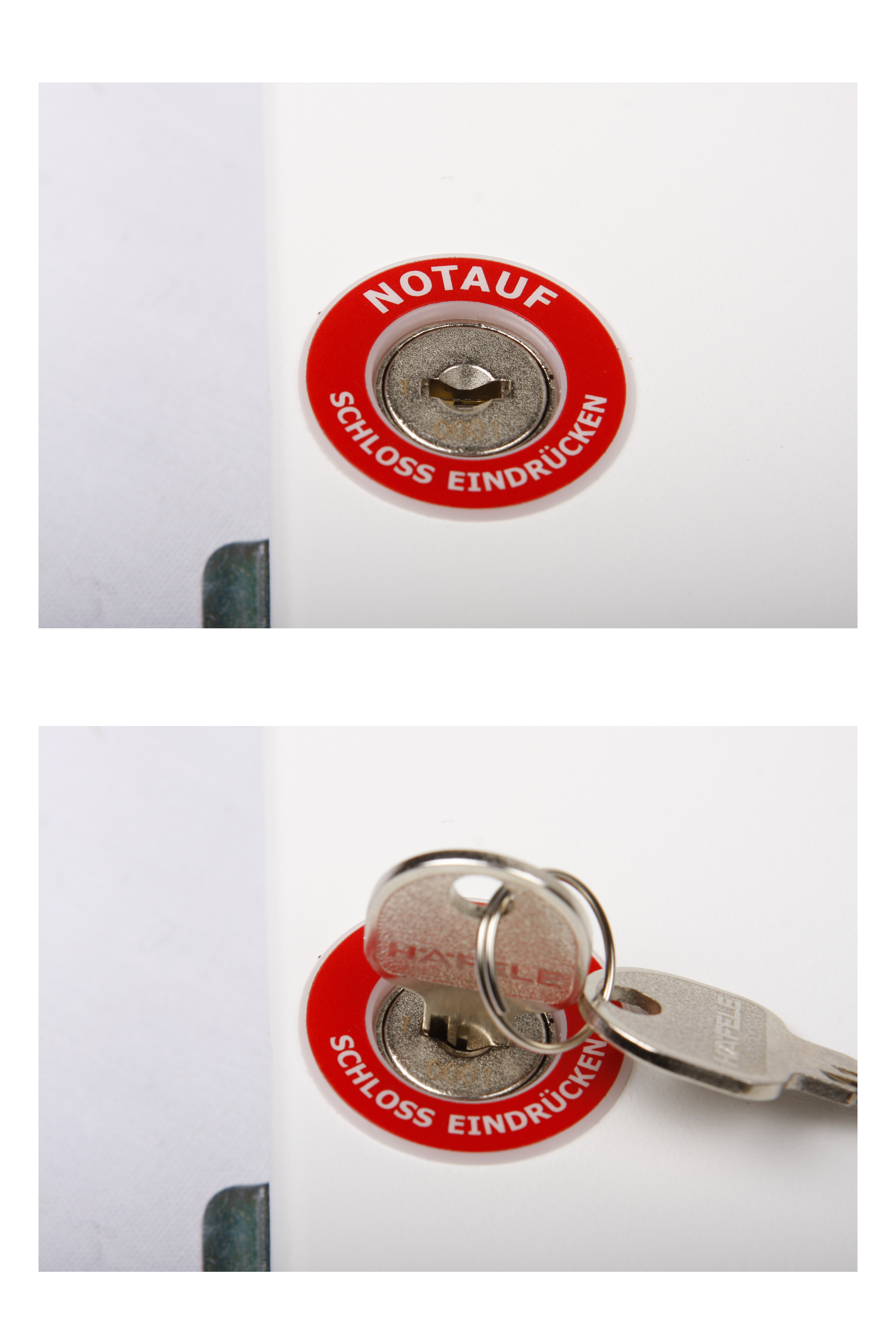

Sicherheitsschloss Ventus +2 Schlüssel
surcharge Ventus safety lock for Ventus with painted door The lock is installed in the door. The push button is omitted. The lock is supplied separately.

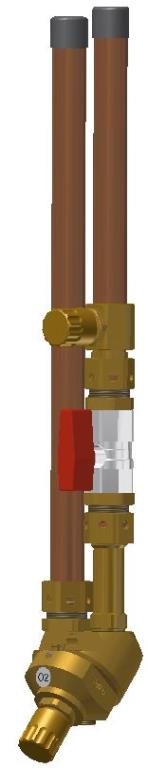

Ventus 22 mm Ventileinsatz +NIST AIR
valve insert for Ventus 22mm gas type: AIR according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge 0...16 bar - pressure sensor -1...6 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Ventus 22 mm Ventileinsatz +NIST AIR-800
valve insert for Ventus 22mm gas type: AIR-800 according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge 0...16 bar - pressure sensor 0...16 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Ventus 22 mm Ventileinsatz +NIST CO2
valve insert for Ventus 22mm gas type: CO2 according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge 0...16 bar - pressure sensor -1...6 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Ventus 22 mm Ventileinsatz +NIST N2O
valve insert for Ventus 22mm gas type: N2O according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge 0...16 bar - pressure sensor -1...6 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Ventus 22 mm Ventileinsatz +NIST O2
valve insert for Ventus 22mm gas type: O2 according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge 0...16 bar - pressure sensor -1...6 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Ventus 22 mm Ventileinsatz +NIST VAC
valve insert for Ventus 22mm gas type: VAC according to DIN EN ISO 7396-1 and HTM 02-01. consisting of: - shut-off valve DN 20, G3/4" - copper pipe 22mm inlet/outlet - gauge -1...0 bar - pressure sensor -1...6 - NIST emergency supply point in front of the shut-off valve - NIST emergency supply point after the shut-off valve - physical sectioning point - gas labelling
Safety and transparency for every supply zone.
Ventus area control units allow monitoring, shut-off and control of individual sections within the medical gas supply system. They provide clear visibility of supply status and support rapid response during maintenance or fault situations. Ventus stands for high operational reliability, clear status indication and structured gas distribution.
