Pressure Regulators
Falke with Flow Standard O2 PIN 9/16
Falke with Flow, Standard, Compact pressure regulator with high-pressure connection acc. to CGA V-1, contents gauge, step-adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: HP cylinder connection acc. to CGA V-1; Connection: 870 (pin-index) Outlet: 9/16-18 UNF (tubing nipple), bottom Capacity:Â Â Â Â 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand. AIR DIN 9/16
AIR Falke with Flow, Standard, Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:        Compressed air / AIR Connection:    Cylinder connection for gas cylinders according to DIN 477, No. 13 Outlet:        9/16-18 UNF (tubing nipple), bottom Flow rate:        0…15 l/min Flow settings:    0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand. CO2 DIN 9/16
Falke with Flow, Standard, Compact Pressure Regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Carbon dioxide / CO2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 6 Outlet:Â Â Â Â 9/16-18 UNF (Tubing Nipple) bottom Flow Rate: 0...15 l/min Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand. AIR DIN Tubing Nipple +1DIN
Falke with Flow, Standard with 1 quick coupling, Compact pressure regulator with contents gauge; incrementally adjustable flow rate, DIN quick coupling at a pressure of 450 kPa. Gas Type:Â Â Â Â Compressed Air / AIR Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 13 Outlet:Â Â Â Â Tubing Nipple / 1 quick coupling according to DIN 13260 Part 2 Flow Rate:Â Â Â Â 0...15 l/min Tubing Nipple - 120 l/min quick coupling Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with Flow Paediatric CO2 DIN 9/16
Falke with Flow, Paediatric, Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Carbon dioxide / CO2 Connection: Cylinder connection for gas cylinders according to DIN 477, no. 6 Outlet:Â Â Â Â 9/16-18 UNF (Tubing Nipple), bottom Flow rate: 0...5 l/min Flow settings: 0/ 0.1/ 0.3/ 0.5/ 0.6/ 0.8/ 1/ 2/ 3/ 4/ 5 l/min
Falke w. FLOW Stand. N2 DIN 1/4"SAE
Falke with Flow, Standard, N2 Compact pressure regulator with contents gauge; step-adjustable flow rate. Gas type:Â Â Â Â Nitrogen / N2 ******************************** Connection: Cylinder connection for gas cylinders according to DIN 477, No. 10 (W 24.32 x 14G) Outlet:Â Â Â Â G1/4" SAE Flow rate: 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min technical application - not a medical device
Falke with FLOW Stand. N2H2 DIN 1/4"SAE
Falke with Flow, Standard, N2H2 Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Forming gas/ N2H2 ******************************** Connection: Cylinder connection for gas cylinders to DIN 477, No. 1 (W 21.8x1/14" LH) Outlet:Â Â Â Â G1/4" SAE Flow rate: 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Pure technical application - not a medical device
Falke with Flow Standard O2 DIN 9/16 AL long
Falke with Flow, Standard, Compact pressure regulator with contents gauge; step-adjustable flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â 9/16-18 UNF (tubing nipple), bottom Flow rate: 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min STEM LENGTH 56 mm ****************************
Falke with Flow 0-15 N2 Norway
Falke with Flow, 0...15 l/min, Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Nitrogen / N2 Connection: Cylinder connection for gas cylinders according to DIN 477, No. 10 (W24.32 x 1/4") Outlet:Â Â Â Â Tubing nipple bottom Flow rate:Â Â Â Â 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with FLOW Standard O2 DIN Tubing Nipple
Falke with Flow, Standard, Compact pressure regulator with contents gauge; step-adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection for gas cylinders according to DIN 477, no. 9 Outlet:Â Â Â Â Tubing nipple below Flow rate: 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

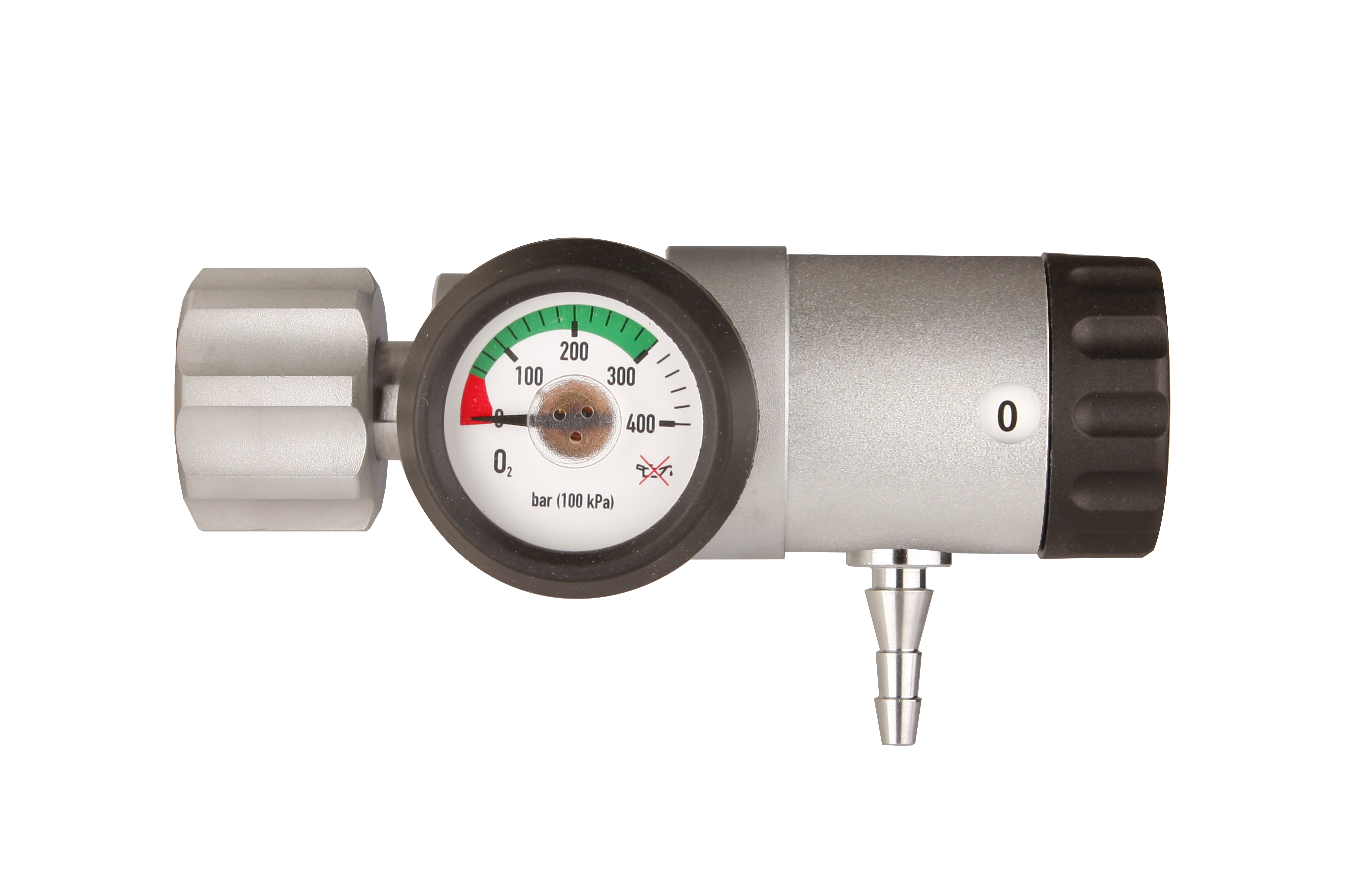

Falke with Flow Paediatric O2 DIN Tubing Nipple
Falke with Flow, Paediatric, Compact pressure regulator with , contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â Tubing Nipple bottom Flow Rate:Â Â Â Â 0...5 l/min. Flow Settings: 0/ 0.1/ 0.3/ 0.5/ 0.6/ 0.8/ 1/ 2/ 3/ 4/ 5 l/min
Falke w. Flow Neo O2 DIN Tubing Nipple
Falke with Flow, NEO, Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â Tubing Nipple bottom Flow rate:Â Â Â Â 0...1 l/min Flow Settings: 0/ 0.1/ 0.15/ 0.2/ 0.25/ 0.3/ 0.4/ 0.5/ 0.6/ 0.8/ 1.0 l/min
Falke with Standard Flow O2 DIN Tubing Nipple +1DIN
Falke with Flow, standard with 1 quick-release coupling, Compact Pressure Regulator with contents gauge; stepwise adjustable flow rate, DIN quick-release coupling at a pressure of 450 kPa. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â Tubing Nipple / 1 quick-release coupling according to DIN 13260 Part 2 Output:Â Â Â Â 0...15 l/min Tubing Nipple - 120 l/min quick-release coupling Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

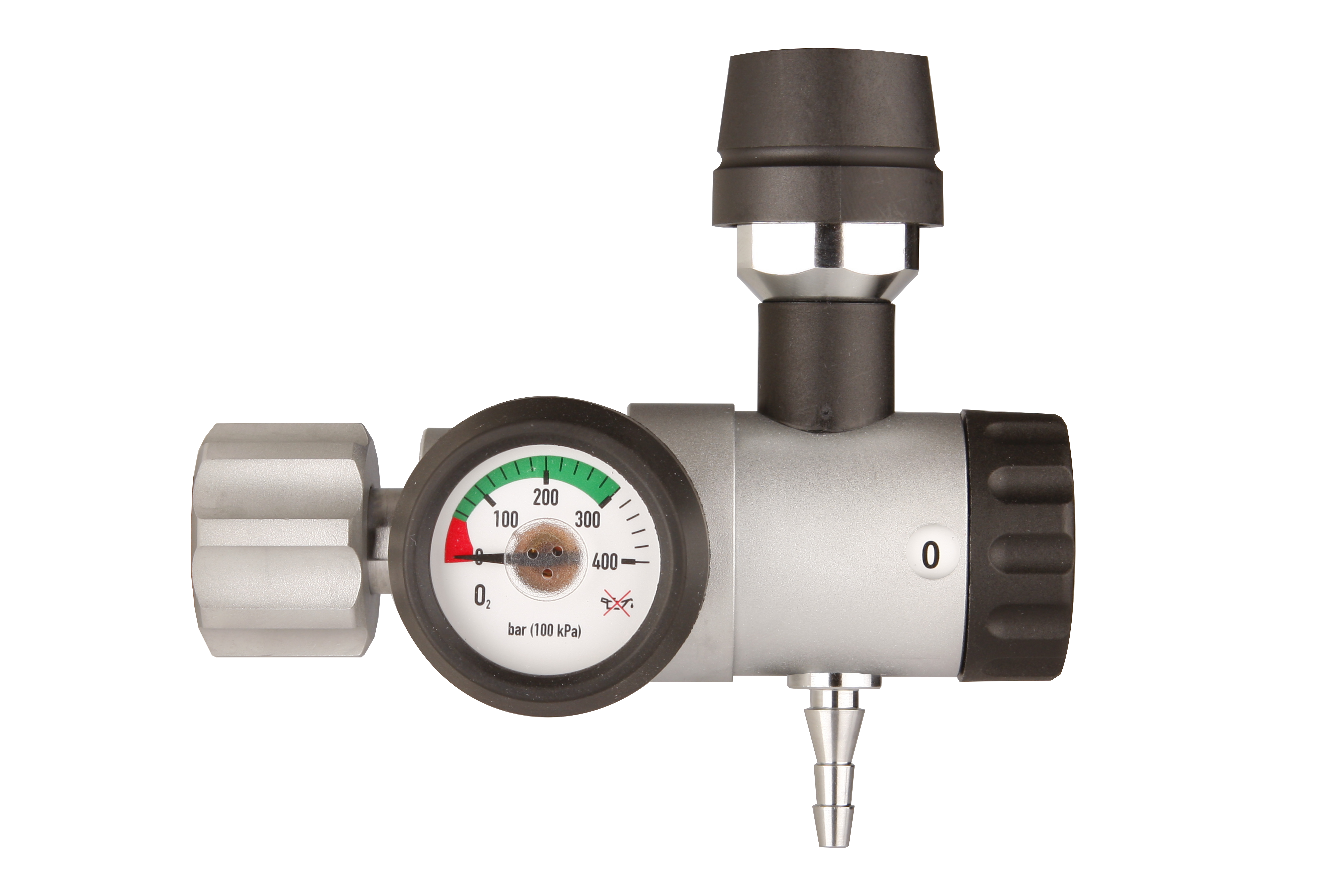

Falke with Flow Paediatric O2 DIN Tubing Nipple +1DIN
Falke with Flow, Paediatric with 1 quick-release coupling, compact pressure regulator with contents gauge; stepwise adjustable flow rate, DIN quick-release coupling at a pressure of 450 kPa. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection for gas cylinders to DIN 477, No. 9 Outlet:Â Â Â Â Tubing nipple / 1 quick-release coupling to DIN 13260 Part 2 Flow rate:Â Â Â Â 0...5 l/min tubing nipple - 120 l/min quick-release coupling Flow settings: 0/0.1/ 0.3/ 0.5/ 0.6/ 0.8/ 1/ 2/ 3/ 4/ 5 l/min
Falke w. Flow Stand. O2 DIN Tubing Nipple +2DIN
Falke with Flow, Standard with 2 quick-release couplings, compact pressure regulator with contents gauge; incrementally adjustable flow rate, DIN quick-release coupling at a pressure of 450 kPa. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â Tubing nipple / 2 quick-release couplings according to DIN 13260 Part 2 Flow rate:Â Â Â Â 0...15 l/min tubing nipple - quick-release coupling max. 120 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand+ O2 DIN Tubing Nipple +2DIN
Falke with Flow, Standard+ with 2 quick couplings, Compact Pressure Regulator with contents pressure gauge; step-adjustable Flow Rate. DIN quick coupling at a pressure of 450 kPa. Gas Type:Â Â Â Â Oxygen / O2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â Tubing Nipple / 2 quick couplings according to DIN 13260 Part 2 Flow Rate:Â Â Â Â 0...30 l/min Tubing Nipple - quick coupling max. 120 l/min Flow Settings: 0 / 0.5 / 1 / 2 / 4 / 6 / 8 / 10 / 12 / 15 / 30+ l/min

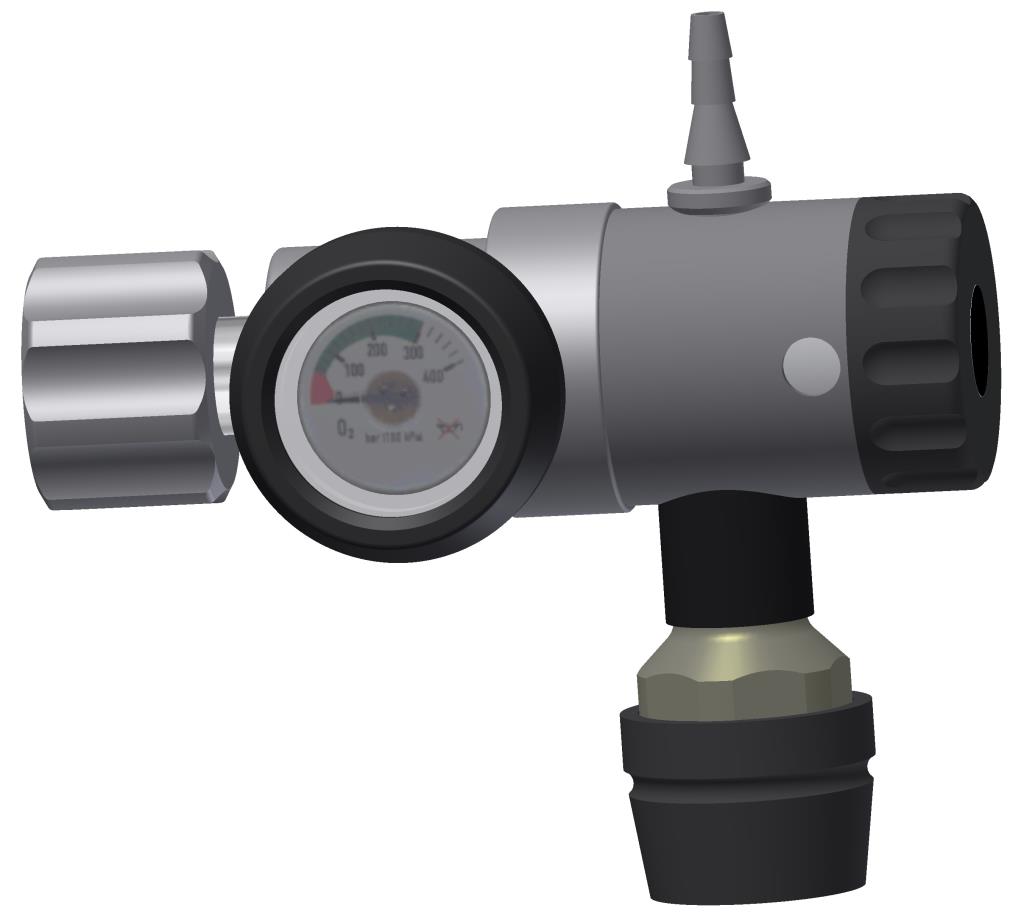

Falke Flow Stand. O2 DIN Tubing Nipple +1DIN can
Falke with Flow, Standard with 1 quick coupling Compact pressure regulator with contents gauge; incrementally adjustable flow rate, DIN quick coupling at a pressure of 450 kPa. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection for gas cylinders DIN 477, No. 9 Outlet: Tubing nipple, upwards **************** Outlet: Quick coupling DIN 13260-2, downwards ****************** Flow rate:Â Â Â Â 0...15 l/min tubing nipple / 120 l/min quick coupling Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with Flow Stand. O2 AGA Tubing Nipple +1AGA
Falke with Flow, Standard with 1 quick-release coupling, compact pressure regulator with cylinder connection according to SS 367615, contents pressure gauge, incrementally adjustable flow rate. AGA quick-release coupling at a pressure of 450 kPa. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder connection according to SS 367615; Connection: E1 Outlet:Â Â Â Â Tubing Nipple / 1 medium-pressure outlet type SS 87 524 30 (AGA) Flow rate:Â Â Â Â 0...15 l/min Tubing Nipple - 120 l/min quick-release coupling Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with Flow Stand. O2 BS Tubing Nipple Bull
Falke with Flow, Standard, Compact pressure regulator with high-pressure cylinder connection to BS 341-3, contents gauge, incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: HP cylinder connection to BS 341-3; Connection: 3 (Bene) Outlet:Â Â Â Â Tubing nipple bottom Flow rate:Â Â Â Â 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with Flow Standard O2 AGA Tubing Nipple
Falke with Flow, Standard, Compact pressure regulator with high-pressure cylinder connection to SS 367615, contents gauge, incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: High-pressure cylinder connection to SS 367615; No. E1 (W21.8) Outlet:Â Â Â Â Tubing nipple bottom Flow rate:Â Â Â Â 0...15 l/min Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand. O2 NF Tubing Nipple BE-BU
Falke with Flow, Standard, Compact Pressure Regulator with HP Cylinder Connection according to NF E29-650, contents gauge, stepwise adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: HP Cylinder Connection according to NF E29-650; Connection: F-627 (Bene) Outlet:Â Â Â Â Tubing Nipple bottom Flow Rate:Â Â Â Â 0...15 l/min Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke with Flow Neo O2 AGA Tubing Nipple
Falke with Flow, NEO, Compact pressure regulator with high-pressure cylinder connection acc. to SS 367615, contents gauge, incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: High-pressure cylinder connection acc. to SS 367615; No. E1 (W21.8) Outlet:Â Â Â Â Tubing nipple at bottom Flow rate:Â Â Â Â 0...1 l/min. Flow settings: 0/ 0.1/ 0.15/ 0.2/ 0.25/ 0.3/ 0.4/ 0.5/ 0.6/ 0.8/ 1.0 l/min
Falke with Flow Stand. O2 DIN 9/16
Falke with Flow, Standard Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas Type:        Oxygen / O2 Connection:    Cylinder connection for gas cylinders according to DIN 477, No. 9 Outlet:        9/16-18 UNF (tubing nipple) bottom Flow Rate:        0…15 l/min Flow Settings:    0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Falke w. Flow Stand+ O2 DIN 9/16
Falke with Flow, Standard+ Compact pressure regulator with contents gauge; incrementally adjustable flow rate. Gas type:Â Â Â Â Oxygen / O2 Connection: Cylinder Connection for gas cylinders according to DIN 477, No. 9 Outlet:Â Â Â Â 9/16-18 UNF (Tubing Nipple), bottom Flow Rate: 0...30 l/min Flow Settings: 0/ 0.5/ 1/ 2/ 4/ 6/ 8/ 10/ 12/ 15/ 30 l/min
Stable pressure for sensitive applications.
Medical pressure regulators ensure the reliable reduction of gas pressure to a safe and constant level. They protect connected devices and users and ensure controlled gas delivery in medical applications. Our pressure regulators are characterised by high precision & durable components. They are easy to handle, low-maintenance, and ideal for continuous use in medical environments.
