Terminal Units
Forano, Front Part, DIN, O2 93, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 - Gas type: Oxygen 93 / O2 93 Labelling: oxygen 93 / O2 93 Gas-specific socket assembly for mounting on base part FORANO. Socket assembly according to DIN 13260 Part 2 with park and operating position. Release via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - white) Release ring labelling: printed Language: English Cartridge incl. sealing elements Technical Data: Gas type: Oxygen 93 / O2 93 Labelling: oxygen 93 / O2 93 Colour coding: according to ISO 9170-1 (white) Front diameter: Ø 42mm Scope of Delivery: - Gas-specific socket assembly - Release ring incl. printed labelling - Cartridge with sealing elements
Forano, Base Part, UP/HW, DIN, O2
Terminal Unit Forano Base Part DIN/AGA/NF Gas-specific base part for installation in solid masonry walls (flush mounting) or in cavity walls. Installation housing with threaded ring for subsequent height adjustment (up to 25 mm). Base part with brazed copper pipe; integrated non-return and maintenance valve. Scope of delivery: - gas-specific base part with Cu pipe - installation housing with height adjustment - chimney (to protect the Cu pipe) - dust protection caps Technical data: Gas type: Oxygen / O2 Installation type: Flush/cavity wall mounting Inlet: Cu pipe 8x1 mm straight, top
Forano, Front Part, DIN, O2, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 Gas type: Oxygen / O2 Inscription: oxygen / O2 Gas-specific socket assembly for installation on base part FORANO. Socket assembly in accordance with DIN 13260 Part 2 with parked and operating position. Unlocking via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - white) Release ring inscription: printed Language: English Cartridge incl. sealing elements Technical data: Gas type: Oxygen / O2 Inscription: oxygen / O2 Colour coding: according to ISO 9170-1 (white) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed inscription - cartridge with sealing elements
Forano, Front Part, DIN, AIR ,ISO
Terminal Unit FORANO - Front Part DIN ISO 32 Gas type: Compressed Air / AIR Labelling: medical air / AIR Gas-specific socket assembly for mounting on FORANO base part. Socket assembly according to DIN 13260 Part 2 with parking and operating position. Release via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - black/white) Release ring labelling: printed Language: English Cartridge incl. sealing elements Technical data: Gas type: Compressed Air / AIR Labelling: medical air / AIR Colour coding: according to ISO 9170-1 (black/white) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, DIN, VAC, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 Gas Type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket assembly for installation on base part FORANO. Socket assembly according to DIN 13260 Part 2 with parked and operating position. Release via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - yellow) Release ring labelling: printed Language: English Cartridge incl. sealing elements Technical data: Gas Type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: according to ISO 9170-1 (yellow) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed lettering - cartridge with sealing elements
Forano, Front Part, DIN, AIR-800, ISO
Terminal Unit FORANO - Front Part DIN ISO 32 - Gas type: Compressed Air-800 / AIR-800 Inscription: medical air 800 / AIR-800 Gas-specific socket assembly for mounting on FORANO base part. Socket assembly according to DIN 13260 Part 2 with parking and operating position. Release via release ring. Colour coding: according to DIN EN ISO 9170-1 (ISO32 - black white) Release ring inscription: printed Language: English Cartridge incl. sealing elements Technical Data: Gas type: Compressed Air 800 / AIR-800 Inscription: medical air 800 / AIR-800 Colour coding: according to ISO 9170-1 (black-white) Front diameter: Ø 42mm Scope of Delivery: - Gas-specific socket assembly - Release ring incl. printed inscription - Cartridge with sealing elements
Forano, Front Part, DIN,N2, Colour-Neutral
Terminal Unit FORANO - Front Part DIN Colour-Neutral Gas type: Nitrogen / N2 Inscription: nitrogen / N2 Gas-specific socket assembly for mounting on FORANO base part. Socket assembly according to DIN 13260 Part 2 with park and operating position. Release via release ring. Colour coding: Colour-Neutral (black) Release ring inscription: printed Language: English Cartridge incl. sealing elements Technical data: Gas type: Nitrogen / N2 Inscription: nitrogen / N2 Colour coding: Colour-Neutral (black) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed inscription - cartridge with sealing elements
Forano, Front Part, DIN,AIR-800, Colour-Neutral
Terminal Unit FORANO - Front Part DIN Colour-Neutral Gas type: Compressed Air-800 / AIR-800 Labelling: medical air 800 / AIR-800 Gas-specific Socket Assembly for mounting on Base Part FORANO. Socket Assembly according to DIN 13260 Part 2 with parking and operating position. Release via Release Ring. Colour coding: Colour-Neutral (black) Release Ring labelling: printed Language: English Cartridge incl. sealing elements Technical data: Gas type: Compressed Air-800 / AIR-800 Labelling: medical air 800 / AIR-800 Colour coding: Colour-Neutral (black) Front diameter: Ø 42mm Scope of delivery: - gas-specific Socket Assembly - Release Ring incl. printed labelling - Cartridge with sealing elements Caution – Compatibility Notice Before using the AIR-800 Terminal Unit, it must be ensured that the Probes used comply with the requirements of DIN 13260-2:2025. In the past, similarly designed Probes were distributed that are not compatible with the AIR-800 Terminal Unit. The compatibility of the Probes used must therefore be checked prior to use.
Forano, Front Part, AGA, O2, ISO
Terminal Unit FORANO - Front Part AGA Gas type: Oxygen / O2 Labelling: oxygen / O2 Gas-specific socket assembly for mounting on base part FORANO. Design complies with DIN EN ISO 9170-1 Socket assembly according to SS 87 524 30 Release via release ring. Colour coding according to ISO 32. Release ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Oxygen / O2 Labelling: oxygen / O2 Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed text - cartridge with sealing elements
Forano, Front Part, DIN,O2 93, Colour-Neutral
Terminal Unit FORANO - Front Part DIN Colour-Neutral Gas Type: Oxygen 93 / O2 93 Labelling: oxygen 93 / O2 93 Gas-specific socket assembly for mounting on Base Part FORANO. Socket assembly according to DIN 13260 Part 2 with parking and operating position. Release via release ring. Colour coding: Colour-Neutral (black) Release ring inscription: printed Language: English Cartridge incl. sealing elements Technical Data: Gas Type: Oxygen 93 / O2 93 Labelling: oxygen 93 / O2 93 Colour coding: Colour-Neutral (black) Front diameter: Ø 42mm Scope of Delivery: - Gas-specific socket assembly - Release ring incl. printed inscription - Cartridge with sealing elements
Forano, Front Part, AGA, AIR, ISO
Terminal Unit FORANO - Front Part AGA Gas type: Compressed Air / AIR Inscription: medical air / AIR Gas-specific socket assembly for mounting on base part FORANO. Design complies with DIN EN ISO 9170-1; Socket assembly according to SS 87 524 30 Release via release ring. Colour coding according to ISO 32. Release ring inscription: printed Cartridge incl. sealing elements Technical Data: Gas type: Compressed Air / AIR Inscription: medical air / AIR Colour coding: ISO 32 Front diameter: Ø 42mm Scope of Delivery: - gas-specific socket assembly - release ring incl. printed inscription - cartridge with sealing elements
Forano, Front Part, BS, O2, ISO
FORANO Terminal Unit - Front Part BS Gas type: Oxygen / O2 Labelling: oxygen / O2 Gas-specific socket assembly for mounting on FORANO base part. Socket assembly according to BS 5682 Release via release ring. Colour coding: Socket assembly coloured according to DIN EN ISO 9170-1 (ISO32). Release ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Oxygen / O2 Labelling: oxygen / O2 Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of delivery: - Gas-specific socket assembly - Release ring incl. printed labelling - Cartridge with sealing elements
Forano, Front Part, BS, VAC, ISO
Terminal Unit FORANO - Front Part BS Gas Type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket assembly for mounting on FORANO base part. Socket assembly according to BS 5682. Release via release ring. Colour coding: Socket assembly coloured according to DIN EN ISO 9170-1 (ISO32). Release ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, BS, MA, ISO
Terminal Unit FORANO - Front Part BS Gas type: Compressed Air / MA Inscription: medical air / MA Gas-specific Socket Assembly for mounting on Base Part FORANO. Socket Assembly according to BS 5682. Release via Release Ring. Colour coding: Socket Assembly coloured according to DIN EN ISO 9170-1 (ISO32). Release Ring inscription: printed Cartridge incl. sealing elements Technical Data: Gas type: Compressed Air / MA Inscription: medical air / MA Colour coding: according to DIN EN ISO 9170-1 (ISO32) Front diameter: Ø 42mm Scope of Delivery: - gas-specific Socket Assembly - Release Ring incl. printed inscription - Cartridge with sealing elements
Forano, Front Part, AGA, VAC, ISO
Terminal Unit FORANO - Front Part AGA Gas type: Vacuum / VAC Labelling: vacuum / VAC Gas-specific socket assembly for mounting on base part FORANO. Design complies with DIN EN ISO 9170-1; Socket assembly according to SS 87 524 30 Release via release ring. Colour coding according to ISO 32. Release ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: Vacuum / VAC Labelling: vacuum / VAC Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - gas-specific socket assembly - release ring incl. printed labelling - cartridge with sealing elements
Forano, Front Part, AGA, AGSS (UTL), ISO
Terminal Unit FORANO - Front Part AGA Gas type: AGSS ( UTL) Labelling: AGSS / UTL Gas-specific Socket Assembly for mounting on Base Part FORANO. Design complies with DIN EN ISO 9170-1; Socket Assembly according to SS 87 524 30 Release via Release Ring. Colour coding according to ISO 32. Release Ring labelling: printed Cartridge incl. sealing elements Technical data: Gas type: AGSS ( UTL) Labelling: AGSS / UTL Colour coding: ISO 32 Front diameter: Ø 42mm Scope of delivery: - Gas-specific Socket Assembly - Release Ring incl. printed labelling - Cartridge with sealing elements

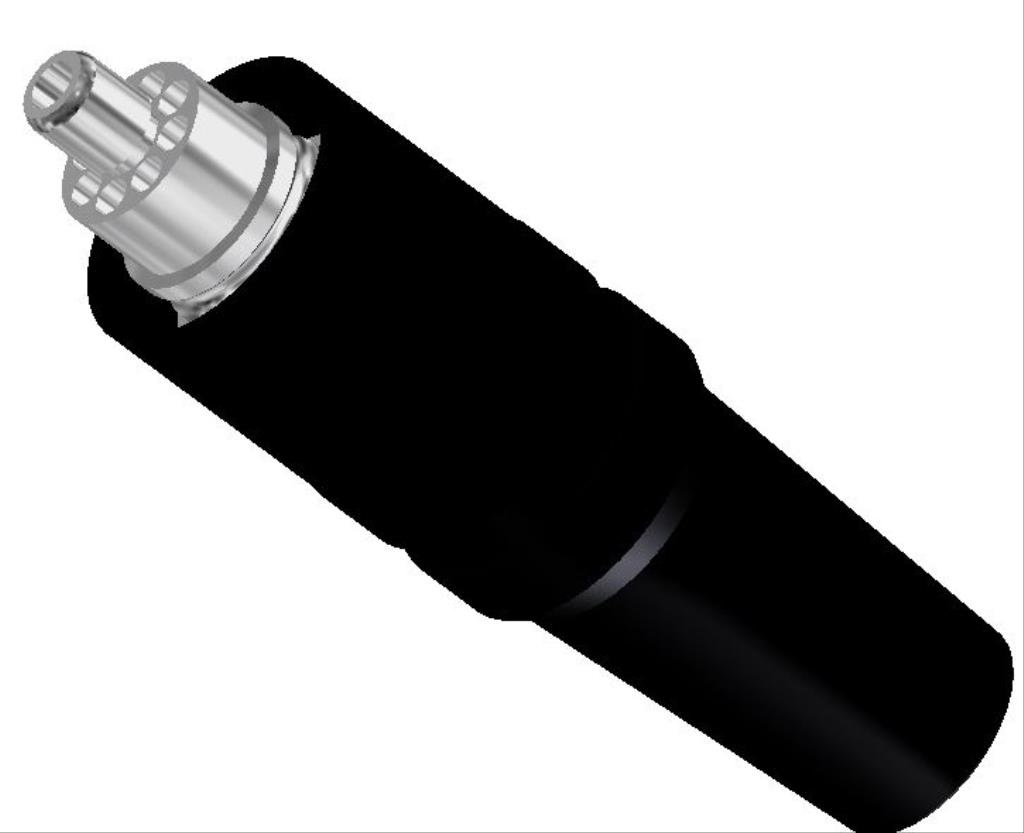

Air Motor Probe
Airmotor Probe Probe for compressed air tools with connection nipples for supply and return Technical Data: Gas Type:Â Â Â Â Compressed Air / AIR Connection: according to DIN 13260-2 Outlet:Â Â Â Â 23 mm Tubing Nipple

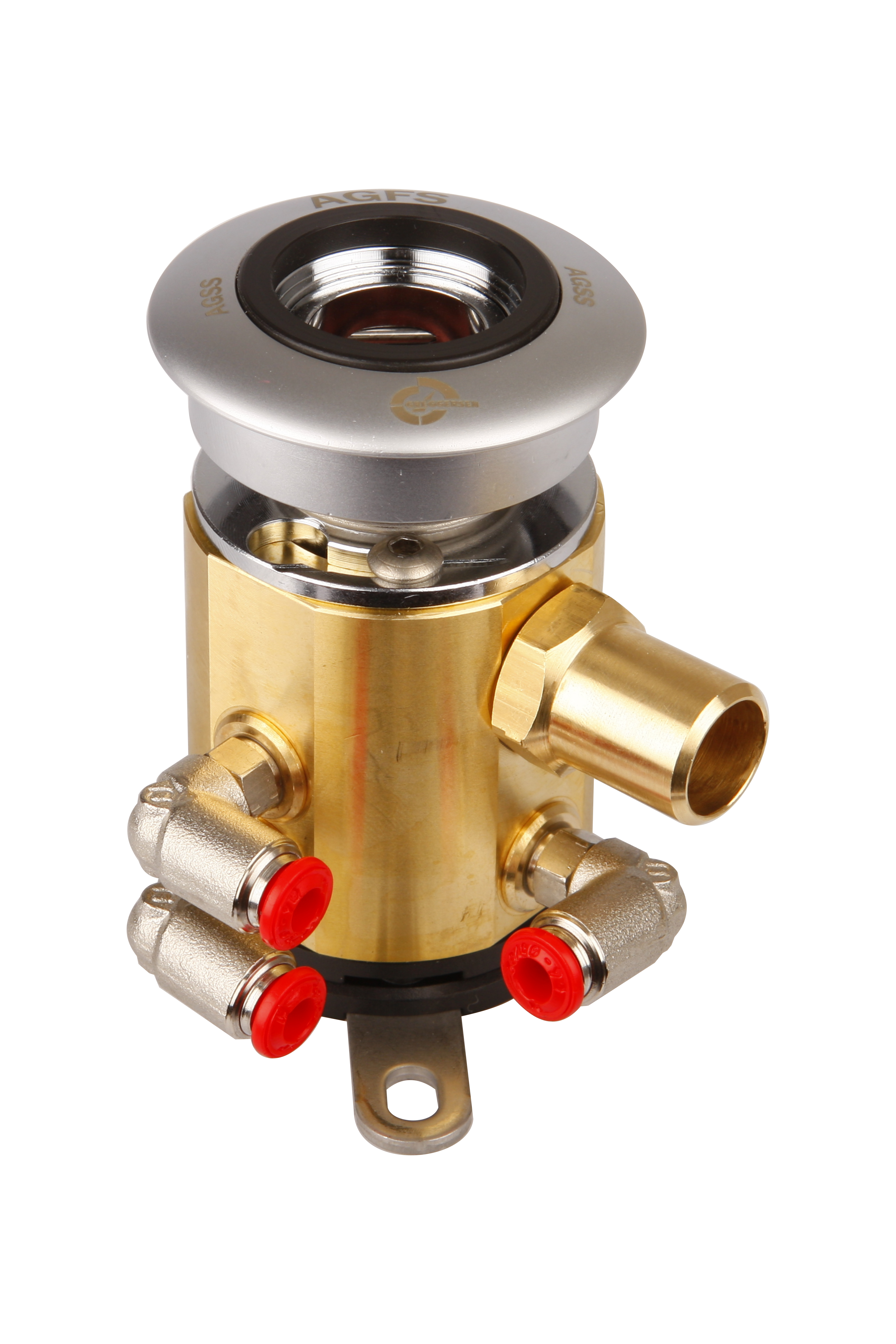

Air Motor Forano, Flush-Mounted/Cavity Wall
Terminal Unit Air Motor FORANO For operating surgical tools with compressed air; with exhaust air return; with non-return valve. All-metal version - front plate and installation housing made of stainless steel. Installation type: Flush-mounted/cavity wall Inlet: CU pipe 8x1 mm Outlet: CU pipe 15x1 mm Standard: DIN 13260-2 (Type 1), DIN EN ISO 9170-1

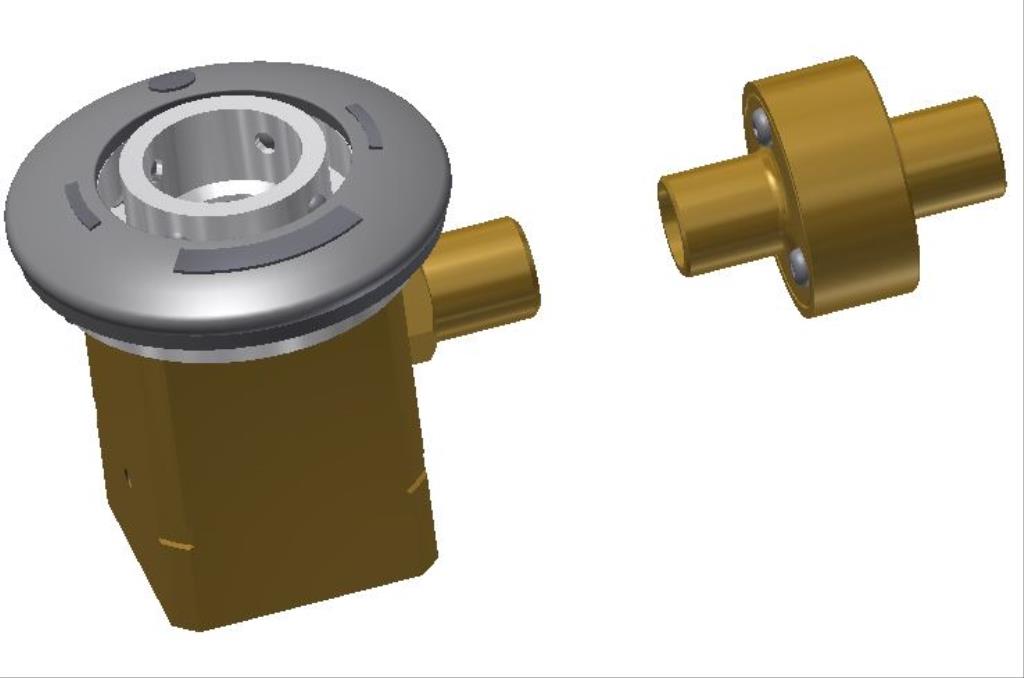

Air Motor Forano, DVE
Terminal Unit Air Motor FORANO For operating surgical tools with compressed air; with return for exhaust air; with Non-Return Valve. All-metal version. Installation type: DVE Inlet: Compressed air hose barb 8 mm Outlet: Exhaust air hose barb 15 mm Standard: DIN 13260-2 (Type 1), DIN EN ISO 9170-1

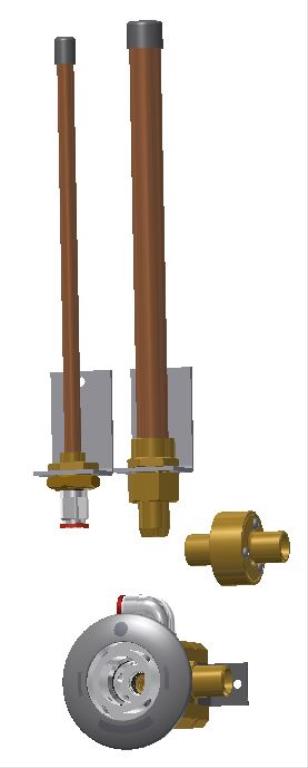

Airmotor Forano, Rail
Terminal Unit Air Motor FORANO For operating surgical tools with compressed air; with return line for exhaust air; with non-return valve. All-metal version Installation type: Rail Inlet: CU pipe 8x1 mm Outlet: CU pipe 15x1 mm Standard: DIN 13260-2 (Type 1), DIN EN ISO 9170-1
Air Motor Forano, Surface-Mounted
Airmotor FORANO for compressed air tools with connection ports for compressed air 10 bar and return, completely mounted in surface-mounted housing. for surface mounting
Non-Return Valve Airmotor
Non-Return Valve for the air motor exhaust line Inlet: Ø15mm (outer) Outlet: Ø15mm (outer)

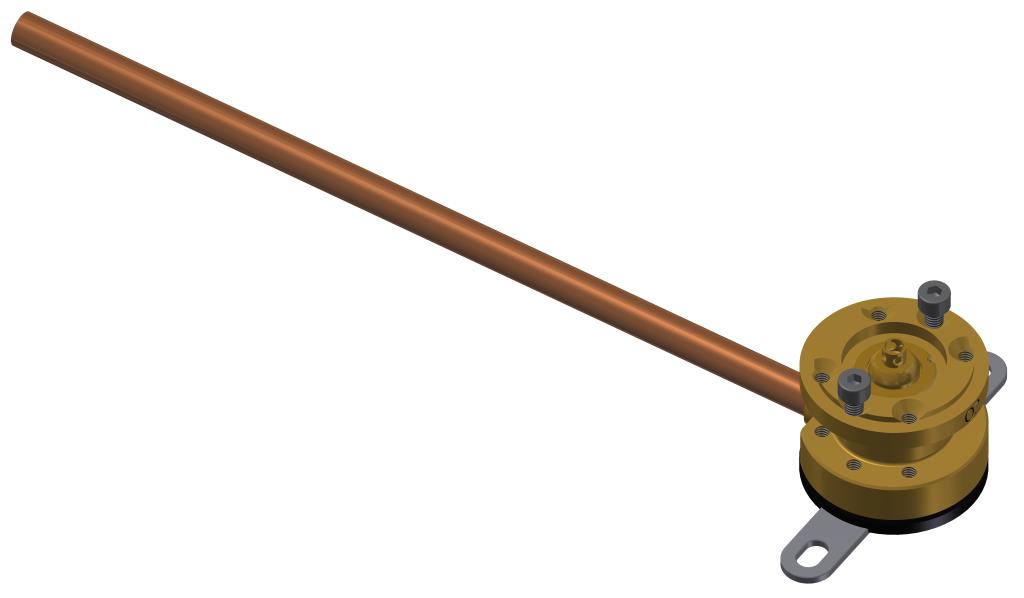

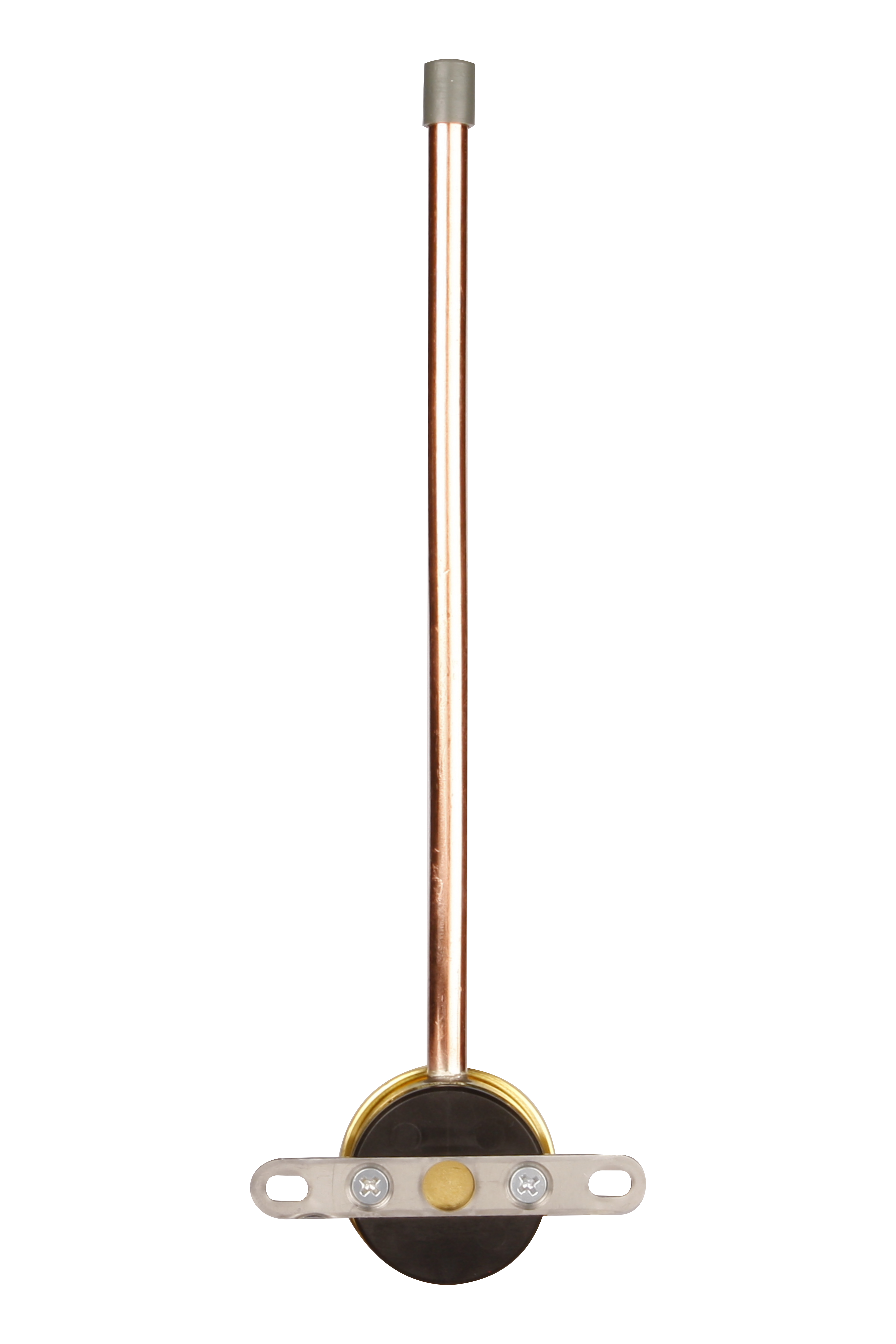

Forano, Base Part, Straight Pipe, DIN, O2
Terminal Unit Forano Base Part DIN/AGA/NF Gas-specific base part for installation in supply rails or ducts. Base part with spacer disc and mounting bracket; brazed copper pipe, integrated non-return and maintenance valve. Scope of delivery: - gas-specific base part with Cu pipe - Spacer disc - Mounting bracket Technical data: Gas type: Oxygen / O2 Installation type: Media supply rail Inlet: Cu pipe 8x1 mm straight, top
Reliable access to medical gases.
Our Forano medical terminal units represent the safe transfer point between the central gas supply and the medical device. They ensure standard-compliant, clear and safe delivery of medical gases in sensitive care areas. Thanks to their robust design, distinct gas identification and high connection precision, Forano terminal units offer maximum safety, durability and ease of operation in everyday clinical practice.
