Flowmeters

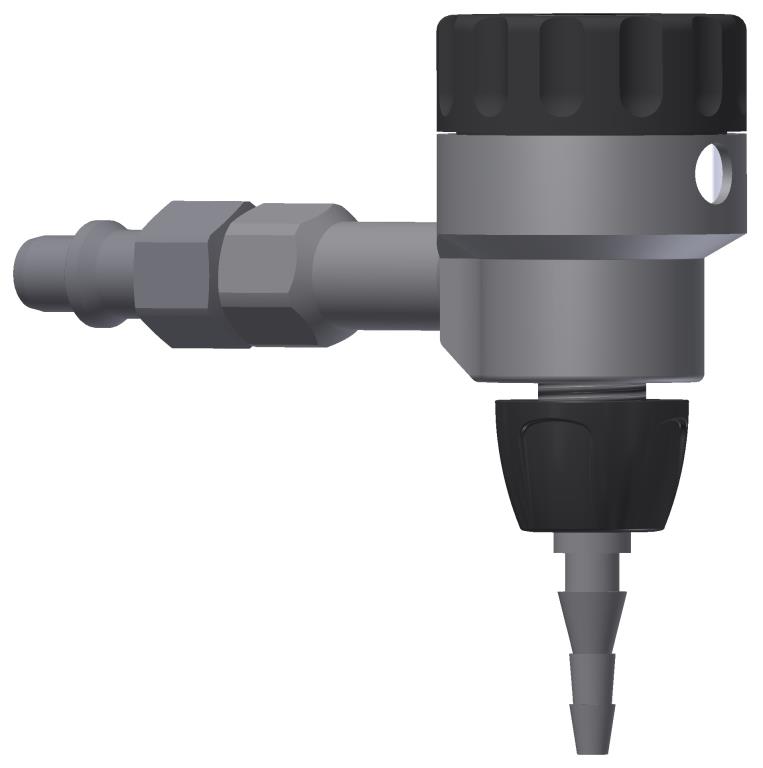

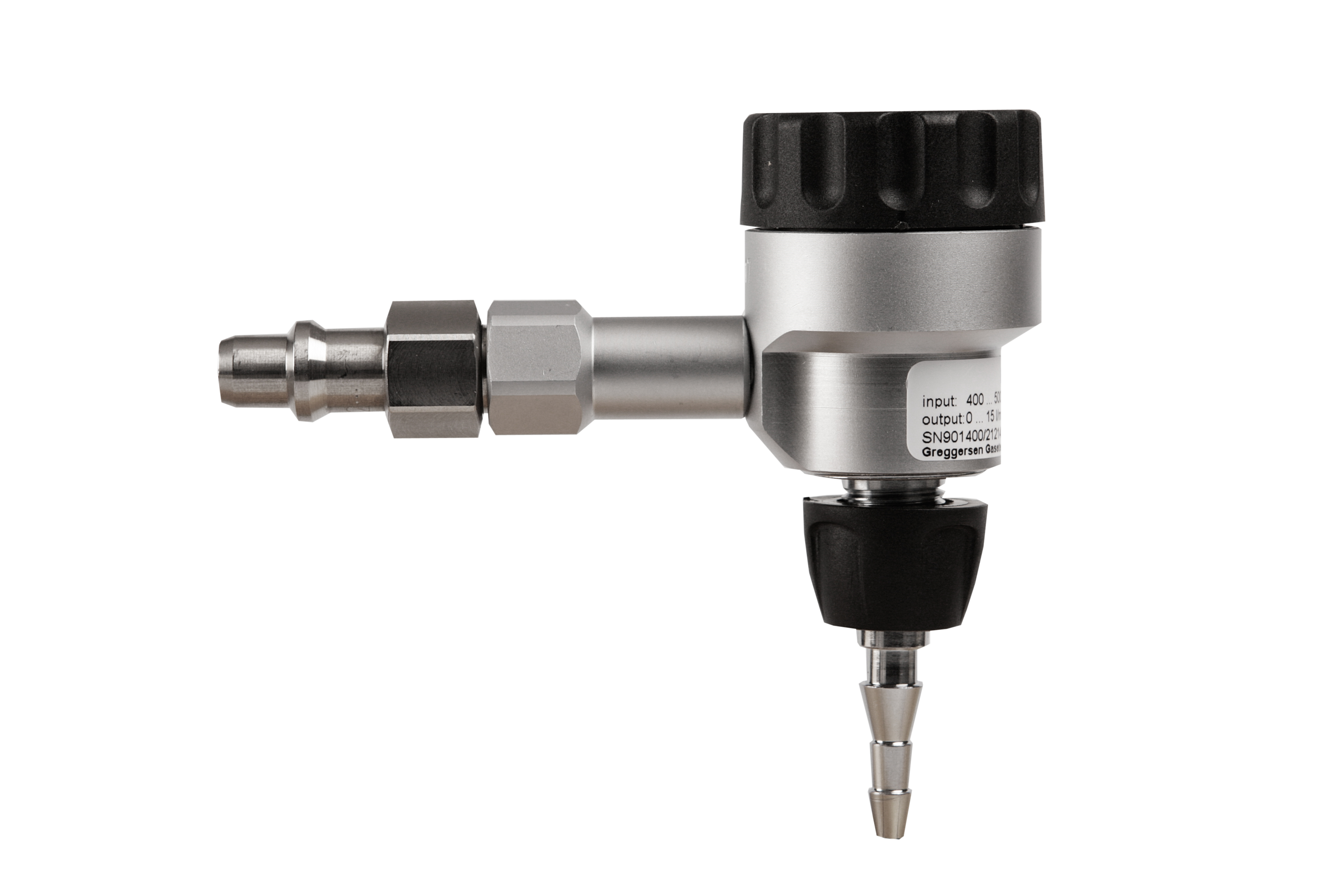

Kolibri 2 Probe DIN O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard DIN PLUG-IN UNIT - Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selection device Medical compact flowmeter for connection to a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF Setting device ergonomically optimised and readability of the set flow setting possible from different viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas Type:Â Â Â Â Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF thread Flow Rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Rail NIST O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard RAIL-MOUNTED UNIT - Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selector mechanism Medical compact flowmeter for mounting on a 25x10mm equipment rail; gas inlet NIST integrated into the rail clamp; with handwheel - stepwise adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the selected flow setting from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas Type:Â Â Â Â Oxygen / O2 Connection: NIST in accordance with DIN EN ISO 18082 Outlet:Â Â Â Â 9/16-18 UNF Flow Rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Double Probe DIN O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard - Double - DIN PLUG-IN UNIT - Flow settings (2x): 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Double Compact Flowmeter KOLIBRI 2 with fixed orifices and selector device Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting from various viewing directions and angles. Frontal operating concept -> enhanced safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min at 450 kPa (4.5 bar) inlet pressure Accessories required for operation: 2x 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Double Rail NIST O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard - Double - RAIL-MOUNTED UNIT - Flow Settings (2x): 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Double Compact Flowmeter KOLIBRI 2 with fixed orifices and selection device Medical compact flowmeter for mounting on an equipment rail 25x10mm; gas inlet NIST integrated in the rail clamp; with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Adjustment device ergonomically optimised and readability of the set flow setting from various viewing directions and angles possible. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: NIST in accordance with DIN EN ISO 18082 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 2x 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Probe DIN AIR Standard
KOLIBRI 2, AIR, 0...15 l/min - Standard DIN PLUG-IN UNIT - Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selector mechanism Medical compact flowmeter for connection to a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised setting device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> enhanced safety when setting the correct flow rate Gas type:Â Â Â Â med. Compressed Air / AIR Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow Rate:Â Â Â Â 0...15 l/min at 450 kPa (4.5 bar) inlet pressure Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Double Probe DIN AIR Standard
KOLIBRI 2, AIR, 0...15 l/min - Standard - Double - DIN PLUG-IN UNIT - Flow settings (2x): 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Double Compact Flowmeter KOLIBRI 2 with fixed orifices and selector mechanism Medical compact flowmeter for connection to a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the selected flow setting from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Med. Compressed Air / AIR Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 2 x 900619 - Hose connection 9/16-18 UNF
Kolibri 2 DIN Probe CO2 Standard
KOLIBRI 2, CO2, 0...15 l/min - Standard DIN PLUG-IN UNIT - Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selector device Medical compact flowmeter for coupling into a terminal unit, with handwheel – incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:    Carbon dioxide / CO2 Connection: Probe according to DIN 13260 Part 2 Outlet:    9/16-18 UNF Flow rate:    0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Probe BS O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard BS PLUG-IN UNIT - Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selector device Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting from various viewing directions and angles possible. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Probe according to BRITISH STANDARD Outlet:Â Â Â Â 9/16-18 UNF Flow Rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF

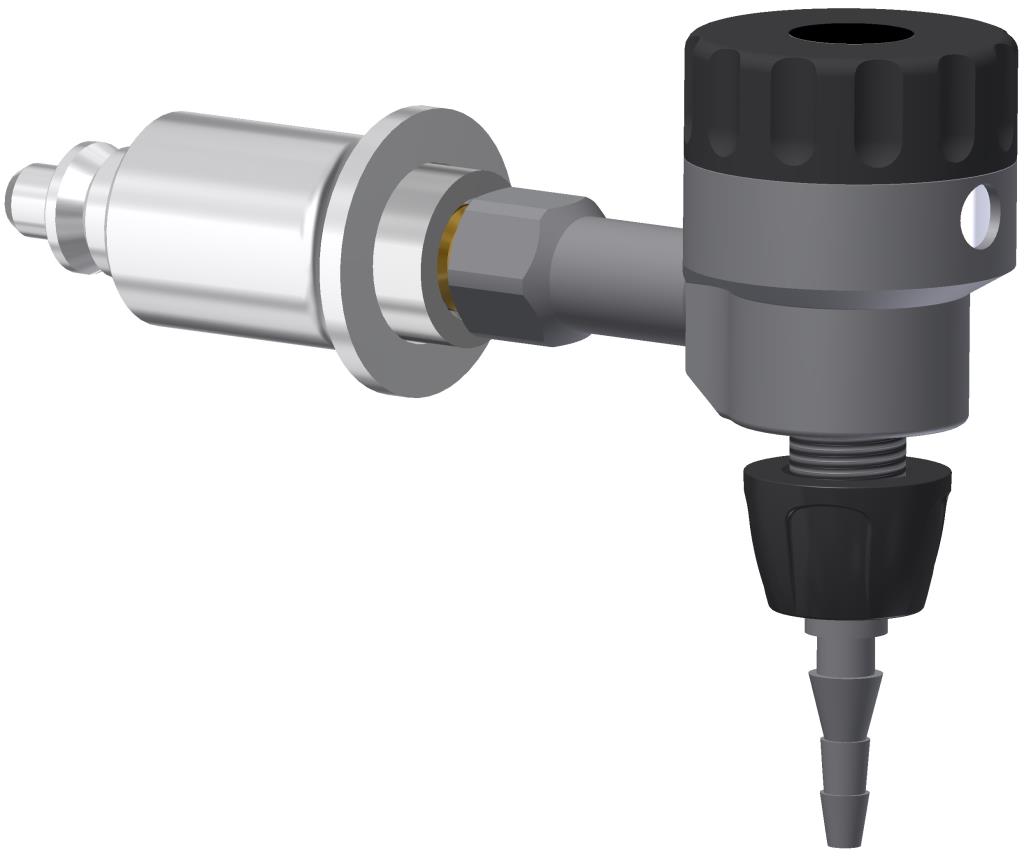

Kolibri 2 Probe MEDAP Neo
KOLIBRI 2, O2, 0...1 l/min - Neonatal MEDAP PLUG-IN UNIT - Flow Settings: 0 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 / 0.6 / 0.8 / 1.0 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selection device Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: MEDAP Probe Outlet:Â Â Â Â 9/16-18 UNF Flow Rate:Â Â Â Â 0...1 l/min Accessories required for operation: 900619 - Hose Connection 9/16-18 UNF
Kolibri 2 Probe AGA O2 Standard
KOLIBRI 2, O2, 0...15 l/min - Standard AGA PLUG-IN UNIT - Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with permanently attached orifices with selection device Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF Adjustment device ergonomically optimised and readability of the set flow setting possible from different viewing directions and angles. Frontal operating concept -> more safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Probe type AGA (SS 87 524 30) Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Double Probe DIN O2 Paediatric
KOLIBRI 2, O2, 0...5 l/min - Paediatric - Double - DIN PLUG-IN UNIT - Flow settings (2x): 0 / 0.1 / 0.3 / 0.5 / 0.6 / 0.8 / 1 / 2 / 3 / 4 / 5 l/min Double Compact Flowmeter KOLIBRI 2 with permanently attached orifices with selection device Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...5 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 2x 900619 - Hose connection 9/16-18 UNF
Kolibri, DIN Probe, O2 Standard antim.
Kolibri, O2, 0...15 l/min, antimagnetic - Standard/Plug-in Unit - Medical Compact Flowmeter according to DIN EN ISO 15002, for coupling into a terminal unit, with handwheel stepwise adjustable flow rate, outlet 9/16-18 UNF and tubing nipple Version: Antimagnetic ****************************** Gas Type:Â Â Â Â Oxygen Connection: Probe according to DIN 13260 Part 2 Overall Length: 88 mm (probe front part to centre of tubing nipple outlet) Outlet:Â Â Â Â 9/16-18 UNF / Tubing Nipple Flow Rate:Â Â Â Â 0...15 l/min Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Double Kolibri, DIN, AIR Standard
Double Kolibri - AIR Standard/ PLUG-IN UNIT Medical Compact Flowmeter according to DIN EN ISO 15002, for coupling into a terminal unit, with handwheel gradually adjustable flow rate, outlet 9/16-18 UNF and tubing nipple Gas type:Â Â Â Â Compressed Air - AIR Connection: DIN Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF / tubing nipple Flow Rate:Â Â Â Â 2 x 0...15 l/min Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Flowmeter, DIN, O2, 0-15l/min
Flowmeter, O2, 0...15 l/min - PLUG-IN UNIT - Medical flowmeter, pressure-compensated according to DIN EN ISO 15002, with extension, fine adjustment valve for metering the flow, for coupling into a terminal unit Gas type:Â Â Â Â Oxygen - O2 Connection: Probe according to DIN 13260 Part 2 Overall length: 86.5 mm (probe front part to centre of flow outlet) Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min continuously adjustable Inlet pressure: 450 kPa +/- 50 kPa
Flowmeter, DIN, CO2, 0-12l/min
Flowmeter, Standard, CO2 Plug-in Unit Medical flowmeter, pressure-compensated according to DIN EN ISO 15002, with fine adjustment valve for flow rate dosing, for coupling into a terminal unit Technical Data: Gas type:Â Â Â Â Carbon dioxide / CO2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...12 l/min
Double Flowmeter, DIN, O2, 0-15l/min
Double Flowmeter -PLUG-IN UNIT- Medical double flowmeter, pressure-compensated according to DIN EN ISO 15002, with fine control valve for dosing the flow, for coupling into a terminal unit Gas type: Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet: 2 x 9/16-18 UNF Flow rate: 0…15 l/min each, continuously adjustable Inlet pressure: 450 kPa +/- 50 kPa
Kolibri 2 DIN Probe O2 Standard+
KOLIBRI 2, O2, 0...30 l/min - Standard+ DIN PLUG-IN UNIT - Flow Settings: 0 / 2 / 3 / 4 / 6 / 8 / 12 / 15 / 20 / 25 / 30 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selection device Medical compact flowmeter for coupling into a terminal unit, with handwheel – incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas Type:    Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:    9/16-18 UNF Flow Rate:    0...30 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 DIN Probe O2 Paediatric
KOLIBRI 2, O2, 0...5 l/min - Paediatric DIN PLUG-IN UNIT - Flow Settings: 0 / 0.1 / 0.3 / 0.5 / 0.6 / 0.8 / 1 / 2 / 3 / 4 / 5 l/min Compact Flowmeter KOLIBRI 2 with fixed orifices and selector device Medical compact flowmeter for connection to a terminal unit, with handwheel – incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the selected flow setting from various viewing directions and angles. Frontal operating concept -> increased safety when setting the correct flow rate Gas Type:    Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:    9/16-18 UNF Flow Rate:    0...5 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose Connection 9/16-18 UNF
Kolibri, Rail O2 Standard - NIST CH
Kolibri, O2, 0...15 l/min, Rail-Mounted Unit CH, NIST with spring-loaded rail clamp for rails up to 50 mm Medical Compact Flowmeter according to DIN EN ISO 15002; flow is set via handwheel in 10 flow settings; gas inlet NIST integrated in rail clamp; outlet 9/16-18 UNF and tubing nipple Gas Type: Oxygen / O2 Connection: NIST according to DIN EN ISO 18082 Outlet: 9/16-18 UNF / Tubing Nipple Flow Rate: 0...15 l/min Flow Settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Kolibri 2 Probe DIN O2 Neo
KOLIBRI 2, O2, 0...1 l/min - Neonatal DIN PLUG-IN UNIT - Flow Settings: 0 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 / 0.6 / 0.8 / 1.0 l/min KOLIBRI 2 Compact Flowmeter with fixed orifices with selector mechanism Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Adjustment mechanism ergonomically optimised and readability of the set flow setting from various viewing directions and angles possible. Frontal operating concept -> increased safety when setting the correct flow rate Gas Type:Â Â Â Â Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow Rate:Â Â Â Â 0...1 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Kolibri 2 Probe DIN O2 Standard long
KOLIBRI 2, O2, 0...15 l/min - Standard DIN PLUG-IN UNIT - Long version Flow settings: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min Compact Flowmeter KOLIBRI 2 with permanently attached orifices with selection device Total length "long" Probe front part to centre of flow outlet (distance from terminal unit to tubing nipple): 75 mm (intermediate piece 60 mm) Medical compact flowmeter for coupling into a terminal unit, with handwheel - incrementally adjustable flow rate, outlet 9/16-18 UNF thread Ergonomically optimised adjustment device and readability of the set flow setting possible from various viewing directions and angles. Frontal operating concept -> greater safety when setting the correct flow rate Gas type:Â Â Â Â Oxygen / O2 Connection: Probe according to DIN 13260 Part 2 Outlet:Â Â Â Â 9/16-18 UNF Flow rate:Â Â Â Â 0...15 l/min at inlet pressure 450 kPa (4.5 bar) Accessories required for operation: 900619 - Hose connection 9/16-18 UNF
Double Flowmeter, DIN, AIR, 0-15l/min
Double Flowmeter -PLUG-IN UNIT- Medical double flowmeter, pressure-compensated according to DIN EN ISO 15002, with fine control valve for flow rate adjustment, for connection to a terminal unit Gas type: Compressed Air Connection: Probe according to DIN 13260 Part 2 Outlet: 2 x 9/16-18 UNF Flow rate: each 0 ... 15 l/min continuously adjustable Inlet pressure: 450 kPa +/- 50 kPa
Flowmeter, DIN, O2, 0-15l/min extended
Flowmeter, O2, 0...15 l/min with extension PLUG-IN UNIT Medical flowmeter, pressure-compensated according to DIN EN ISO 15002, with extension, fine adjustment valve for metering the flow, for connecting to a terminal unit Gas type:Â Â Â Â Oxygen - O2 Connection: Probe according to DIN 13260 Part 2 Total length: 131.50 mm (probe front part to centre of flow outlet) Outlet:Â Â Â Â 9/16 -18 UNF Flow rate:Â Â Â Â 0...15 l/min continuously adjustable Inlet pressure: 450 kPa +/- 50 kPa
Flowmeter, DIN, O2, 0-15l/min antimagnetic
Flowmeter, O2, 0...15 l/min, non-magnetic -PLUG-IN UNIT- Medical flowmeter, pressure-compensated according to DIN EN ISO 15002, with fine adjustment valve for dosing the flow, for direct connection to a terminal unit Version: non-magnetic ******************************** Gas type:Â Â Â Â Oxygen - O2 Connection: Probe according to DIN 13260 Part 2 Overall length: 86.5 mm (probe front part to centre of flow outlet) Outlet:Â Â Â Â 9/16 - 18 UNF Flow rate:Â Â Â Â 0...15 l/min continuously adjustable Inlet pressure: 450 kPa +/- 50 kPa
Reliable flow control for medical gases.
Medical flowmeters enable precise adjustment and monitoring of gas flow directly at the point of use. They are essential for the safe, demand-oriented supply of patients in hospitals, clinics and care facilities. Our flowmeters stand out for their high dosing accuracy, robust design and intuitive operation. Thanks to durable materials, they are designed for daily use in demanding medical environments and ensure consistent, safe gas delivery.
