Kolibri 2 Probe BS O2 Standard

KOLIBRI 2, O2, 0...15 l/min
- Standard BS PROBE UNIT -
Increments:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

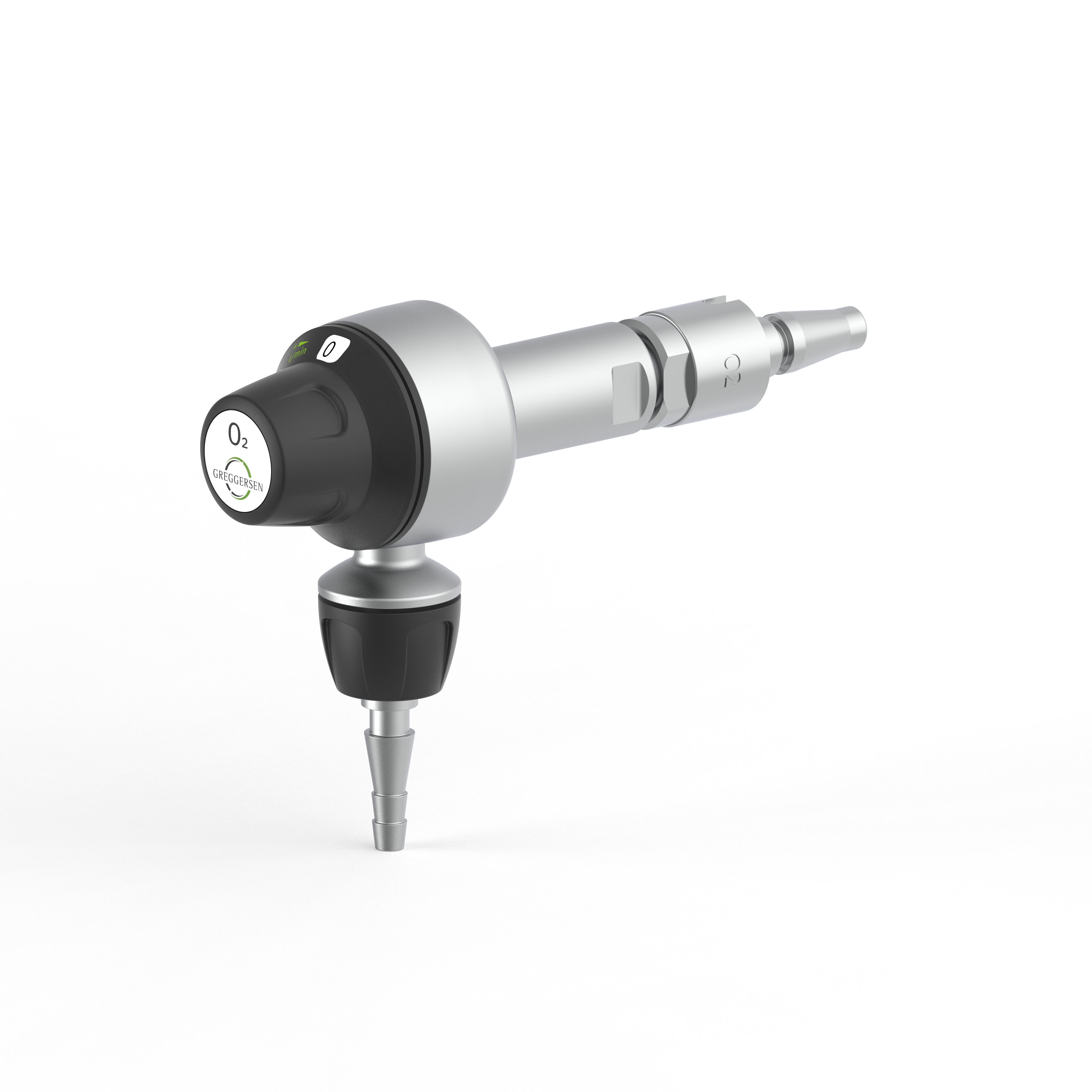

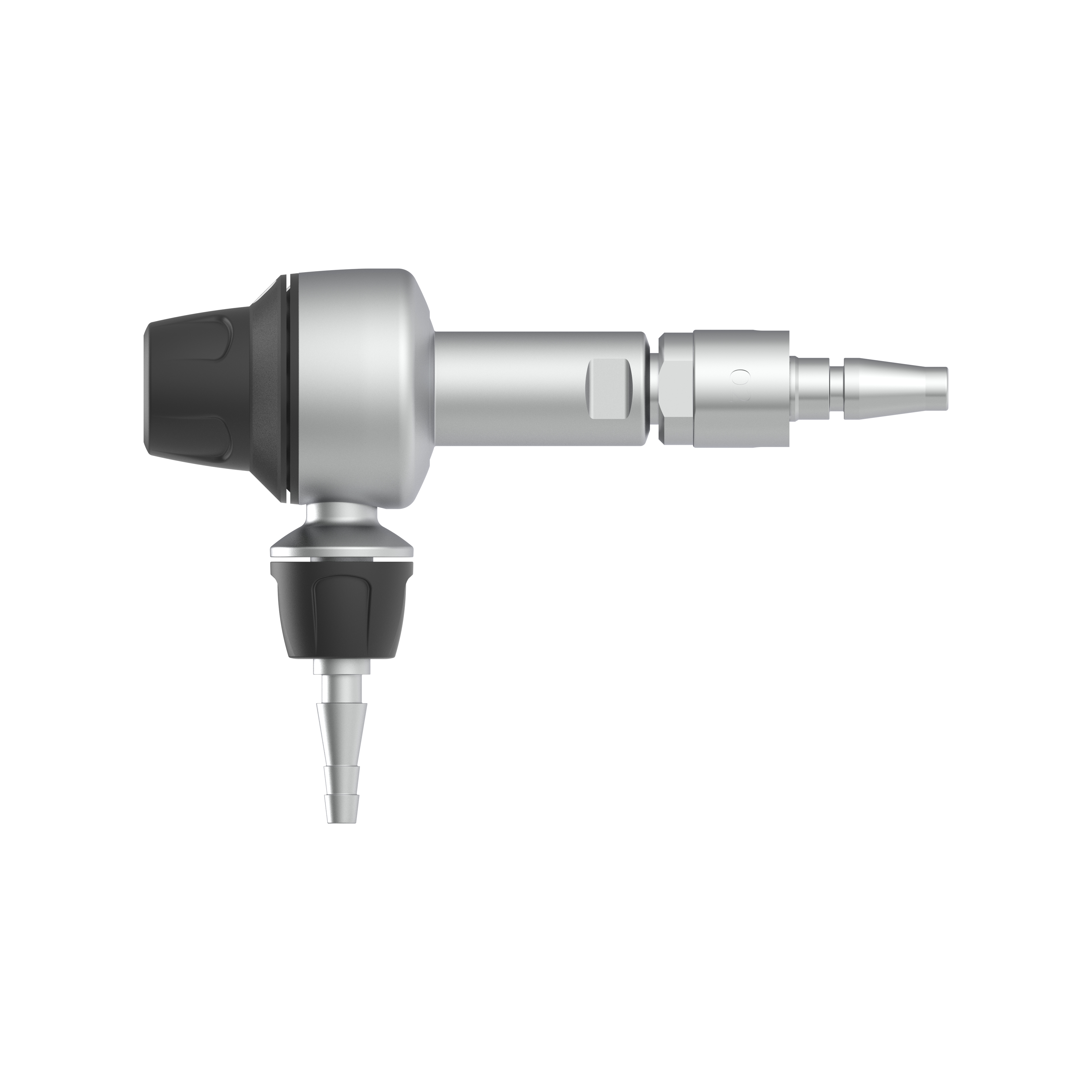

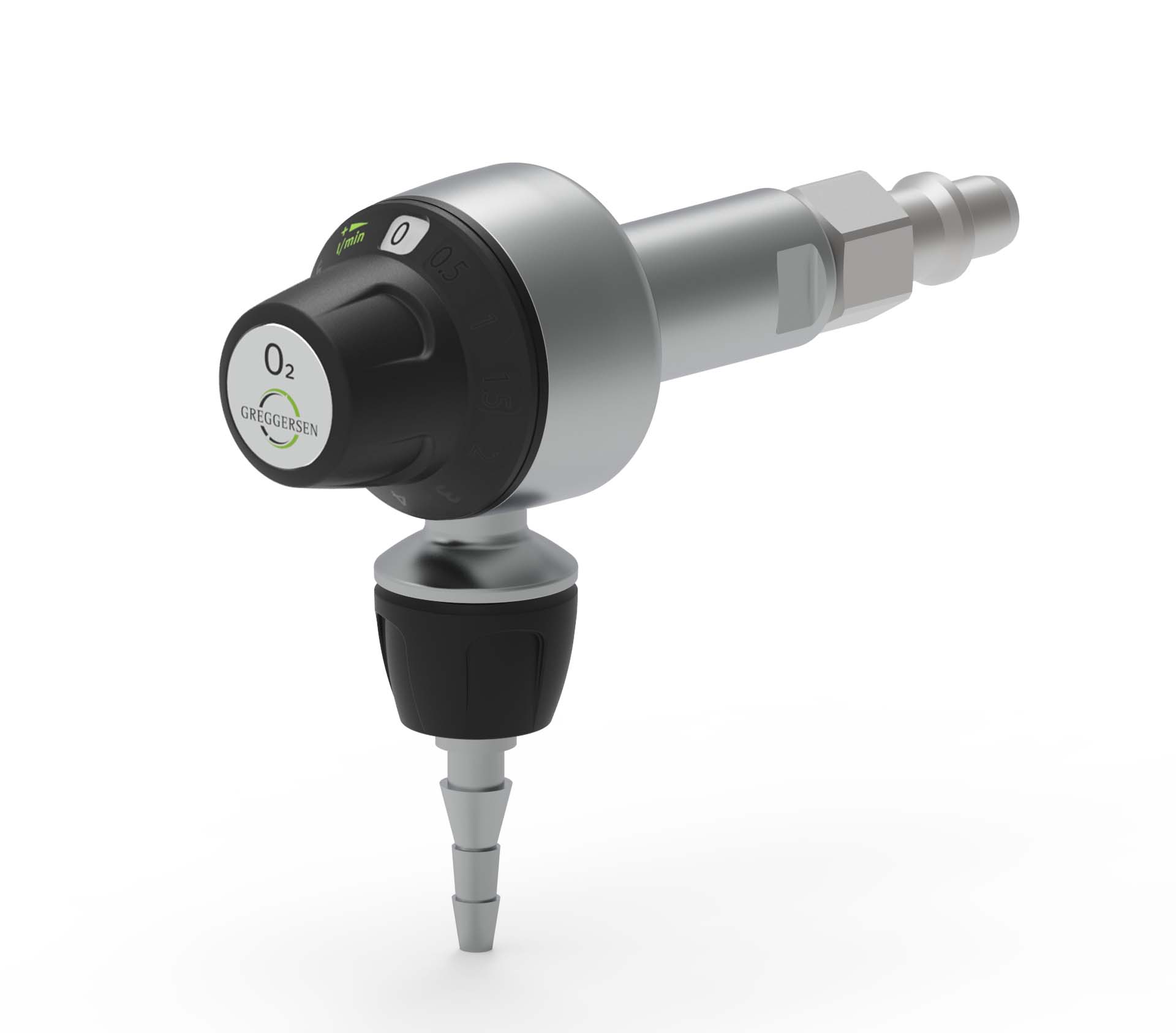

KOLIBRI 2 Compact-Stepflowmeter
with fixed orifices and selector device

Medical compact flowmeter for direct connection
to a terminal unit, with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment device and readability
of the set flow step possible from various viewing
directions and angles.

Frontal operating concept -> enhanced safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Inlet: Probe according to BRITISH STANDARD
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connector 9/16-18 UNF
