Mobile Systems

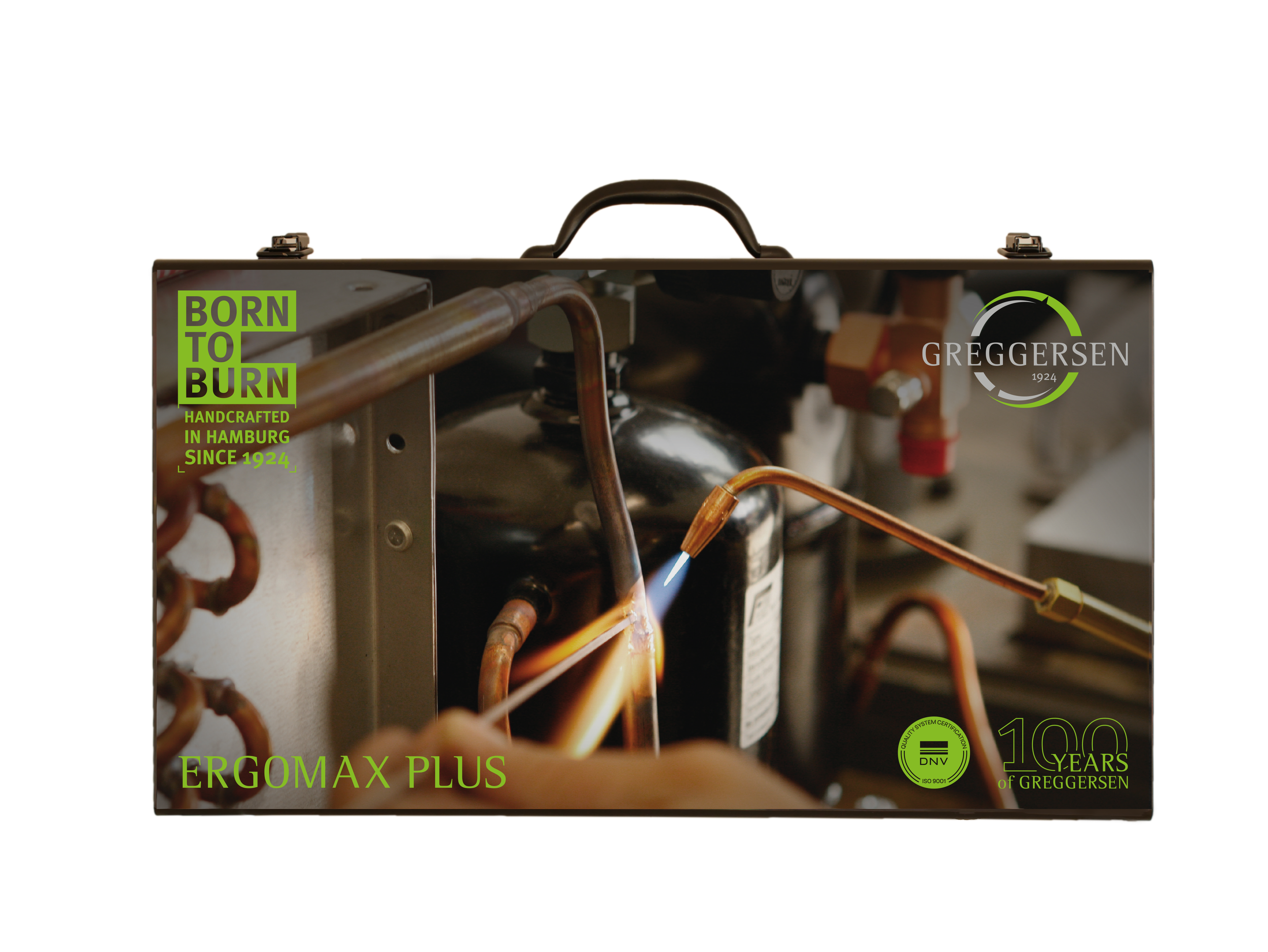

Brazing Unit Ergomax plus, 2 Inserts
Brazing unit Ergomax plus P/S, in sheet steel case consisting of: - 2l oxygen cylinder (unfilled) - 425g propane cylinder (unfilled) - Pressure regulator for oxygen - Pressure regulator for propane - Safety device fuel gas - Safety device oxygen - Decanting connector for oxygen - Decanting connector for propane - Multi-purpose spanner (reinforced) - 4.5m hose assembly Ergomax with screw connections - Brazing rod quiver - Handle Ergomax, with 2 flexible inserts P/S: 1) 1...2 2) 2...4 /* E/D/E-Nr. 49120010 */

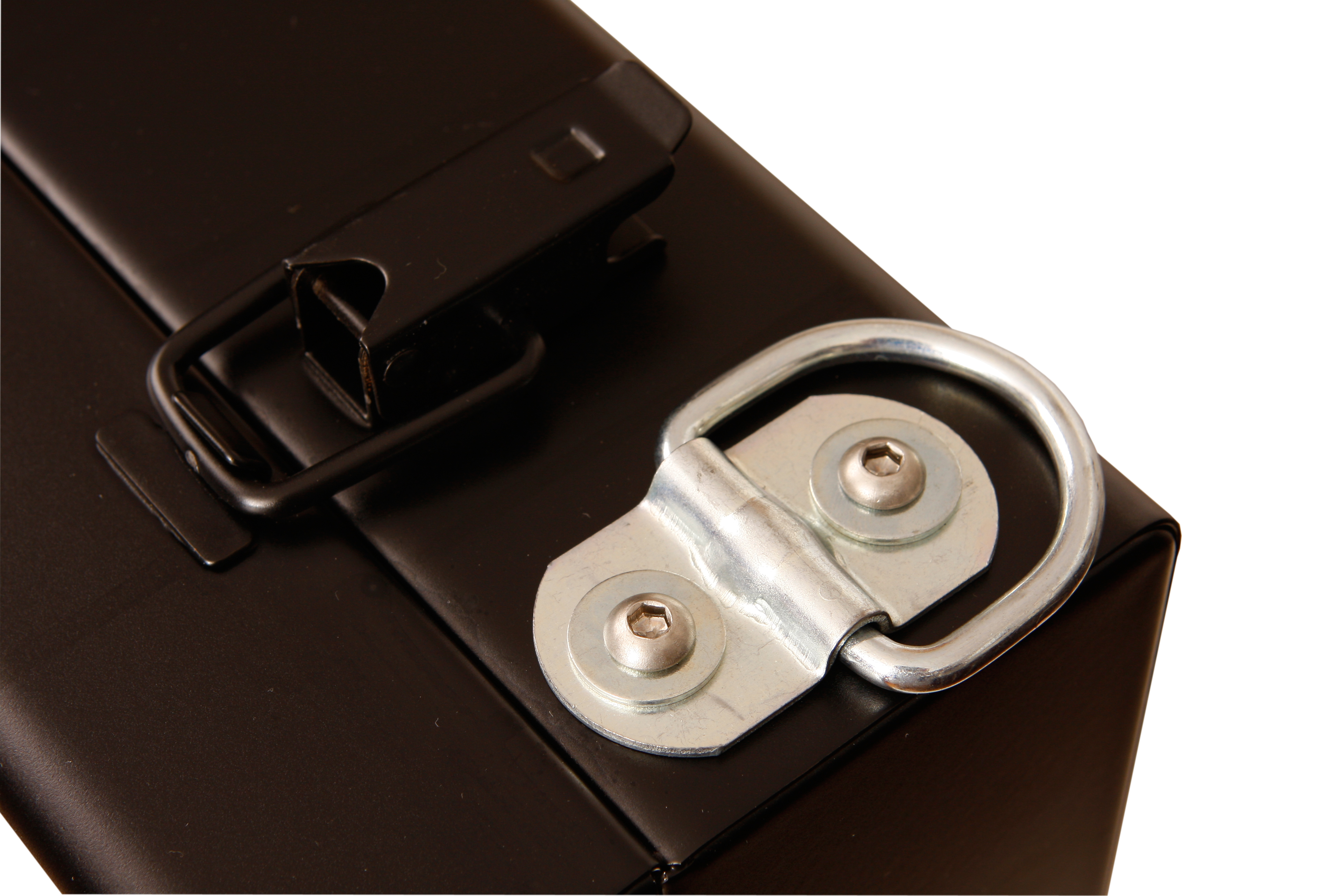

Brazing Unit Ergomax plus, 4 Inserts
Brazing unit Ergomax plus P/S, in sheet steel case consisting of: - 2l oxygen cylinder (unfilled), - 425g propane cylinder (unfilled), - Pressure regulator for oxygen - Pressure regulator for propane - Safety device for fuel gas - Safety device for oxygen - Decanting adaptor for oxygen - Decanting adaptor for propane - Multi-wrench (reinforced) - 4.5m hose assembly Ergomax with screw connections - Solder quiver - Ergomax handle, with 4 fixed inserts: 1) 0.5...1 2) 1...2 3) 2...4 4) 4...6

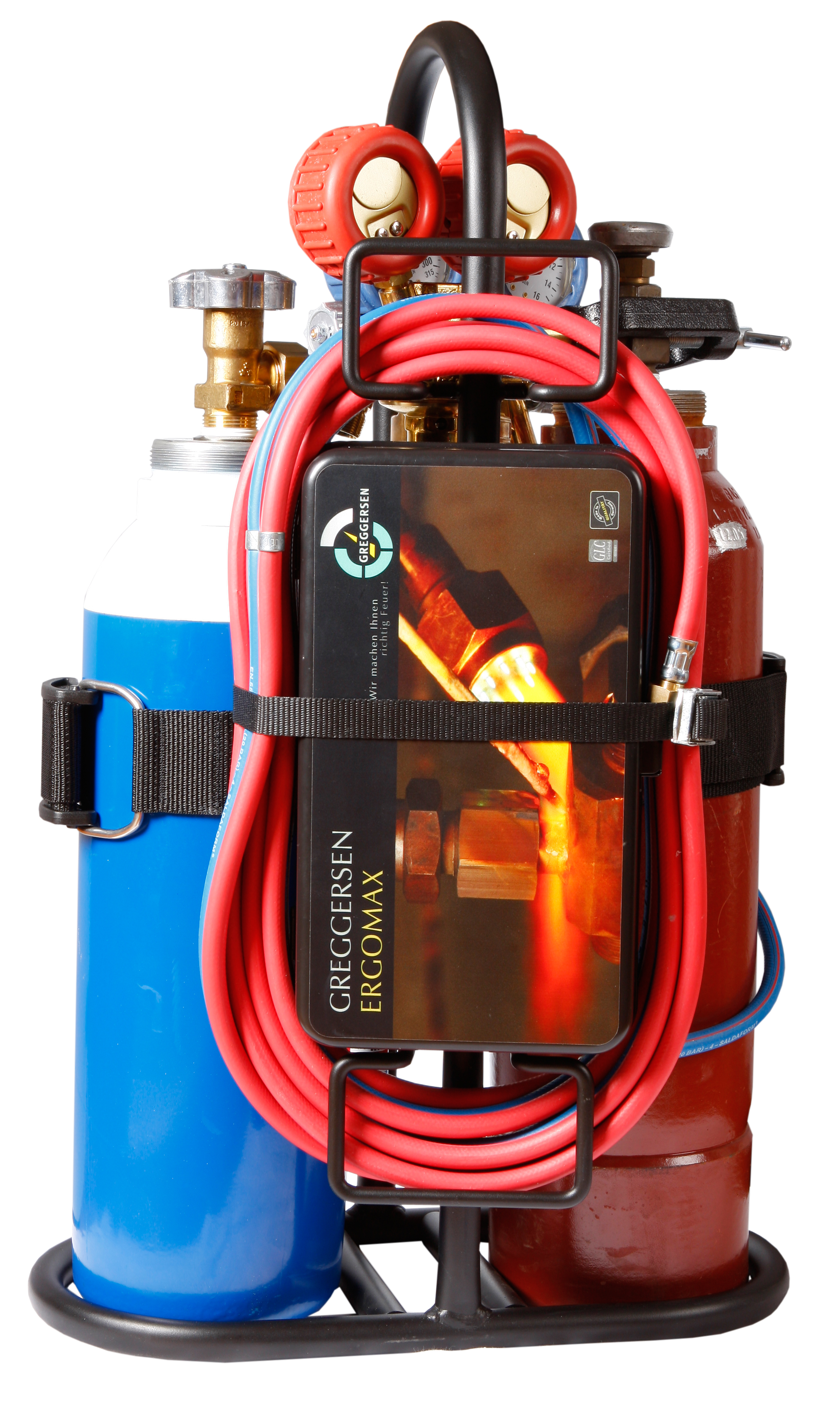

Portable Welding Unit Mod.85 + Case A/S
Welding Unit Mod. 85 + Case A/S in Carrying Frame -WITHOUT 5l Oxygen Cylinder -WITHOUT 5l Acetylene Cylinder Unit consisting of: - Pressure regulator with rubber cap for oxygen - Pressure regulator with rubber cap for acetylene - Fastening and securing straps - 5m twin hose (4+4) with fittings - Safety device fuel gas - Safety device oxygen - Ergomax Combi-Case with Ergomax handle Cutting insert with nozzles and 5 fixed inserts A/S 0.5 - 9 mm Medium: Acetylene / Oxygen Dimensions: approx. 660x400x200mm

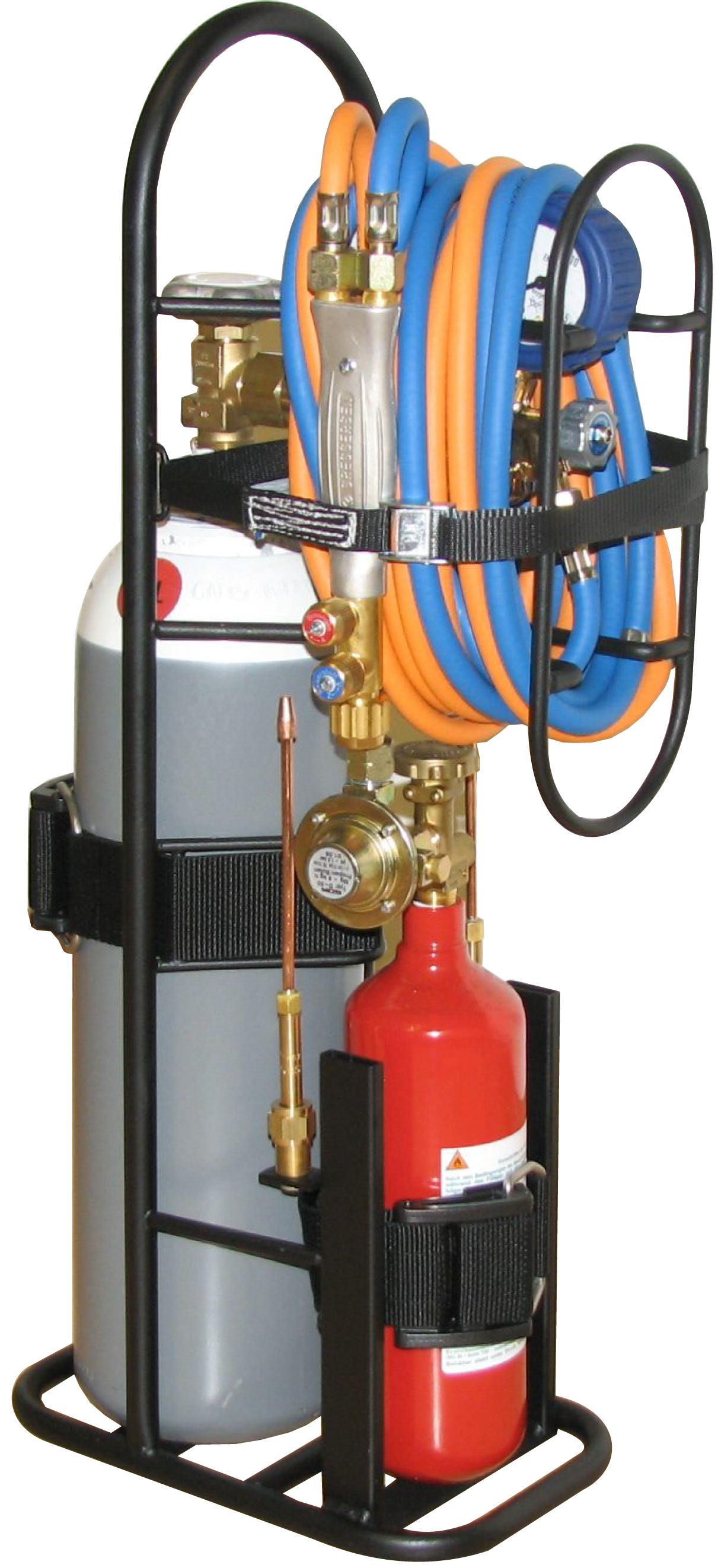

Brazing Unit PS88 5/1 P/S
Brazing Unit PS 88 5/1 in carrying frame Unit consisting of: - 5 l oxygen cylinder - 425 g propane cylinder (unfilled) - Pressure regulator with rubber cap for oxygen - Pressure regulator for propane - Fastening and securing straps - 4.5 m hose assembly with threaded connections - Safety device fuel gas - Safety device oxygen - Ergomax handle and 2 flexible inserts 1-2 + 2-4 mm Medium: Propane / Oxygen Dimensions: approx. 700x300x180mm /* EDE-Nr. 49120050 */
Decanting Connection Propane, DIN, W21.80x1/14
Decanting adaptor for propane, for filling or decanting 425 g propane cylinders, for cylinder connections to DIN 477, connection no. 1 Medium: Propane / C3H8 Thread: W21.80x1/14" female, left-hand (LH) to G3/8" female, left-hand (LH) Length: 75mm

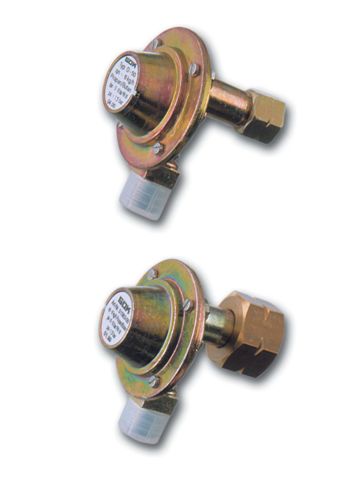

Propane Regulator fixed 1.5 bar, G3/8
Medium-pressure regulator propane, according to DIN4811 Part 3 with DVGW approval, preset to 150 kPa (1.5 bar), without pressure gauge, suitable for cylinders up to 0.5kg. Medium: Propane (C3H8) Inlet: G3/8" left-hand (LH) Outlet: G3/8" left-hand (LH) Consumption: 6kg/h (at 150 kPa)
Propane regulator fixed 1.5bar, W21.8 >5kg
Medium-pressure regulator propane, according to DIN4811 Part 3 with DVWG approval, permanently set to 1.5 bar, without pressure gauge, suitable for 5-33kg cylinders with combi connection. Medium: Propane (C3H8) Inlet: W21.8x1/14" left (LH) combi connection Outlet: G3/8" left (LH) Flow rate: 6kg/h (at 1.5 bar)

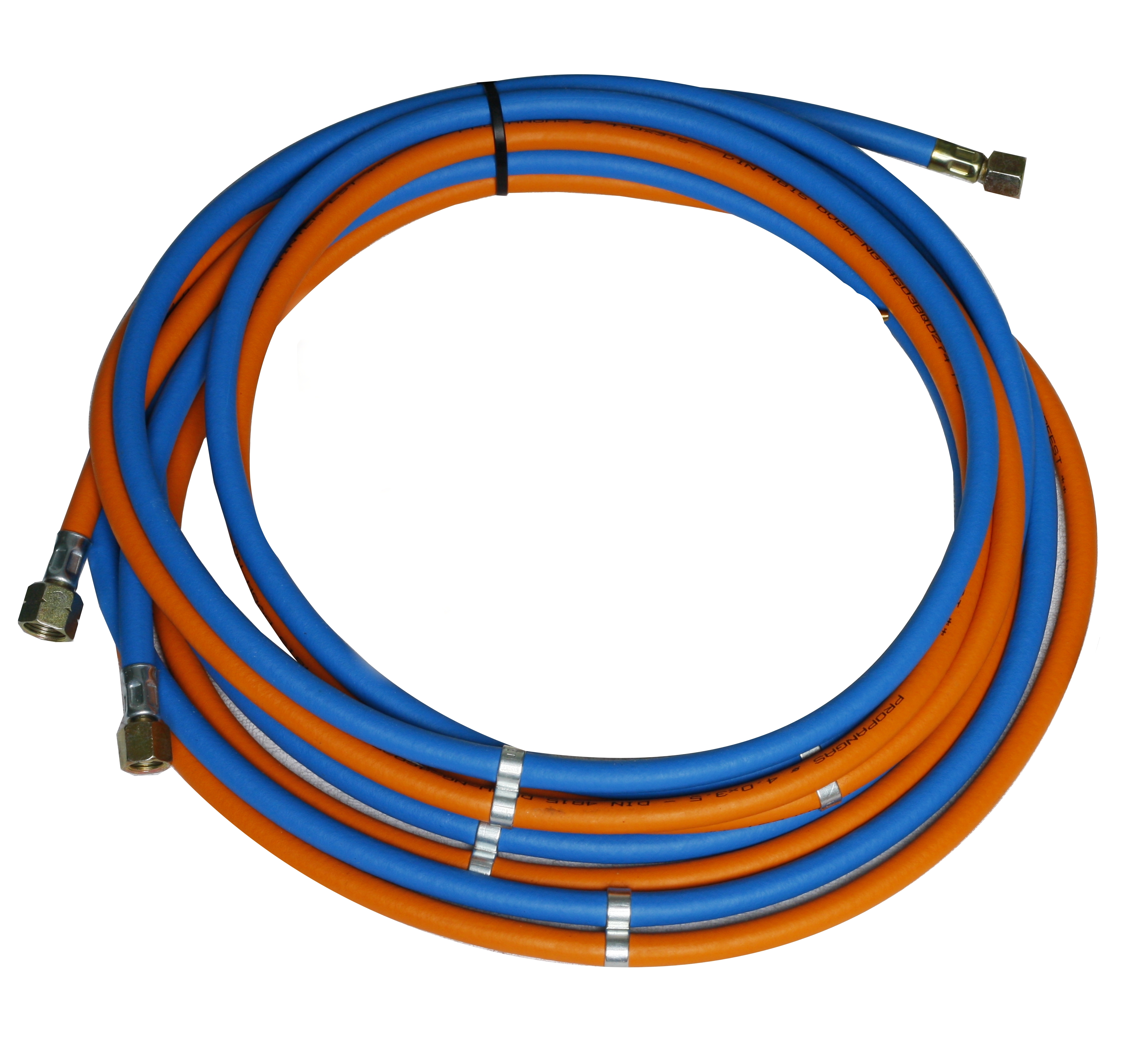

Hose Unit Ergomax P/S 4.5m comp.
Hose Unit Ergomax P/S, complete with screw connections Length:Â Â Â Â Â Â Â Â 4.5m Medium:Â Â Â Â Â Â Â Â Propane / Oxygen

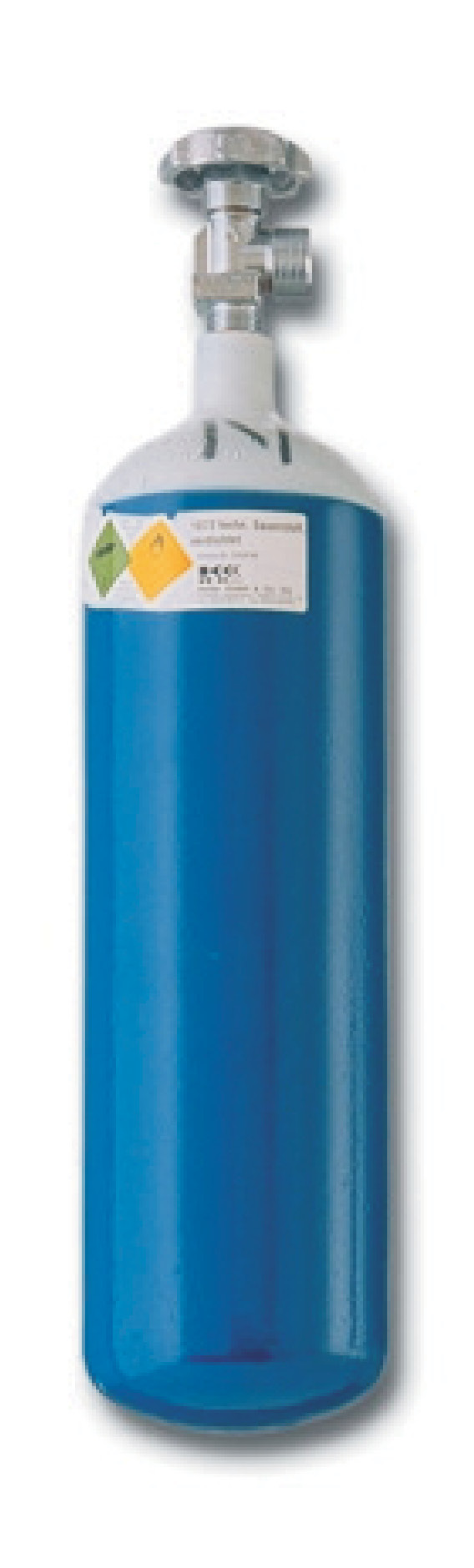

2 l Oxygen Cylinder swt (unfilled)
Technical steel cylinder for oxygen convex base without cage Size: 2 l H: 430 mm DIAMETER 101 mm without filling, new

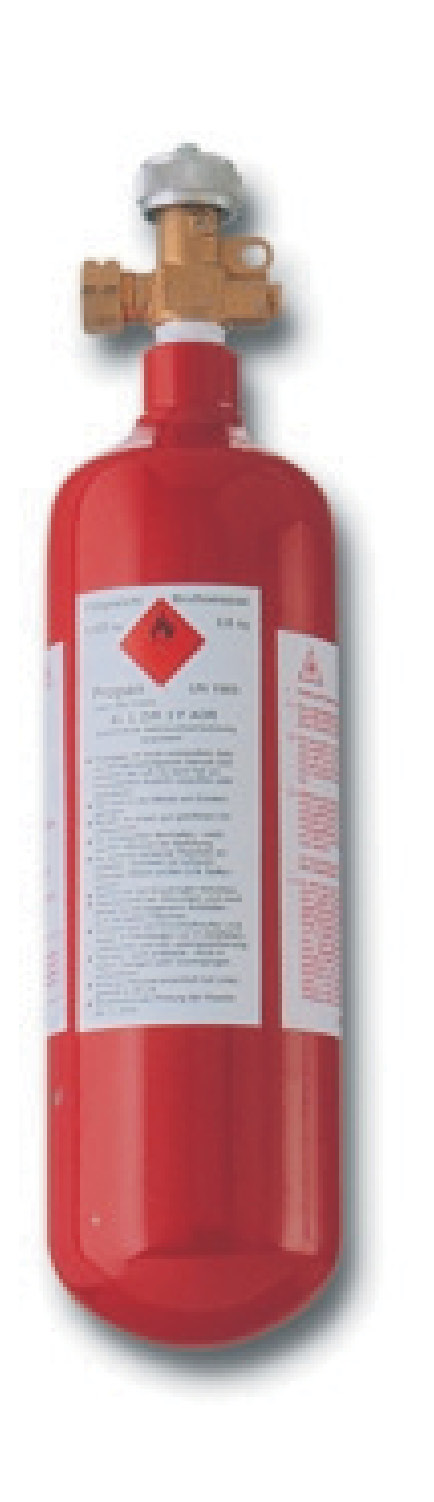

425 g Propane Cylinder (unfilled)
Propane cylinder 425 g without filling without base with valve Height: 355 mm Diameter: 83 mm
Brazing Unit Ergomax plus, Hard/Soft
Brazing and soft soldering unit Ergomax plus P/S,in sheet steel caseconsisting of:- 2l oxygen cylinder (unfilled),- 425g propane cylinder (unfilled),- Pressure regulator for oxygen - Pressure regulator for propane- Safety device for fuel gas- Safety device for oxygen- Decanting connector for oxygen- Decanting connector for propane- Multi-wrench (reinforced)- 4.5m hose unit Ergomax with threaded connections - Solder quiver- Handle Ergomax, with 1 flexible insert: 1) 1...2 2) Soft soldering insert/* E/D/E-Nr. 49120020 */
Carrying Frame Ergomax GO P/S Cartridge
Brazing Unit Ergomax GO P/S -Cartridge- in carrying frame consisting of: - Oxygen cartridge - MAPP gas cartridge - Pressure Regulator for oxygen cartridge with non-return valve - Gas regulating valve with non-return valve - 3.2m Ergomax hose unit with threaded connections - Ergomax handle, with 1 fixed insert 1-2mm P/S
Brazing Unit Ergomax plus Trolley HW
Brazing Unit Ergomax plus P/S, in Trolley HW consisting of: - 2l oxygen cylinder (unfilled) - 425g propane cylinder (unfilled) - Pressure regulator for oxygen - Pressure regulator for propane - Safety device for fuel gas - Safety device for oxygen - Decanting connector for oxygen - Decanting connector for propane - Multi-spanner (reinforced) - 4.5m hose assembly Ergomax with screw connections - Brazing rod quiver - Ergomax handle, with 2 flexible inserts P/S: 1) 1...2 2) 2...4 /* E/D/E-No. 49120010 */
Hose Unit Ergomax P/S 3.2m comp.
Hose Assembly Ergomax P/S, complete with screw connections Length:Â Â Â Â 3.2m Medium:Â Â Â Â Propane / Oxygen
GREGGERSEN Hose Package as Set
GREGGERSEN hose package as a set, Handle and insert screwed together °°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°° tied with cable ties, packed in boxes, consisting of: -Hose unit 3.2m complete -ERGOMAX handle -ERGOMAX brazing insert 1-2 P/S -Safety device for oxygen + fuel gas to screw onto the pressure regulator
Flexible, portable soldering and welding solutions.
Our mobile systems provide flexibility and high performance for on-site use, on construction sites or at changing workplaces. They combine our robust engineering with easy operation and are ideal for professionals who expect flexibility and reliability in a single unit.
