Kolibri 2 double rail NIST O2 standard

KOLIBRI 2, O2, 0...15 l/min
- Standard - Twin - RAIL UNIT -
Selection steps (2x):
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

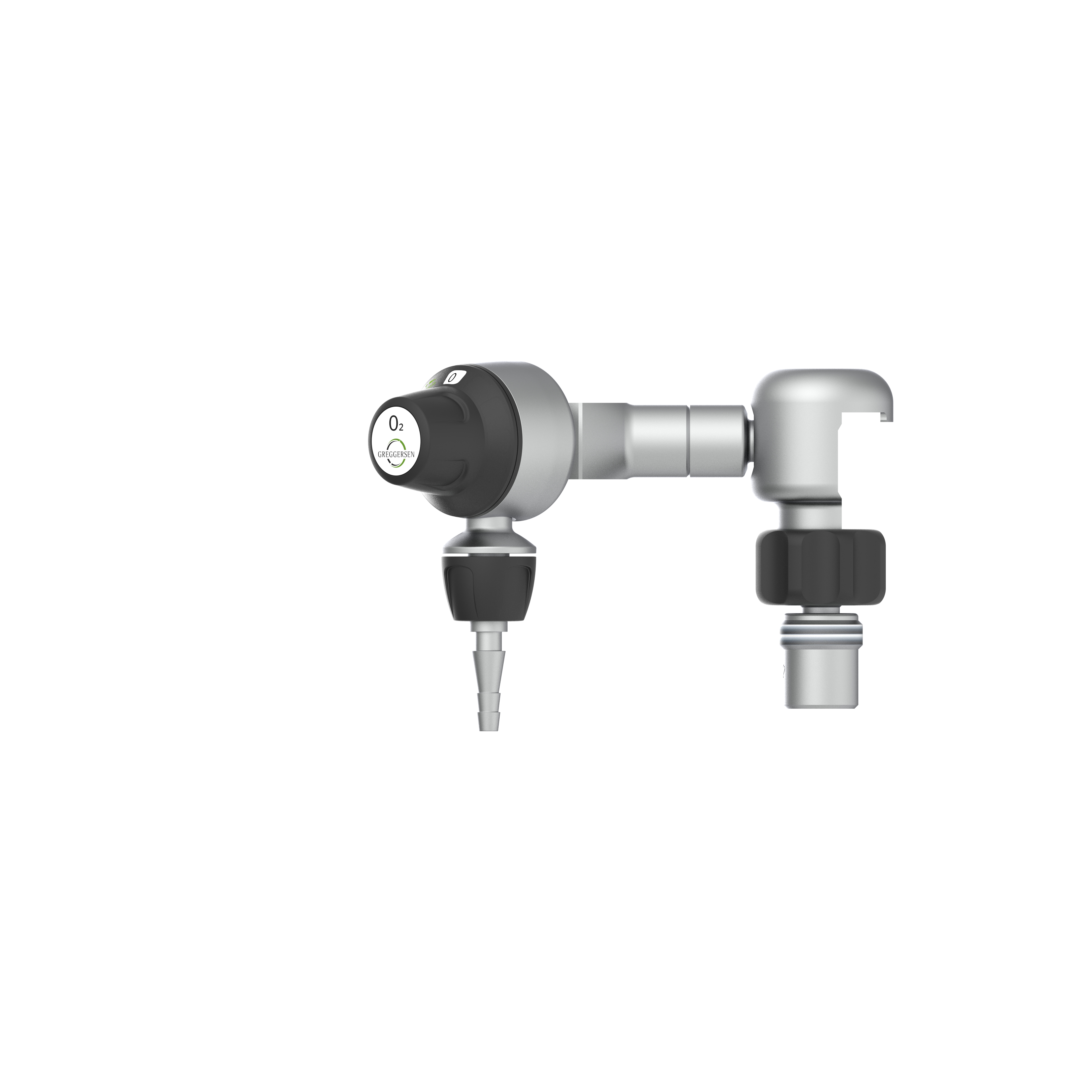

Twin-step compact flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for mounting on an
equipment rail 25x10mm; gas inlet NIST integrated in
rail clamp; with handwheel - incrementally adjustable
flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment device and readability
of set flow step possible from various viewing positions
and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Connection: NIST according to DIN EN ISO 18082
Outlet:     9/16-18 UNF
Performance: 0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
2x 900619 - Hose connector 9/16-18 UNF
