Area Control Units
Ventus evo 2, 1-3fold
Ventus evo 2 – Area Valve Service Unit 1-3 ways for medical gases and vacuum without viewing window and with push-button without key Ventus evo 2 is an area valve service unit according to DIN EN ISO 7396-1 and HTM 02-01 for reliable monitoring and control of medical gases and vacuum. Designed to accommodate up to three valve inserts (available separately). Ensures safe passage of the respective media. Integrated pressure monitoring is carried out via sensors; there is also the possibility for shut-off in case of emergency or installation, as well as emergency supply via a NIST connection. Monitoring of operating states and the output of alarm and warning messages are handled via the integrated area monitor. An on-board relay for collective fault signals is integrated as standard. Technical Data Mains connection: 230 V, 50 Hz Design: Flush-mounted / cavity wall mounting Plaster compensation: max. 25 mm Front part dimensions (W × H × D): 372 × 492 × 17.5 mm Rear part dimensions (W × H × D): 328 × 470 × 70.5 mm Medical device: Class IIa Configuration Gas 1: ### please specify! ### Gas 2: ### please specify! ### Gas 3: ### please specify! ### Language: German Pressure unit: bar Sensor inputs: –1 to +6 bar Alarm limits O₂, AIR, N₂O, CO₂, N₂: 500 kPa ± 20 % Alarm limit MA4: 400 kPa ± 20 % Alarm limit VAC: –40 kPa Alarm limit AIR-800: 800 kPa ± 20 % Alarm limit SA7: 700 kPa ± 20 % Door alarm: yes / no Relay module: no / 1 / 2 Modbus module: yes / no Network: activated / deactivated
Ventus evo 2, 1-3fold FS
Ventus evo 2 – Bereichskontroll- und Absperreinheit 1-3fach für medizinische Gase und Vakuum mit Sichtfenster und mit Schloss & Schlüssel Ventus evo 2 ist ein Bereichskontroll- und Absperreinheit gemäß DIN EN ISO 7396-1 und HTM 02-01 zur zuverlässigen Überwachung und Kontrolle medizinischer Gase und Vakuum. Für die Aufnahme von bis zu drei Ventileinsätzen (separat erhältlich) ausgelegt. Gewährleistet eine sichere Durchleitung der jeweiligen Medien. Die integrierte Drucküberwachung erfolgt über Sensoren; zusätzlich besteht die Möglichkeit zur Absperrung im Not- oder Montagefall sowie zur Noteinspeisung über einen NIST-Anschluss. Die Überwachung der Betriebszustände sowie die Ausgabe von Alarm- und Warnmeldungen erfolgen über den integrierten Bereichsmonitor. Ein On-Board-Relais zur Sammelstörmeldung ist serienmäßig integriert. Technische Daten Netzanschluss: 230 V, 50 Hz Bauform: Unterputz- / Hohlwandmontage Putzausgleich: max. 25 mm Maße Vorderteil (B × H × T): 372 × 492 × 17,5 mm Maße Hinterteil (B × H × T): 328 × 470 × 70,5 mm Medizinprodukt: Klasse IIa Konfiguration Gas 1: ### bitte angeben! ### Gas 2: ### bitte angeben! ### Gas 3: ### bitte angeben! ### Sprache: deutsch Druckeinheit: bar Sensoreingänge: –1 bis +6 bar Alarmgrenzen O₂, AIR, N₂O, CO₂, N₂: 500 kPa ± 20 % Alarmgrenze MA4: 400 kPa ± 20 % Alarmgrenze VAC: –40 kPa Alarmgrenze AIR-800: 800 kPa ± 20 % Alarmgrenze SA7: 700 kPa ± 20 % Türalarm: ja / nein Relaismodul: nein / 1 / 2 Modbus-Modul: ja / nein Netzwerk: aktiviert / nicht aktiviert
Ventus evo 2, 4-6fold S
Ventus evo 2 – Zone Valve Box 4-6-way for medical gases and vacuum without viewing window and with lock & key Ventus evo 2 is a zone valve box according to DIN EN ISO 7396-1 and HTM 02-01 for reliable monitoring and control of medical gases and vacuum. Designed to accommodate up to six valve inserts (sold separately). Ensures safe distribution of the respective media. Integrated pressure monitoring via sensors; additional options for shut-off in emergency or installation cases and emergency supply via a NIST connection. Monitoring of operating states and output of alarm and warning messages via the integrated zone monitor. An on-board relay for collective fault signals is integrated as standard. Technical data Power supply: 230 V, 50 Hz Design: Flush-mounted / cavity wall mounting Plaster compensation: max. 25 mm Front dimensions (W × H × D): 612 × 492 × 17.5 mm Rear dimensions (W × H × D): 568 × 470 × 70.5 mm Medical device: Class IIa Configuration Gas 1: ### please specify! ### Gas 2: ### please specify! ### Gas 3: ### please specify! ### Gas 4: ### please specify! ### Gas 5: ### please specify! ### Gas 6: ### please specify! ### Language: German Pressure unit: bar Sensor inputs: –1 to +6 bar Alarm limits O₂, AIR, N₂O, CO₂, N₂: 500 kPa ± 20 % Alarm limit MA4: 400 kPa ± 20 % Alarm limit VAC: –40 kPa Alarm limit AIR-800: 800 kPa ± 20 % Alarm limit SA7: 700 kPa ± 20 % Door alarm: yes / no Relay module: no / 1 / 2 Modbus module: yes / no Network: activated / not activated
Ventus evo 2, 4-6fold FS
Ventus evo 2 – Area Valve Service Unit 4-6 fold for medical gases and vacuum with viewing window and with lock & key Ventus evo 2 is an area valve service unit according to DIN EN ISO 7396-1 and HTM 02-01 for reliable monitoring and control of medical gases and vacuum. Designed to accommodate up to six valve inserts (sold separately). Ensures safe passage of the respective media. Integrated pressure monitoring is provided by sensors; additionally, there is the option for shut-off in case of emergency or installation, as well as emergency supply via a NIST connection. Monitoring of operating states and output of alarm and warning messages are handled via the integrated area monitor. An on-board relay for collective fault signals is integrated as standard. Technical data Mains connection: 230 V, 50 Hz Design: Flush-mounted / cavity wall mounting Plaster compensation: max. 25 mm Front part dimensions (W × H × D): 612 × 492 × 17.5 mm Rear part dimensions (W × H × D): 568 × 470 × 70.5 mm Medical device: Class IIa Configuration Gas 1: ### please specify! ### Gas 2: ### please specify! ### Gas 3: ### please specify! ### Gas 4: ### please specify! ### Gas 5: ### please specify! ### Gas 6: ### please specify! ### Language: English Pressure unit: bar Sensor inputs: –1 to +6 bar Alarm limits O₂, AIR, N₂O, CO₂, N₂: 500 kPa ± 20 % Alarm limit MA4: 400 kPa ± 20 % Alarm limit VAC: –40 kPa Alarm limit AIR-800: 800 kPa ± 20 % Alarm limit SA7: 700 kPa ± 20 % Door alarm: yes / no Relay module: no / 1 / 2 Modbus module: yes / no Network: activated / not activated
Ventus evo 2, Surface-mounted Cover Set
Ventus evo 2, surface-mounted cover set consisting of two surface-mounted covers for the sides, and self-adhesive spacers for flush mounting on the wall. Suitable for all sizes of the Ventus evo 2

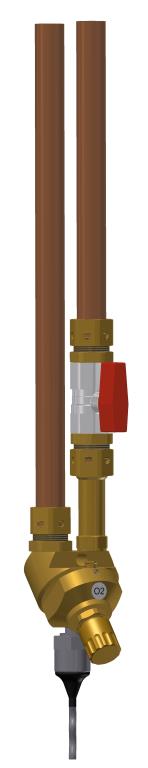

Ventus 22 mm valve insert O2
Valve insert for Ventus 22 mm Gas type: O2 Version complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point - Physical separation point - Gas type labelling
Ventus 22 mm valve insert AIR
Valve insert for Ventus 22 mm Gas type: AIR Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point - Physical separation point - Gas type labelling
Ventus 22 mm valve insert VAC
Valve insert for Ventus 22 mm Gas type: VAC Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge -1...0 bar - Pressure sensor -1...6 - NIST emergency inlet point - Physical isolation point - Gas type labelling
Ventus 22 mm Valve Insert AIR-800
Valve insert for Ventus 22 mm Gas type: AIR-800 Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 - NIST emergency inlet point - Physical separation point - Gas type labelling
Ventus 22mm Valve Insert AIR Sensor16 b
Valve insert for Ventus 22mm Gas type: AIR Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 bar - NIST emergency inlet point - Physical disconnection point - Gas type labelling
Ventus 22 mm Valve Insert N2O
Valve insert for Ventus 22 mm Gas type: N2O Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point - Physical disconnection point - Gas type labelling

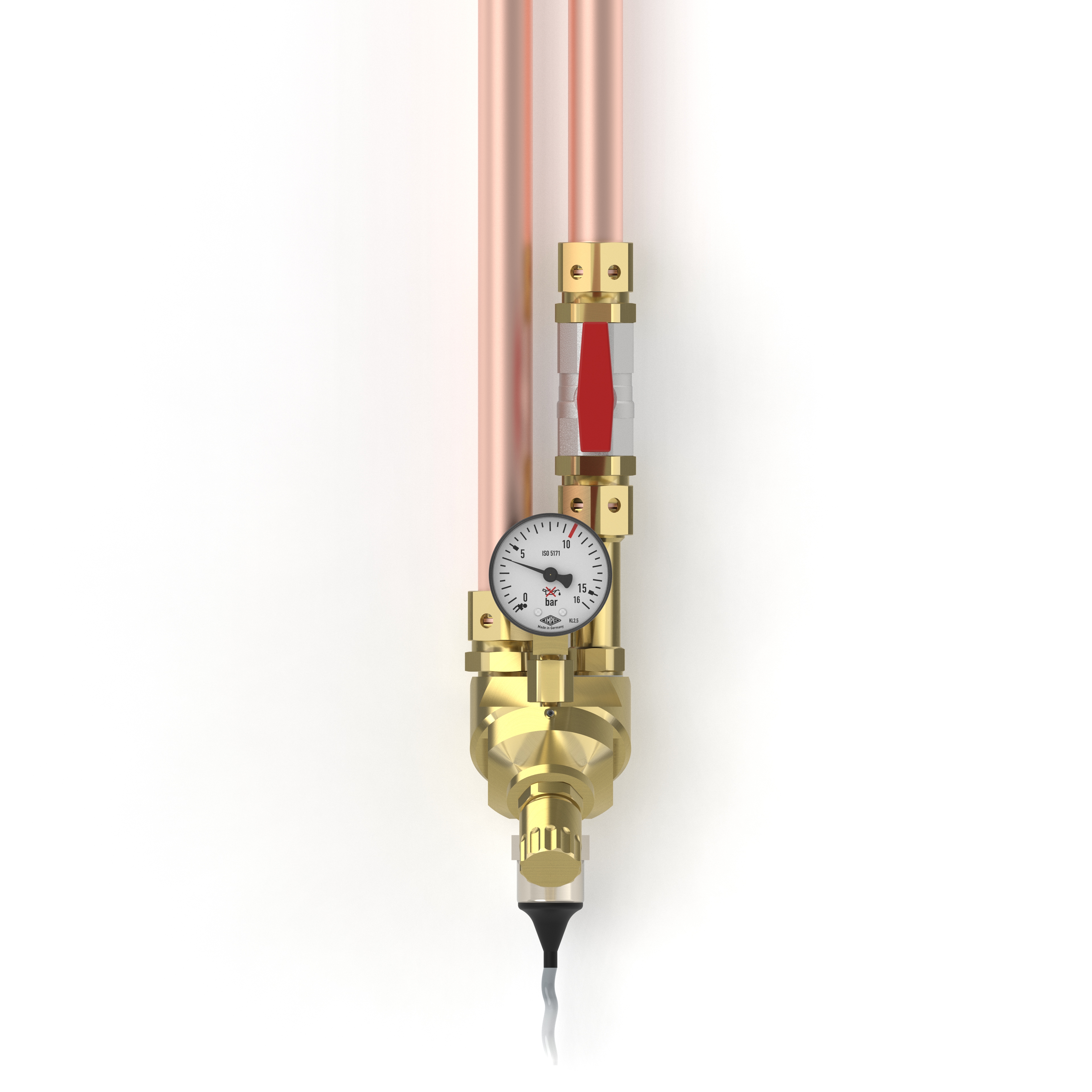

Ventus 22 mm valve insert CO2
Valve insert for Ventus 22 mm Gas type: CO2 Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point - Physical separation point - Gas type labelling
Ventus 22 mm Valve Insert AIR7
Valve insert for Ventus 22 mm Gas type: AIR7 Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 - NIST emergency inlet point AIR-800 - Physical separation point - Gas type labelling AIR7
Ventus 22 mm valve insert N2
Valve insert for Ventus 22 mm Gas type: N2 Design complies with DIN EN ISO 7396-1 Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 bar - NIST emergency inlet point - Physical disconnection point - Gas type labelling

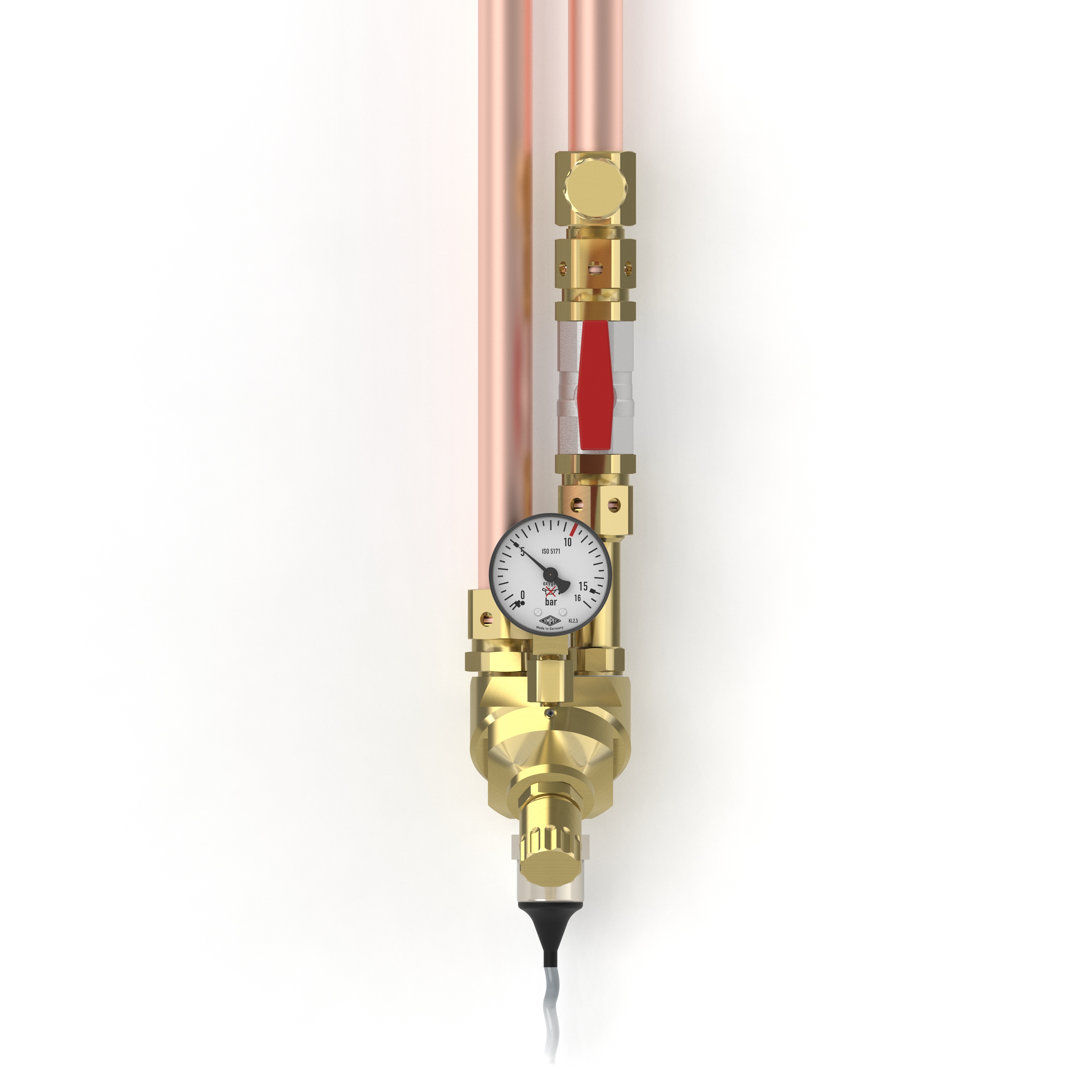

Ventus 22 mm valve insert +NIST O2
Valve insert for Ventus 22 mm Gas type: O2 Version complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point upstream of shut-off valve - NIST emergency inlet point downstream of shut-off valve - Physical disconnection point - Gas type labelling

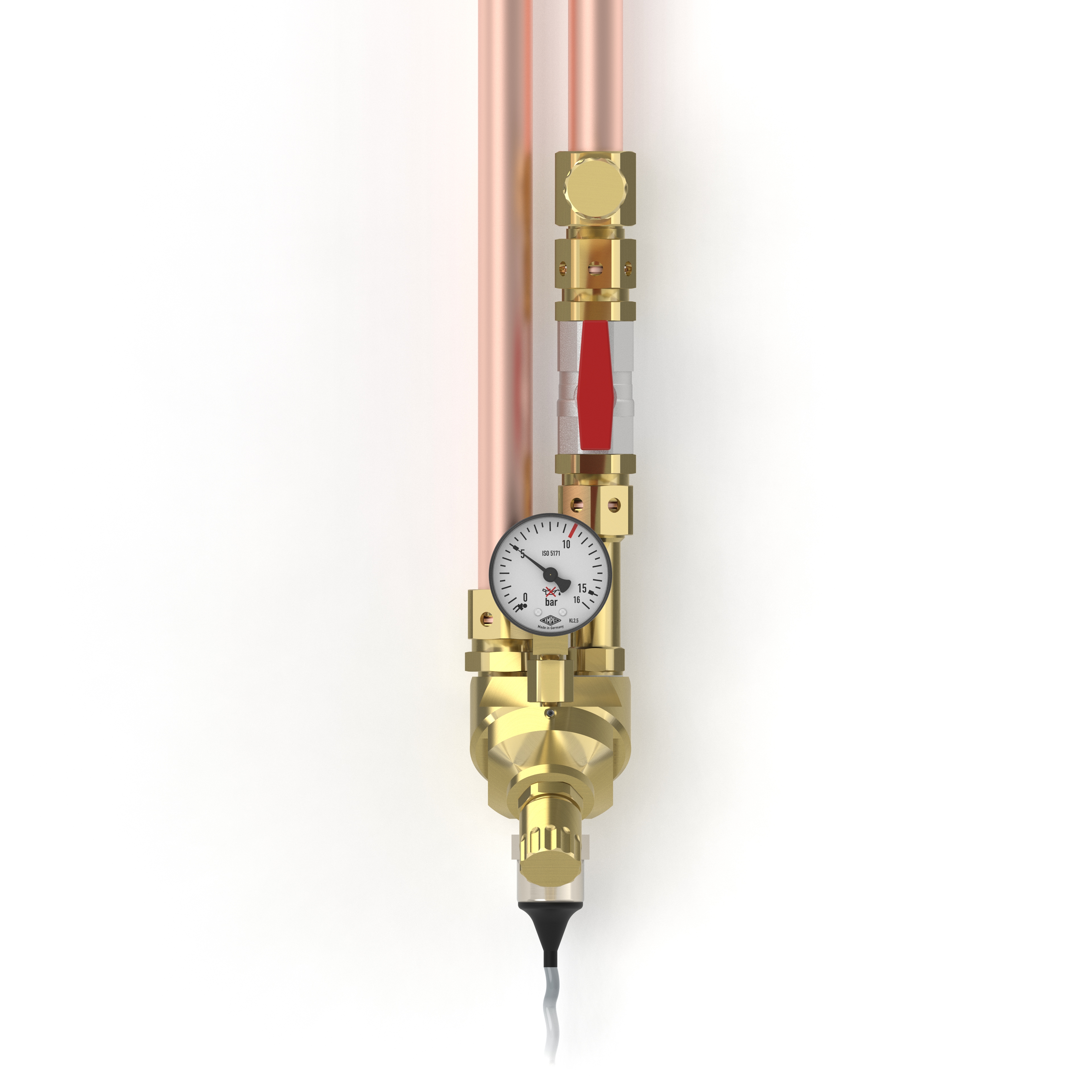

Ventus 22 mm valve insert +NIST AIR
Valve insert for Ventus 22 mm Gas type: AIR Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point upstream of shut-off valve - NIST emergency inlet point downstream of shut-off valve - Physical separation point - Gas type labelling
Ventus 22 mm Valve Insert +NIST VAC
Valve insert for Ventus 22 mm Gas type: VAC Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU pipe 22mm inlet / outlet - Pressure gauge -1...0 bar - Pressure sensor -1...6 - NIST emergency inlet point upstream of shut-off valve - NIST emergency inlet point downstream of shut-off valve - Physical isolation point - Gas type labelling
Ventus 22 mm valve insert +NIST N2O
Valve insert for Ventus 22 mm Gas type: N2O Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point upstream of shut-off valve - NIST emergency inlet point downstream of shut-off valve - Physical disconnection point - Gas type labelling
Ventus 22 mm valve insert +NIST CO2
Valve insert for Ventus 22 mm Gas type: CO2 Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor -1...6 - NIST emergency inlet point upstream of shut-off valve - NIST emergency inlet point downstream of shut-off valve - Physical disconnection point - Gas type labelling
Ventus 22 mm Valve Insert +NIST AIR-800
Valve insert for Ventus 22 mm Gas type: AIR-800 Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve unit consisting of: - Shut-off valve DN 20, G3/4" - CU tube 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 - NIST emergency inlet point upstream of the shut-off valve - NIST emergency inlet point downstream of the shut-off valve - Physical separation point - Gas type labelling
Ventus 22 mm Valve Insert +NIST AIR7
Valve insert for Ventus 22 mm Gas type: AIR7 Design complies with DIN EN ISO 7396-1 and HTM 02-01. Valve assembly consisting of: - Shut-off valve DN 20, G3/4" - CU-pipe 22mm inlet / outlet - Pressure gauge 0...16 bar - Pressure sensor 0...16 - NIST emergency inlet point AIR-800 upstream of shut-off valve - NIST emergency inlet point AIR-800 downstream of shut-off valve - Physical separation point - Gas type labelling AIR7
Ventus 22 mm Valve Insert +NIST N2
Ventileinsatz für Ventus 22 mm Gasart : N2 Ausführung erfüllt die DIN EN ISO 7396-1 und die HTM 02-01. Ventilbaugruppe bestehend aus: - Absperrventil DN 20, G3/4" - CU-Rohr 22mm Eingang / Ausgang - Manometer 0...16 bar - Drucksensor 0...16 bar - NIST Noteinspeisepunkt vor dem Absperrventil - NIST Noteinspeisepunkt hinter dem Absperrventil - Physische Trennstelle - Gasartbeschriftung
Repair Kit Mano Ventus VAC
VENTUS (Basic, Basic Plus, Spy + Glass) Repa-kit vacuum pressure gauge consisting of: Pressure gauge 50 rd Measuring range: -1 - 0 bar Vacuum Housing: black steel incl. O-ring suitable for Valve block VENTUS (Basic, Basic Plus, Spy + Glass)
Rep-Kit Mano Ventus neutral
VENTUS Repair kit pressure gauge neutral consisting of: Pressure gauge 50 rd Measuring range: 0-16 bar for neutral gases (AIR, N2O, CO2, AIR-800) Housing: black steel !! Oil- and grease-free incl. O-ring suitable for Valve block VENTUS
Safety and clarity for every supply area.
Our Ventus area control units enable monitoring, shut-off and control of individual sections within the medical gas supply. They provide transparency regarding supply status and support rapid responses during maintenance or malfunctions. Ventus stands for high operational safety, clear status displays and structured gas distribution.
