Switching Systems
Switch-over unit MediControl MC2025E
Switchover Station MediControl 2025E Flow rate: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Electr. connection: 230 V AC System language: German Mode: 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2025 1 x Pipe set MC2025 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, forwarding of messages via potential-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority switching in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover
Switch-over unit MediControl MC2025P
MediControl 2025P Switch-over System Capacity: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Gas type: +++++++++++++++ Consisting of: 1 x MC2025P 1 x Set of pipes MC2025P Pneumatically controlled gas supply system for two-sided cylinder manifold supply, design according to DIN EN ISO 7396-1, automatic switch-over, priority switching with lever, gauge display for both supply sources and line pressure, pressure monitoring with contact sensors, two-stage pressure reduction, second stage with redundant design, includes control gauges, high-pressure and low-pressure contact sensors and emergency inlet (NIST), fully assembled on mounting plate, housing with viewing window
Switching Station MediControl MC2025R
MediControl 2025R Switchover System Flow rate: 25 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Elec. connection: 230 V AC System language: German Mode: 2 cylinder banks and reserve supply Gas type: +++++++++++++++ Consisting of: 1 x MC2025 1 x Set of pipes MC2025 + reserve inlet pipe Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, transmission of messages via floating contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority switching in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover; incl. connection option for reserve supply
Switch-over unit MediControl MC2050E
Changeover station MediControl 2050E Capacity: 50 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar El. connection: 230 V AC System language: English Mode: 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2050 1 x Pipe set MC2050 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, transmission of messages via floating contacts, sensory pressure monitoring, 2-stage pressure reduction, dual-redundant 2nd stage, pneum. priority circuit in case of mains failure, with pressure gauges and emergency supply option (NIST), fully assembled on mounting plate incl. cover

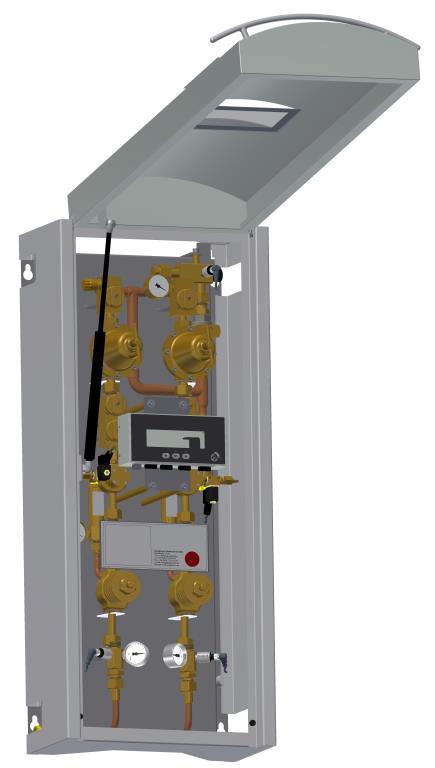

Control Unit MediControl MC2050T
Switchover Station MediControl 2050T Capacity: 50 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar El. connection: 230 V AC System language: English Mode: Tank and 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2050 1 x Pipe set MC2050 1 x PR tank panel (327800 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, forwarding of messages via potential-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority circuit in case of power failure, with pressure gauges and emergency inlet (NIST), fully assembled on mounting plate incl. cover; Additionally: PR panel for tank supply with shut-off valve, pressure sensor, emergency inlet (NIST)
Automatic Switchover Manifold MediControl MC2050R
Switchover Station MediControl 2050R Capacity: 50 m³/h Inlet pressure: max. 200 bar Outlet pressure: 5 bar +/- 0.5 bar Elec. connection: 230 V AC System language: German Mode: 2 cylinder banks and reserve Gas type: +++++++++++++++ Consisting of: 1 x MC2050 1 x Set of pipes MC2050 + inlet pipe reserve Microprocessor-controlled gas supply system for 2-sided cylinder supply, designed according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, message forwarding via floating contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority circuit in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover; incl. connection option for the reserve supply
Switching Station MediControl MC2100E
Changeover Unit MediControl 2100E Capacity: 100 m³/h Inlet pressure: max. 20000 kPa (200 bar Outlet pressure: 500 kPa +/- 50 kPa (5 bar +/- 0.5 bar Elec. connection: 230 V AC System language: German Mode: 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2100 1 x Pipe set MC2100 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, transmission of messages via volt-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority circuit in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover
Switching Station MediControl MC2100T
Switchover Station MediControl 2100T Capacity: 100 m³/h Inlet pressure: max. 20000 kPa (200 bar) Outlet pressure: 500 kPa +/- 50 kPa (5 bar +/- 0.5 bar) Elec. connection: 230 V AC System language: German Mode: Tank and 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2100 1 x Set of pipes MC2100 1 x PR tank panel (327800) Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, forwarding of messages via potential-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority circuit in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover; Additionally: PR panel for tank supply with shut-off valve, pressure sensor, emergency feed option (NIST)
Switch-over Unit MediControl MC2100R
Changeover station MediControl 2100R Capacity: 100 m³/h Inlet pressure: max. 20,000 kPa (200 bar) Outlet pressure: 500 kPa +/- 50 kPa (5 bar +/- 0.5 bar) El. connection: 230 V AC System language: German Mode: 2 cylinder manifolds and reserve Gas type: +++++++++++++++ Consisting of: 1 x MC2100 1 x Pipe set MC2100 + Inlet pipe reserve Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, forwarding of messages via volt-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority switching in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover, incl. connection option for reserve supply
Switch-over unit MediControl MC2100 w/o tan
Switching Station MediControl 2100T Capacity: 100 m³/h Inlet pressure: max. 20000 kPa (200 bar) Outlet pressure: 500 kPa +/- 50 kPa (5 bar +/- 0.5 bar) Elec. connection: 230 V AC System language: German Mode: Tank and 2 cylinder banks Gas type: +++++++++++++++ Consisting of: 1 x MC2100 1 x Pipe set MC2100 Microprocessor-controlled gas supply system for 2-sided cylinder supply, design according to DIN EN ISO 7396-1, LCD display with operating status and service messages in plain text, forwarding of messages via potential-free contacts, sensory pressure monitoring, 2-stage pressure reduction, 2nd stage with redundant design, pneum. priority circuit in case of power failure, with pressure gauges and emergency feed option (NIST), fully assembled on mounting plate incl. cover
Small Lab System
Small lab unit, for local gas supply complete with mounting bracket, connection pipe, shut-off valve, pressure regulator with cylinder- and working pressure gauges and fittings Gas type: (Please specify gas type!) Inlet: gas-specific connection pipe Outlet: soldering union
Distribution Board 3-way Size 1
Distribution panel, 3-way, size 1 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper tube Ø 22mm (DN20) Outlet: Copper tube Ø 15mm (DN13) Gas type: **************** (Please specify!)
Distribution Board 2-fold Size 2
Distribution panel, 2-way, size 2 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper tube Ø 28mm (DN25) Outlet: Copper tube Ø 22mm (DN20) Gas type: **************** (Please specify!)
Distribution Panel 3-way Size 2
Distribution Board, 3-way, size 2 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: 1x copper pipe Ø 28mm (DN25) Outlet: 3x copper pipe Ø 22mm (DN20) Type of gas: **************** (Please specify!)
Manifold panel 3-way size 3
Manifold, 3-way, size 3 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper pipe Ø 35mm (DN32) Outlet: Copper pipe Ø 28mm (DN25) Gas type: **************** (Please specify!)
Distribution Board 4-fold Size 1
Distribution panel, 4-way, size 1 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper tube Ø 22mm (DN20) Outlet: Copper tube Ø 15mm (DN13) Gas type: **************** (Please specify!)
Distribution Board 4-way Sz.2
Distribution panel, 4-fold, size 2 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper pipe Ø 28mm (DN25) Outlet: Copper pipe Ø 22mm (DN20) Gas type: **************** (Please specify!)
Distribution Board 5-way size 2
Distribution panel, 5-fold, size 2 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper pipe Ø 28mm (DN25) Outlet: Copper pipe Ø 22mm (DN20) Type of gas: **************** (Please specify!)
Distribution panel 6-fold size 2
Distribution panel, 6-way, Size 2 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper pipe Ø 28mm (DN25) Outlet: Copper pipe Ø 22mm (DN20) Gas type: **************** (Please specify!)
Manifold 4-way Sz.3
Distribution panel, 4-way, size 3 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: copper tube Ø 35mm (DN32) Outlet: copper tube Ø 28mm (DN25) Gas type: **************** (Please specify!)

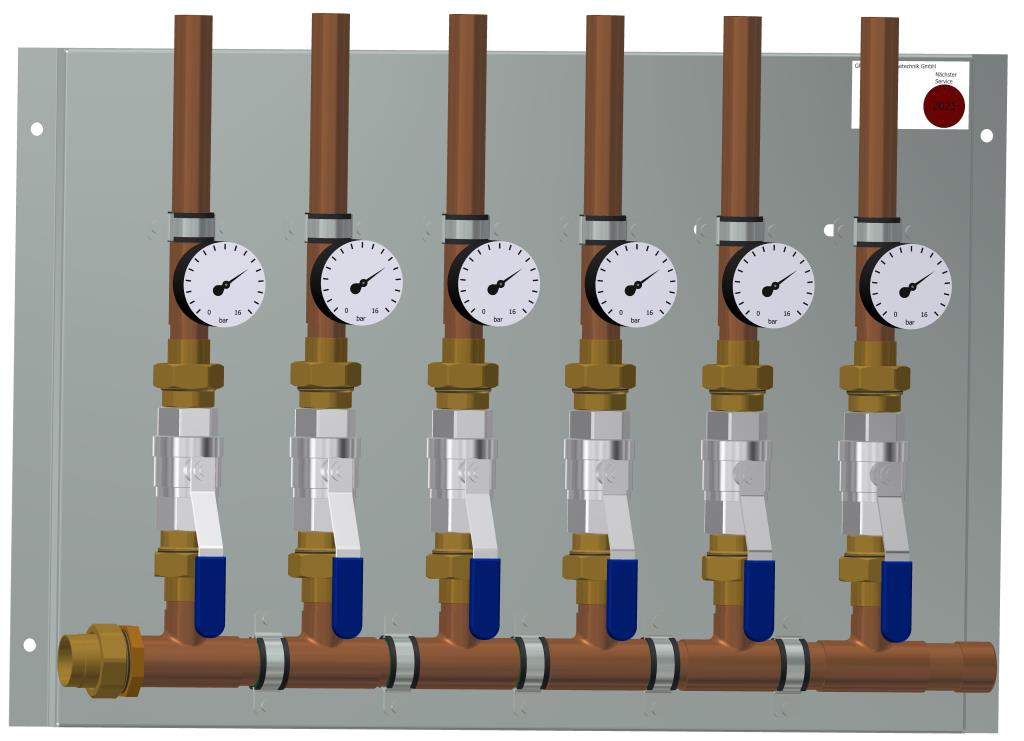

Distribution Board 6-way Size 3
Manifold, 6-way, Size 3 Shut-off valve and pressure gauge per outlet; fully assembled on mounting plate; Inlet: Copper tube Ø 35mm (DN32) Outlet: Copper tube Ø 28mm (DN25) Gas type: **************** (Please specify!)
Pressure Regulator Unit, AIR, Size 1, 5bar
Pressure reducer unit for reducing cylinder pressure to 5 bar, design based on DIN EN ISO 7396-1, each reducer stage redundantly designed with shut-off valves, safety valve, contact sensor, fully mounted on a mounting plate. Size: 1 Capacity: 50 Nm³/h Gas type: Compressed air / AIR Pressure: 500 kPa (5 bar) Contact sensor: 400 / 600 kPa (4 bar / 6 bar)
Pressure Regulator Unit, AIR, Size 1, 8bar
Pressure regulator unit for reducing tank pressure to 8 bar design based on DIN EN ISO 7396-1, each regulator stage in dual design with shut-off valves, safety valve, contact maker, completely mounted on a mounting plate. Size: 1 Capacity: 50 Nm³/h Gas type: Compressed air / AIR Pressure: 800 kPa (8 bar) Contact maker: 600 / 1000 kPa (6 bar / 10 bar)
Pressure Regulator Unit 5 bar AIR
Pressure Regulator Unit 5 bar AIR Pressure regulator unit for reduction to 5 bar Design: 1 Pressure regulator 1/2" Inlet pressure: 16 bar red. to 5 bar with wall bracket 1 Safety valve in oil- and grease-free design 6 bar 2 Ball valves 1/2" 1 Contact unit (NC/NO) 1 Working pressure gauge 63mm 2 Copper connection pipes 15x1mm Operating pressure: 5 bar
Automatic safety in gas supply.
Our changeover manifolds ensure a continuous supply of medical gases by automatically switching between primary and reserve sources when a gas source is changed. They minimise downtime risks and significantly increase supply reliability. Greggersen changeover manifolds are robust, reliable and designed for long-term use in medical facilities. They meet the highest safety requirements and ensure the smooth operation of your central gas supply system.
