Suction

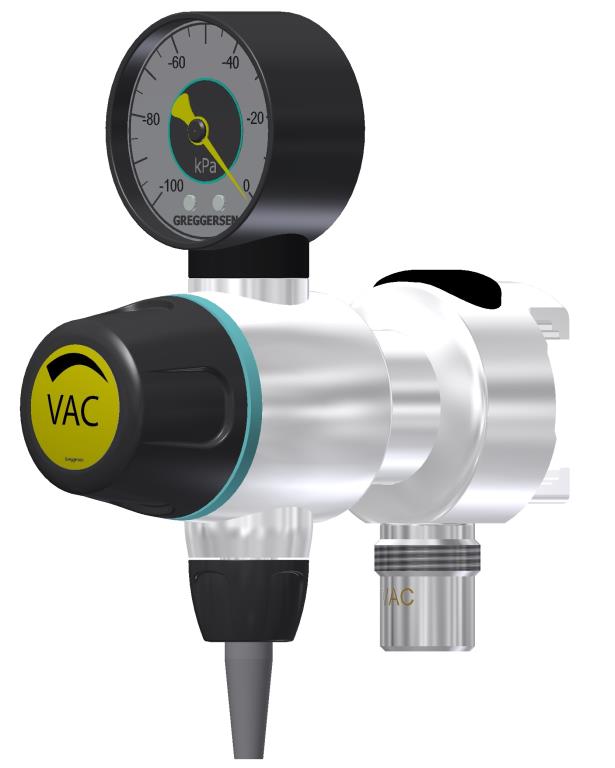

Vacuum Reg. Pirol 2.0 -90,VAC,RAIL,NIST

€291.80

Pirol -90, NIST
- RAIL-MOUNTED UNIT -

Gas type: Vacuum / VAC
Output: adjustable between 0 and -90 kPa
Inlet pressure: -40 ... -99 kPa (*)

Inlet: NIST housing according to DIN EN ISO 18082
Material: Housing: aluminium, anodised, handwheel: plastic,
rail clamp: aluminium, anodised
Control range: 0 to -90 kPa(**)
Output: > 20 l freeflow/min (*)
Outlet: 9/16-18 UNF with vacuum nozzle

(*) The central supply system must comply with DIN EN ISO 7396-1
(**) Tolerance ± 10%; inlet pressure -90 kPa, output depends on inlet pressure

Product Number: 904605
Greggersen
