Suction

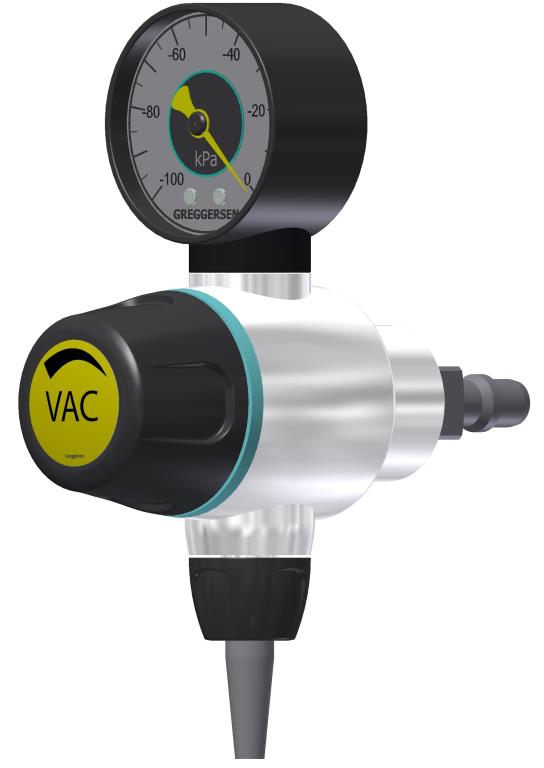

Vacuum Reg. Pirol 2.0 -30,VAC,PROBE,DIN

€514.70

Pirol -30, DIN
- PROBE UNIT -

Gas type:     Vacuum / VAC
Capacity:     adjustable between 0 and -30 kPa
Supply pressure:     -40 ... -99 kPa (*)

Inlet: DIN probe according to DIN 13260
Material: Housing: aluminium, anodised; Handwheel: plastic;
Probe tip: stainless steel
Control range: 0 to -30 kPa (**)
Capacity: > 20 l freeflow/min(**)
Outlet: 9/16-18 UNF with vacuum nozzle

(*) The pipeline system must comply with DIN EN ISO 7396-1
(**) Tolerance ± 10%; supply pressure -90 kPa, capacity depends on supply pressure
When used in the low-vacuum range from 0… -10 kPa, the deviation due to supply pressure is approx. 30%
Product Number: 904606
