Suction

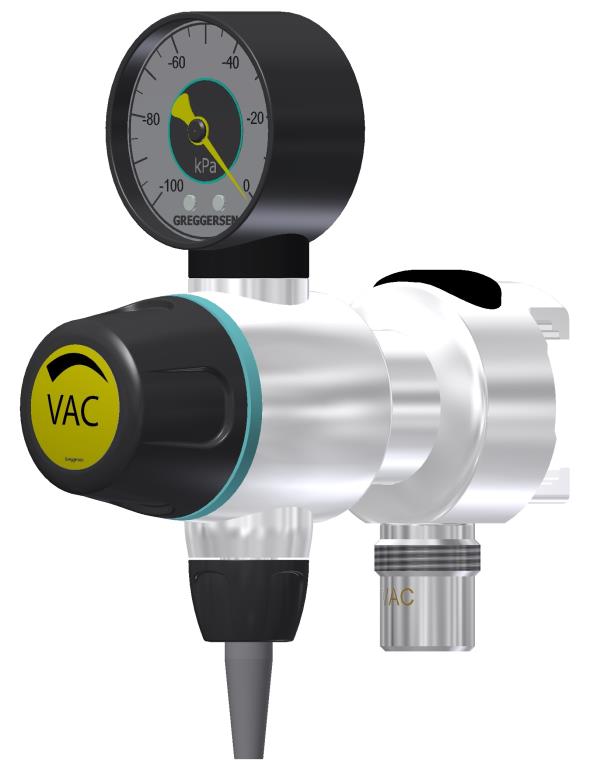

Vacuum Reg. Pirol 2.0 -30,VAC,RAIL,NIST

€554.80

Pirol -30, NIST
- RAIL-MOUNTED UNIT -

Gas type:     Vacuum / VAC
Performance:     adjustable between 0 and -30 kPa
Inlet pressure:     -40 ... -99 kPa (*)

Inlet: NIST housing according to DIN EN ISO 18082
Material: Housing: aluminium, anodised, Handwheel: plastic,
Rail clamp: aluminium, anodised
Control range: 0 to -30 kPa (**)
Performance: > 20 l Freeflow/min (**)
Outlet: 9/16-18 UNF with vacuum nozzle

(*) The central supply system must comply with DIN EN ISO 7396-1
(**) Tolerance ± 10%; inlet pressure -90 kPa, performance depends on inlet pressure
When used in the low-vacuum range of 0... -10 kPa, the
inlet pressure dependency deviation is approx. 30%
Product Number: 904607
