Vacuum Reg. Pirol 2.0 -90,VAC,PROBE,CAR

Vacuum regulator Pirol -90, VAC, CARBA
- DIRECT PLUG-IN UNIT -

Gas Type:     Vacuum / VAC
Capacity:     adjustable between 0 and -90 kPa

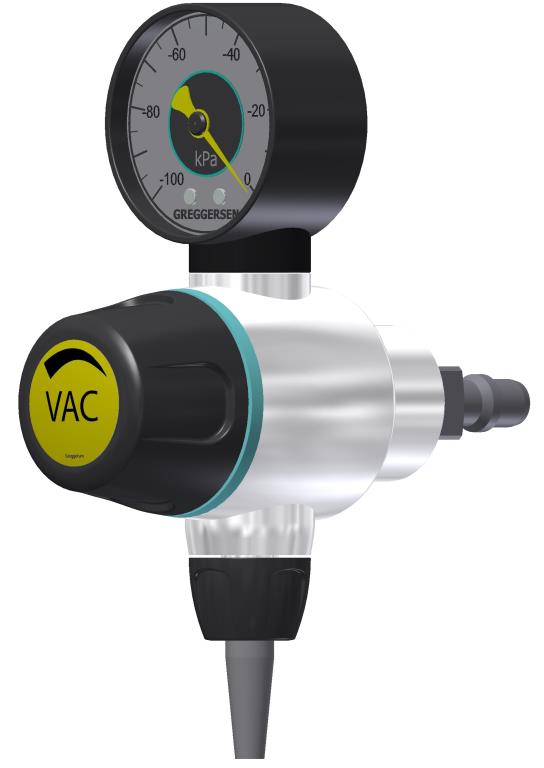

Medical vacuum regulator for vacuum dosing.
With 360° rotating pressure gauge; large, ergonomic
adjustment handwheel; direct plug-in unit for coupling
directly into a CARBAMED terminal unit.
The adjustment mechanism allows for continuous, precise
and intuitive vacuum control. The rotating pressure gauge
enables the user to read the set value from an
optimal viewing angle.
The PIROL regulator units meet the requirements
of EN ISO 10079-3 (high vacuum / high flow).

Gas Type:     Vacuum / VAC
Inlet Pressure: -40 ... -99 kPa (²)
Inlet: CARBAMED probe according to SN ENV 737-6:2005
Design: Spring-loaded diaphragm regulator
Material: Housing: Aluminium, anodised
Handwheel: PA plastic
Diaphragm: Silicone
Probe: Brass, chrome-plated
Control Range: 0 to -90 kPa ± 10% (³)
Capacity: > 20 l freeflow/min at -90 kPa (³)
Outlet: 9/16-18 UNF with vacuum nozzle

(²) The central supply system should at least comply with
DIN EN ISO 7396-1.

(³) Tolerance ± 10%; inlet pressure -90 kPa, capacity depends on inlet pressure.
Control range and capacity are highly dependent on the pre-vacuum from the
central supply system. At least DIN EN ISO 7396-1 should be
met to ensure proper operation.
