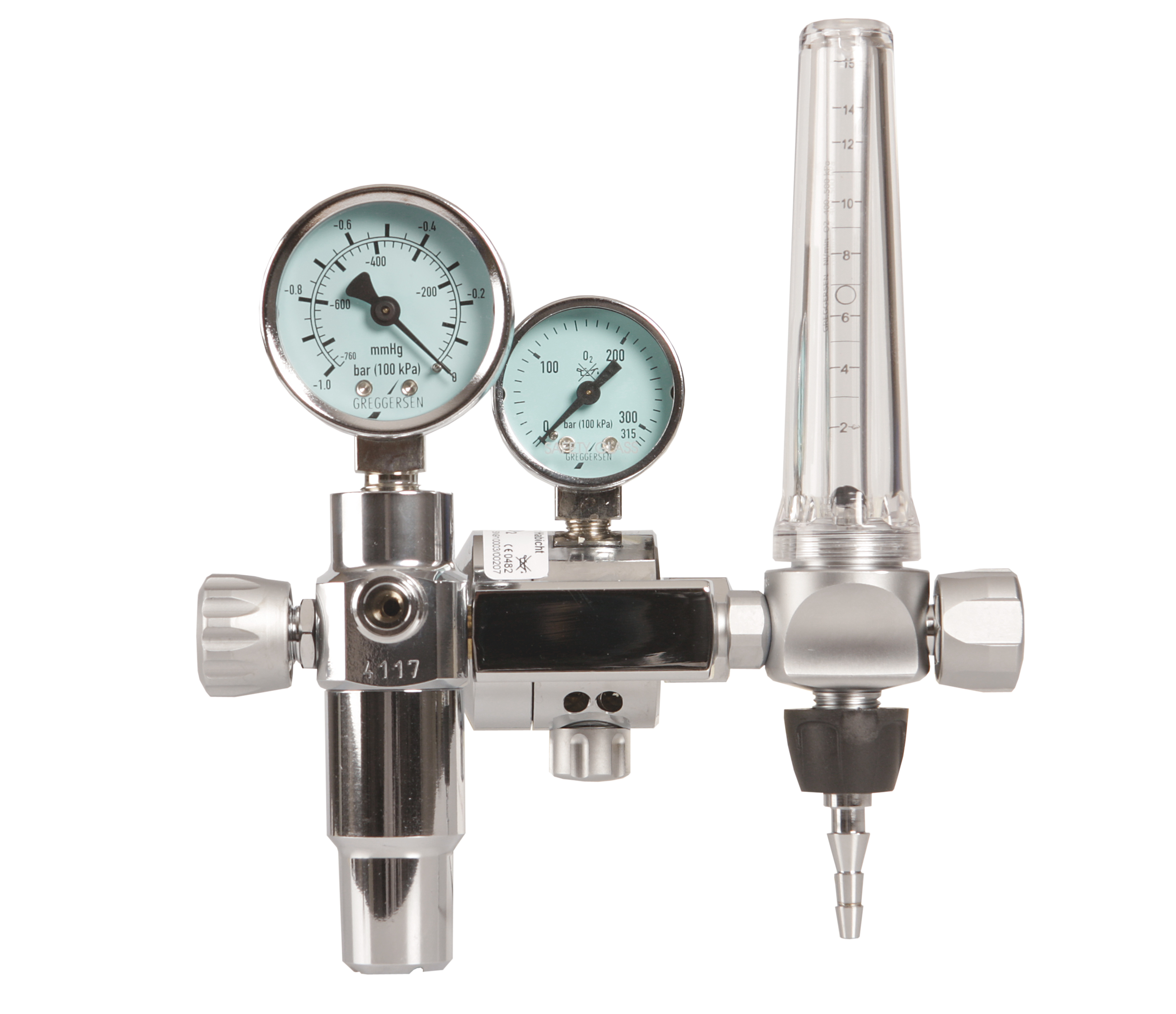

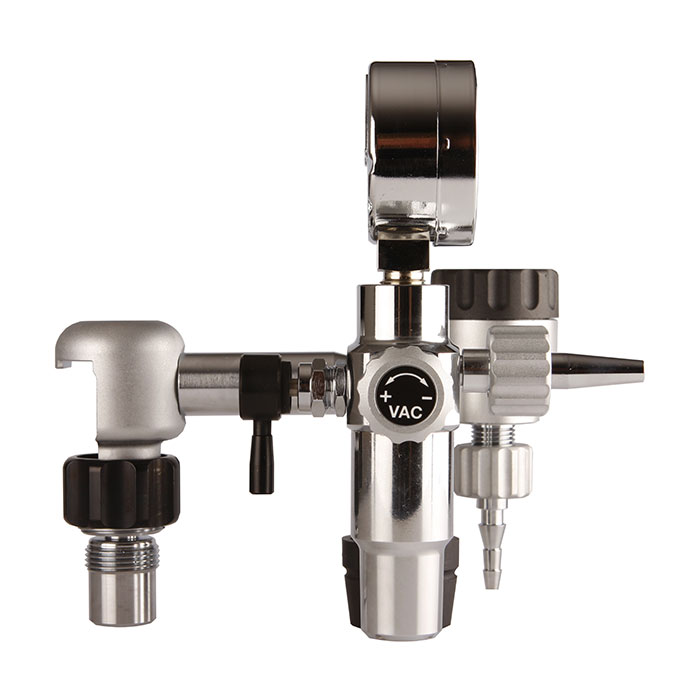

O2 Pressure Regulator Unit HABICHT Suction and Insufflation Unit, Cylinder Connection Combi-Unit with cylinder connection, pressure regulator with high-pressure hand connection according to DIN 477, preset to 500 kPa (5 bar), with contents gauge, safety valve, ejector with vacuum gauge, flowmeter with fine adjustment valve for flow dosing; Scope of delivery without overflow or humidifier bottle Gas type:     Oxygen / O2 Connection: High-pressure hand connection according to DIN 477, No. 9 Outlet:     Flow nozzle / Vacuum nozzle Capacity: 0...15 l/min adjustable between 0 and -85 kPa (0 to -0.85 bar) Consisting of: 1 x Combi-Unit

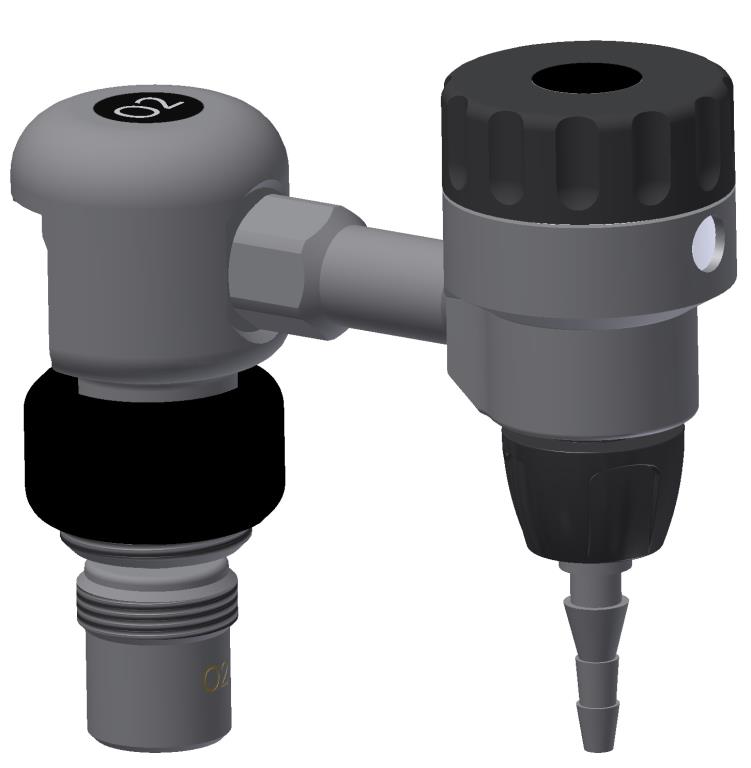

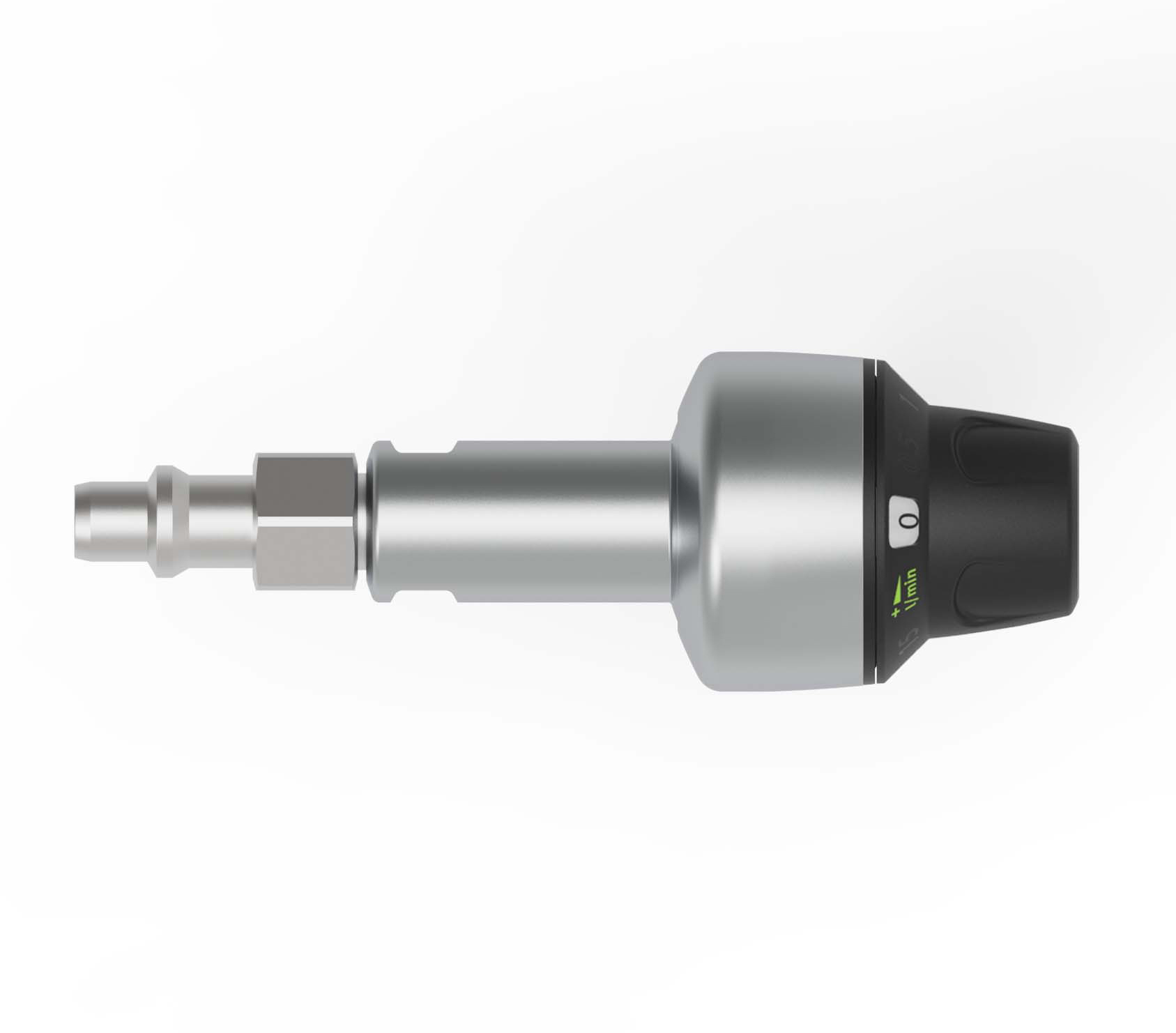

Kolibri, O2, 0...15 l/min RAIL UNIT NIST Medical compact flowmeter according to DIN EN ISO 15002; Flow is adjusted via handwheel in 10 step increments; Gas inlet NIST integrated into rail clamp; Outlet 9/16-18 UNF and flow nipple Handwheel in ISO32 - white for O2 Gas type: Oxygen / O2 Connection: NIST according to DIN EN ISO 18082 Outlet: 9/16-18 UNF - 18 UNF / flow nipple Flow rate: 0...15 l/min Step increments: 0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

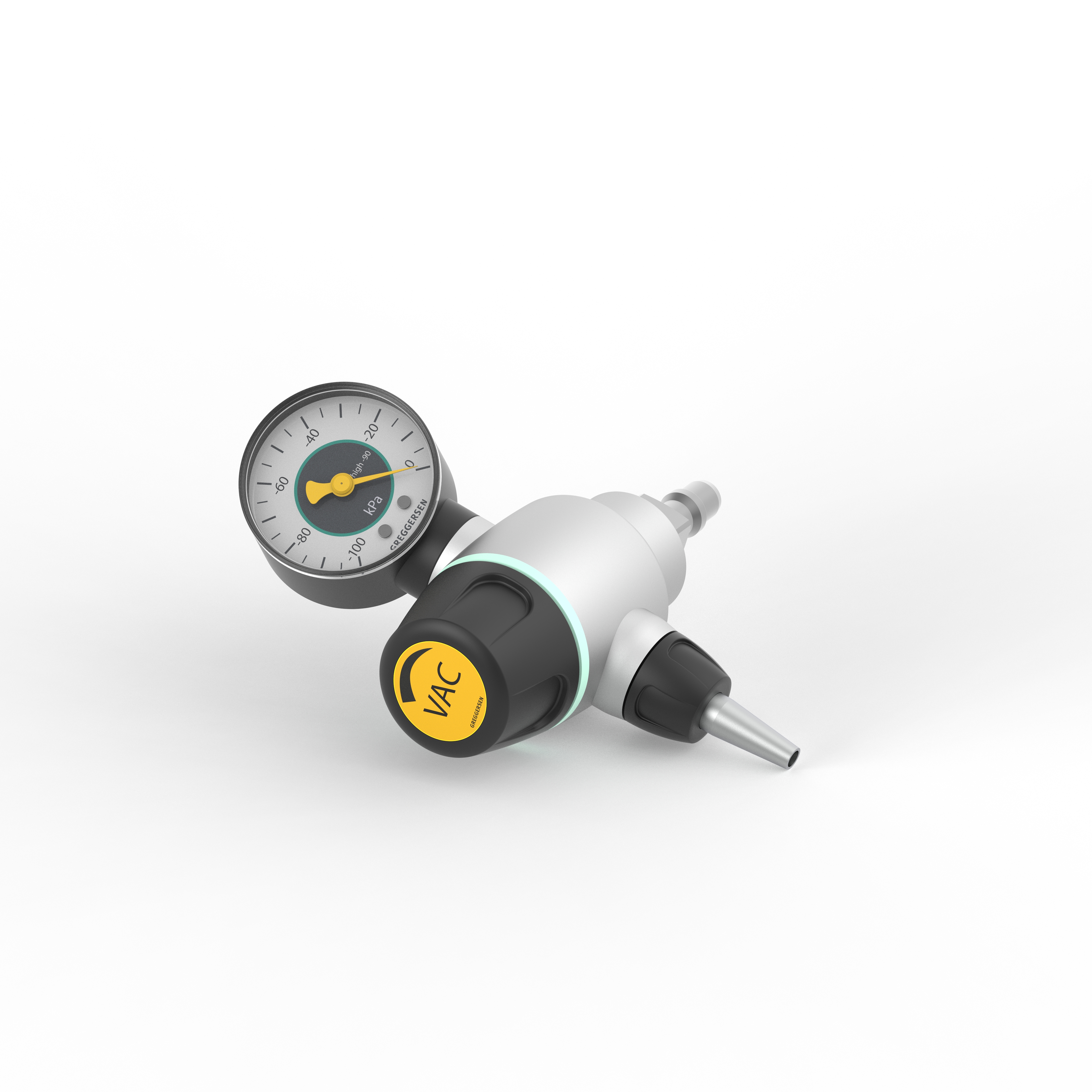

Pirol -90, MEDAP - PROBE UNIT - Gas type: Vacuum / VAC Performance: adjustable between 0 and -90 kPa Medical vacuum regulator for vacuum dosing. With 360° rotating pressure gauge; large, ergonomic adjustment handwheel; probe unit for direct connection to a DIN wall outlet. The adjustment mechanism allows for continuous, precise and intuitive vacuum control. The rotating pressure gauge enables the user to read the set value from an optimal viewing angle. The regulator unit meets the requirements of DIN EN ISO 10079-3 (high vacuum / high flow). Gas type: Vacuum / VAC Inlet pressure: -40 ... -99 kPa(*) (*) The central supply system should at least comply with DIN EN ISO 7396-1. Inlet: MEDAP VAC probe Material: Housing: aluminium, anodised Handwheel: plastic Control range: 0 to -90 kPa(*) Performance: >20 l freeflow/min(*) Outlet: 9/16-18 UNF with vacuum hose barb (*) Tolerance ± 10%; inlet pressure -90 kPa, performance depends on inlet pressure

Probe with nozzle N2 with check valve, 7 mm nozzle Specification: Gas type: N2 Coding: N2 Inlet: Probe according to SS 87 524 30 (AGA) Outlet: 7 mm nozzle

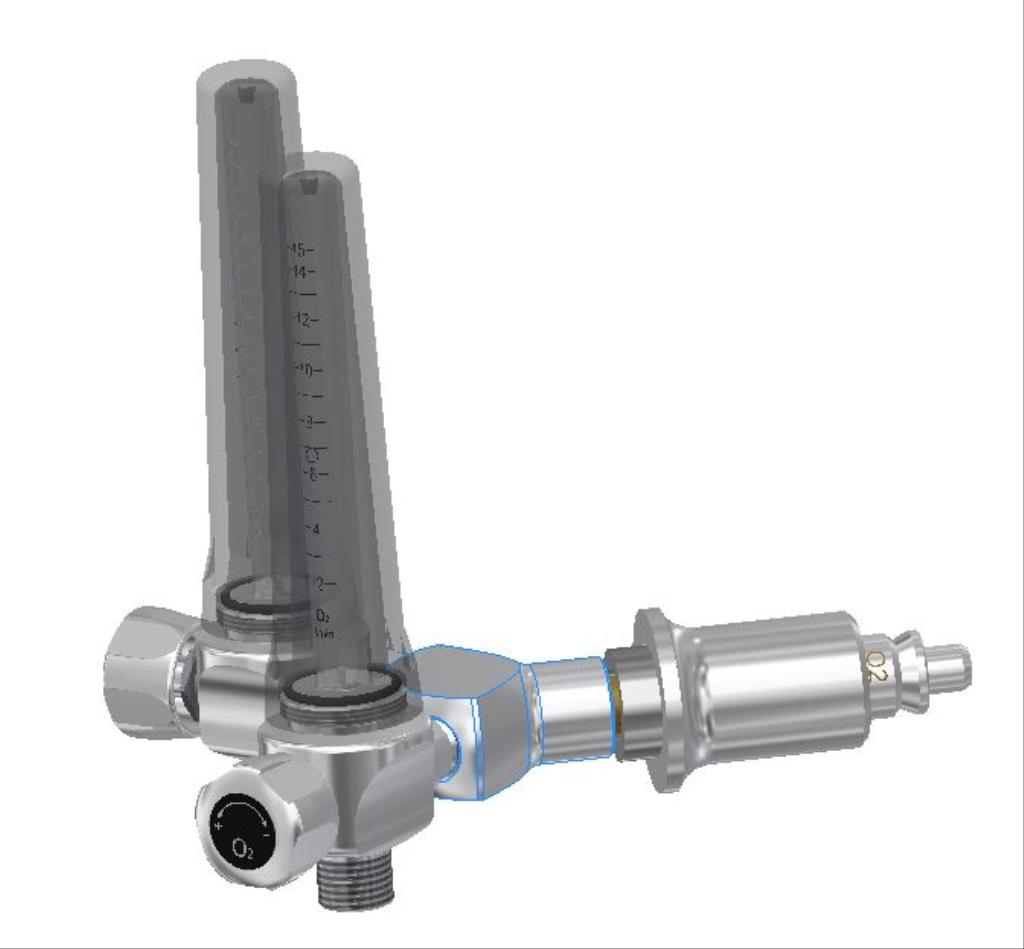

Double Flowmeter Medical double flowmeter, pressure-compensated according to DIN EN ISO 15002, with fine control valve for flow dosage, for connection to a MEDAP terminal unit PLUG-IN DEVICE Gas type:        Oxygen / O2 Connection:     MEDAP probe Outlet:        9/16-18 UNF Capacity:        0-15 l/min each

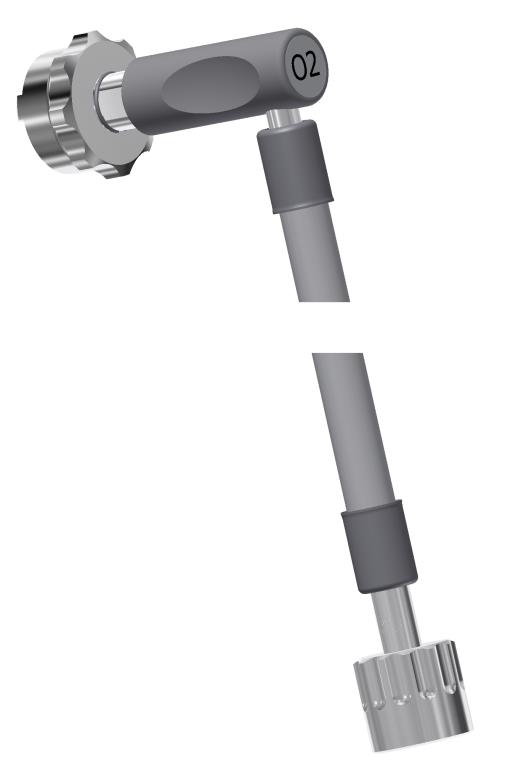

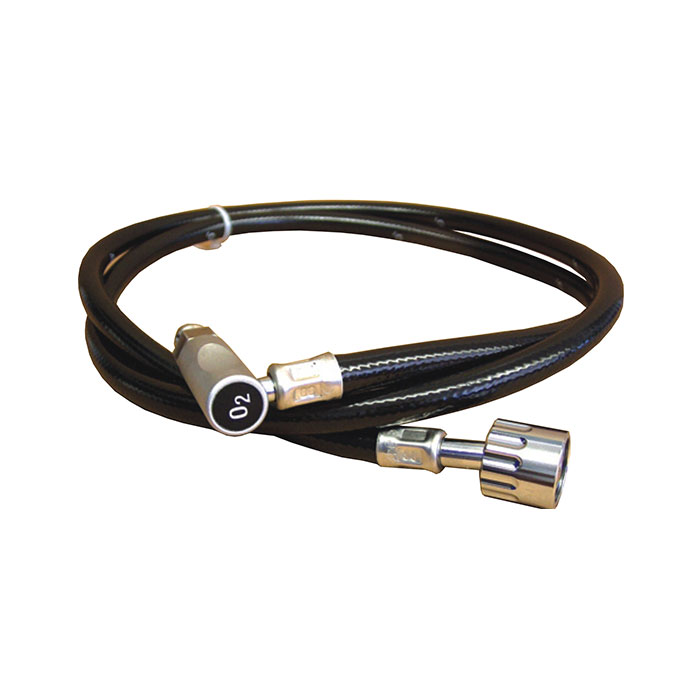

Niederdruck-Schlauchleitung nach DIN EN ISO 5359 Winkelstecker mit Rückströmbegrenzung, Schlauchleitung und Geräteanschluss NIST Spezifikation: Gasart: Sauerstoff / O2 Eingang: Stecker nach NF S 90-116 Schlauchlänge: 1,5 m Farbkennzeichnung: ISO 32 (weiß) Abgang: gasartspezifische Verschraubung NIST

Angled plug with check valve Gas type:     Nitrogen / N2 Connection: Plug according to SS 87 524 30 (AGA) Outlet:     7 mm flow nozzle

Falke, without flow with 1 quick-release coupling, Compact pressure regulator with contents gauge; with one quick-release coupling at a pressure of 450 kPa. Gas type: Oxygen / O2 Connection: Manual connection for gas cylinders according to DIN 477, No. 9 Outlet: Quick-release coupling according to DIN 13260 Part 2, top Performance: 450 kPa (4.5 bar)

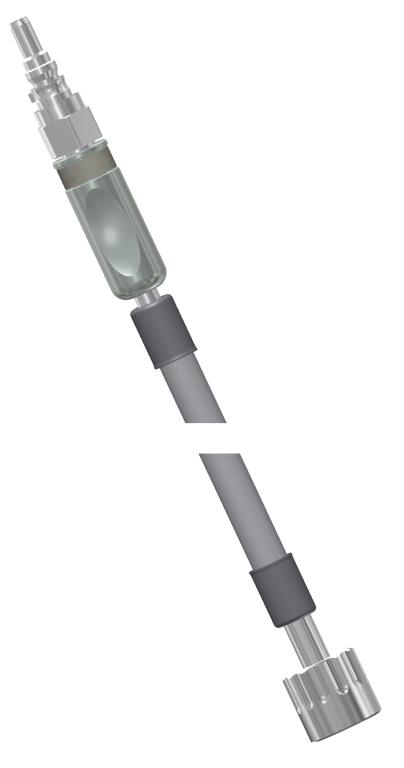

Low-Pressure Hose according to DIN EN ISO 5359 Straight probe with check valve, hose and device connection NIST Specification: Gas type: Compressed Air / AIR Inlet: Probe according to SS 87 524 30 (AGA), straight Hose length: 3.0 m Colour coding: ISO 32 (black/white) Outlet: gas-specific NIST screw connection

Falke with Flow, standard with 1 probe, Compact pressure regulator with contents gauge; step-adjustable flow, DIN probe at a pressure of 450 kPa. Gas type:      Oxygen / O2 Inlet:        Hand connection for cylinders acc. to DIN 477, No. 9 Outlet:        9/16-18 UNF (hose barb)/probe acc. to DIN 13260-2 Flow rate:      0...15 l/min 9/16-18 UNF; 120 l/min probe Flow steps:    0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
