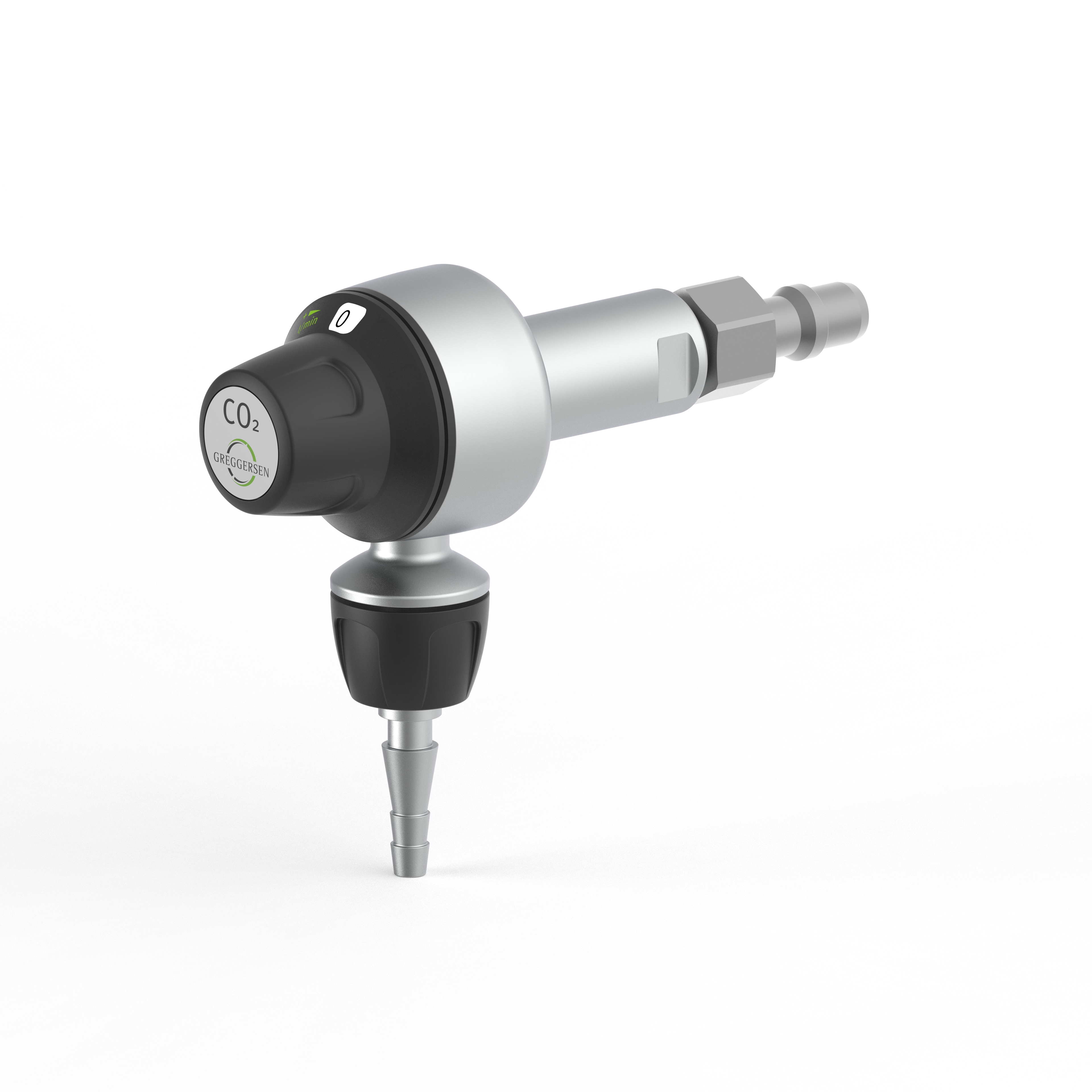

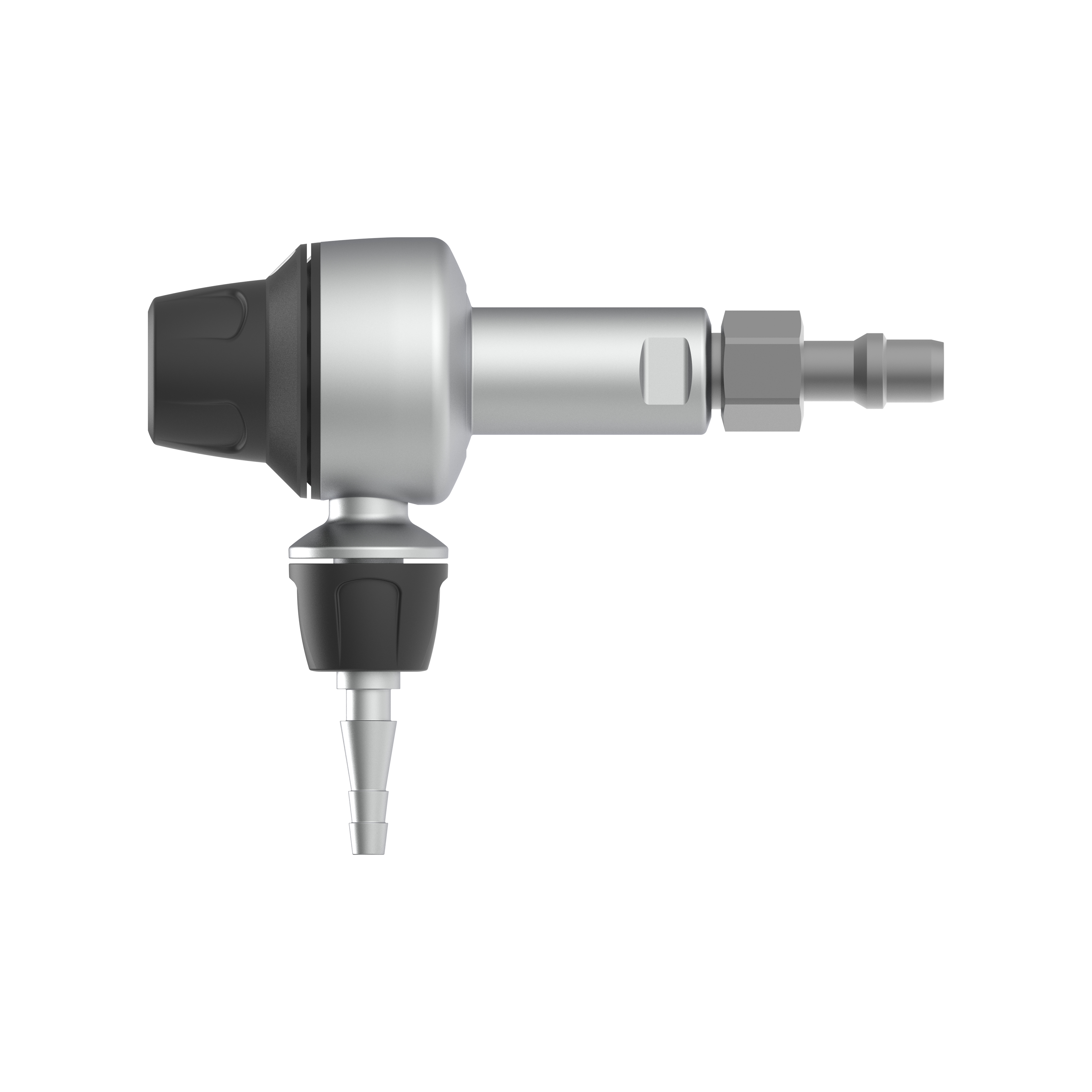

Kolibri 2 Probe DIN CO2 Standard

KOLIBRI 2, CO2, 0...15 l/min
- Standard DIN PLUG-IN UNIT -
Increments:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

KOLIBRI 2 compact dial flowmeter
with fixed orifices and selection device

Medical compact flowmeter for connection
to a terminal unit, with handwheel - incrementally
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment and readability
of the set flow stage possible from various
directions and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     Carbon dioxide / CO2
Connection: Probe according to DIN 13260 Part 2
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
