Varioport Spatz -90

Varioport Spatz -90

Technical data:
Gas type: Vacuum - VAC
Connection: NIST according to DIN EN ISO 18082
Outlet: Vacuum nozzle
Performance: adjustable between -20 and -85 kPa
Weight: approx. 3 kg (without containers)

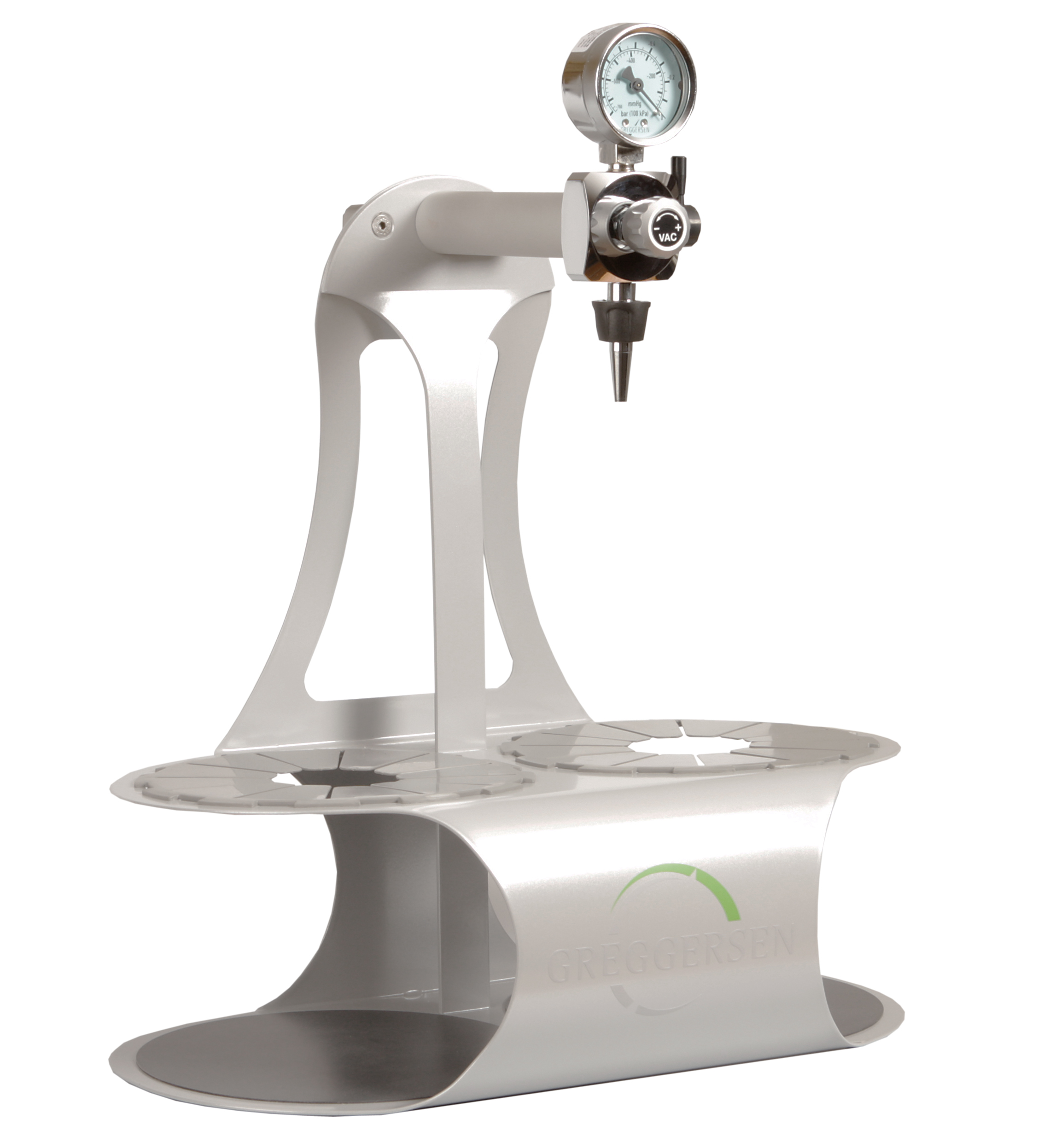

Medical, portable suction unit for vacuum
designed to hold 2 secretion collection containers.

The container holder is universal. Common containers in
sizes 0.5 to 3.0 L from various manufacturers can be used
(e.g. Serres, Abbott, Medela, Ardo, Cardinal, and many more).
The carrying frame features a sturdy handle and a mount for
a 25x10mm equipment rail. The vacuum control unit is located
at the front, allowing the operator quick and direct access.
The gas inlet, as a NIST coupling, is located at the back
of the device, ensuring the supply hose remains outside the working area.

Scope of delivery:
- Vacuum regulator with fine adjustment and quick-acting valve
- Vacuum gauge
- Carrying frame, coated
- 2 pieces of highly flexible retaining cuffs
