Varioport Skua 2.0 -90, AIR, NIST

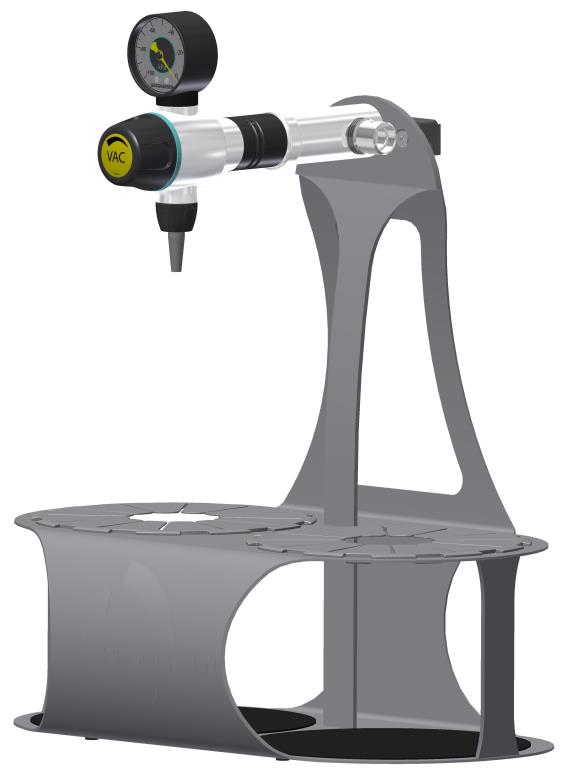

Portable compressed-air suction unit Varioport Skua -90

Medical, portable suction unit for compressed air
for holding 2 secretion collection canisters.
The vacuum is generated using compressed air according to the
Venturi principle.

The canister holder is universal. Common canisters in
sizes 0.5 to 3.0 L from various manufacturers can be used
(e.g. Serres, Abbott, Medela, Ardo, Cardinal, and many others).
The carrying frame features a sturdy handle and a mounting for
a 25x10 mm equipment rail. The control unit is located
at the front, allowing the operator quick and direct access.
The gas inlet, as a NIST coupling, is located at the rear
of the device, so the supplying hose is outside the working area.
The exhaust sleeve also allows for individual alignment of the airflow.

Scope of delivery:
- Compressed-air suction unit Skua-90 with fine control valve, rotatable vacuum gauge
- Carrying frame, coated
- 2 units highly flexible retaining sleeves
Technical data:
Gas type: Compressed air / AIR
Inlet: NIST according to DIN EN ISO 18082
Outlet: 9/16-18 UNF with vacuum nozzle
Control range: 0 to -85 kPa ± 10%
Performance: > 20 l freeflow/min
Weight: approx. 3 kg (without canisters)
