Kolibri 2 Rail NIST CO2 Standard

KOLIBRI 2, CO2, 0...15 l/min
- Standard RAIL UNIT -
Increments:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

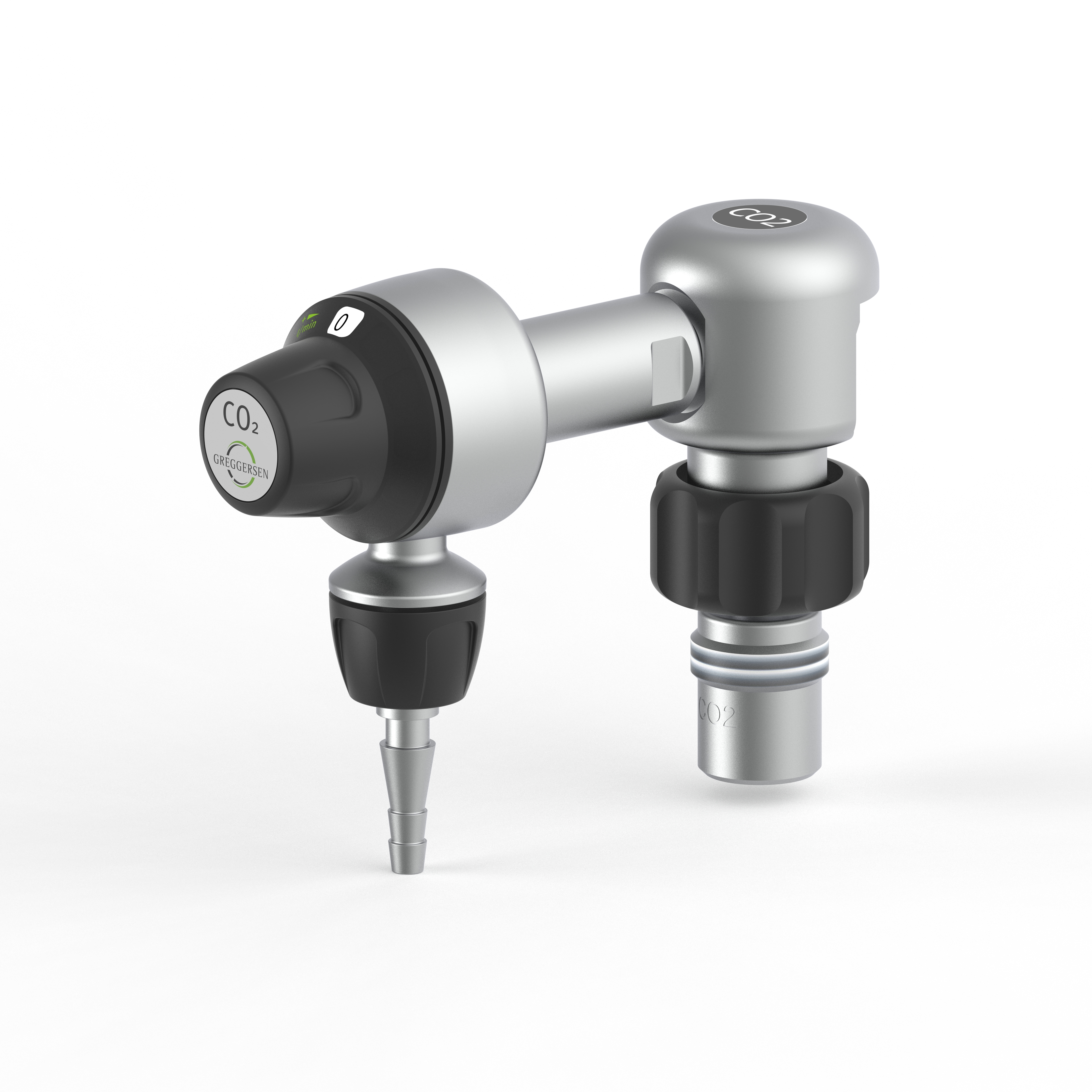

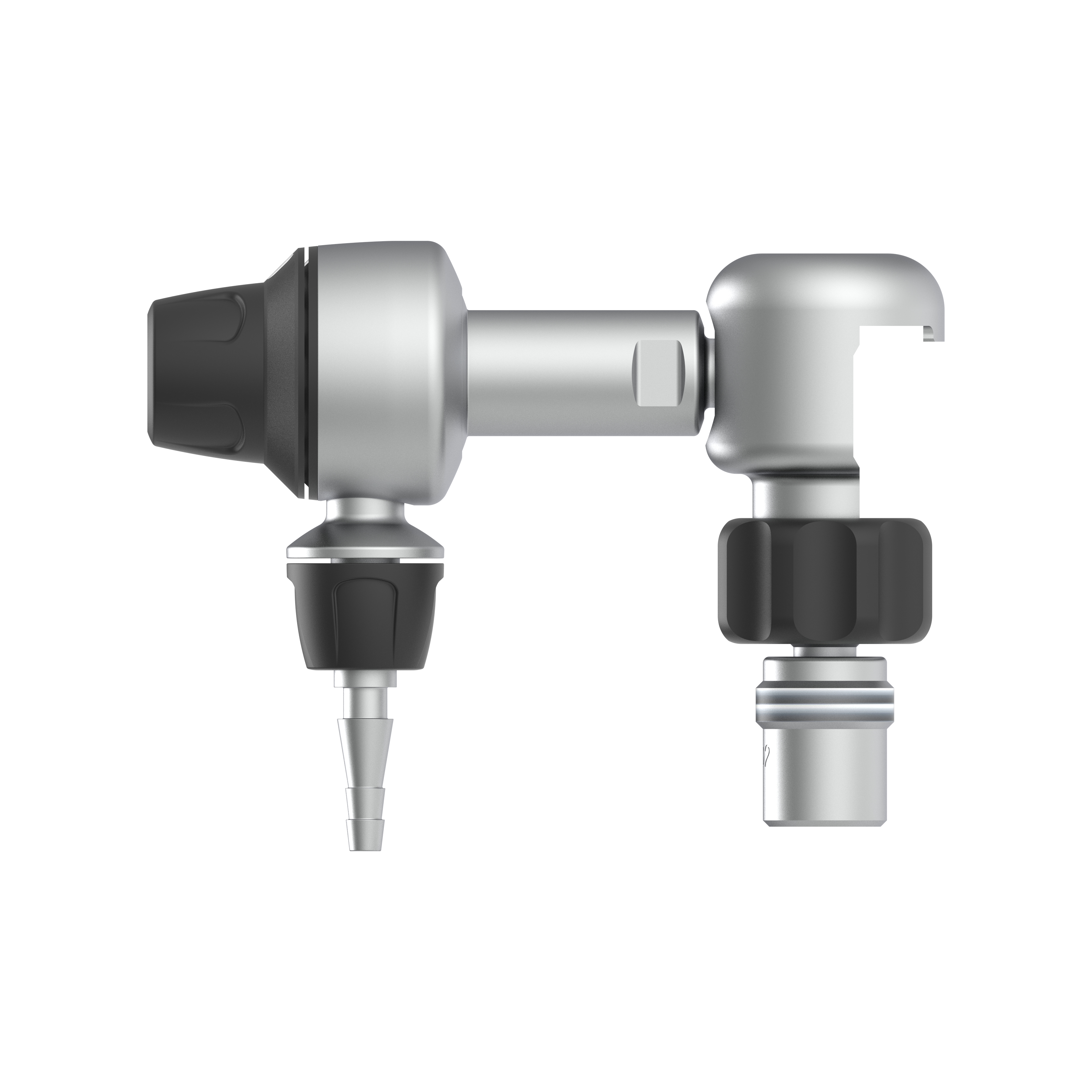

Step-compact flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for mounting on a
25x10mm medical rail; NIST gas inlet integrated
in the rail clamp; with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment and readability
of the set flow step possible from various
directions and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     Carbon dioxide / CO2
Inlet: NIST according to DIN EN ISO 18082
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
