Kolibri 2 Rail NIST AIR Standard

KOLIBRI 2, AIR, 0...15 l/min
- Standard RAIL UNIT -
Increments:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

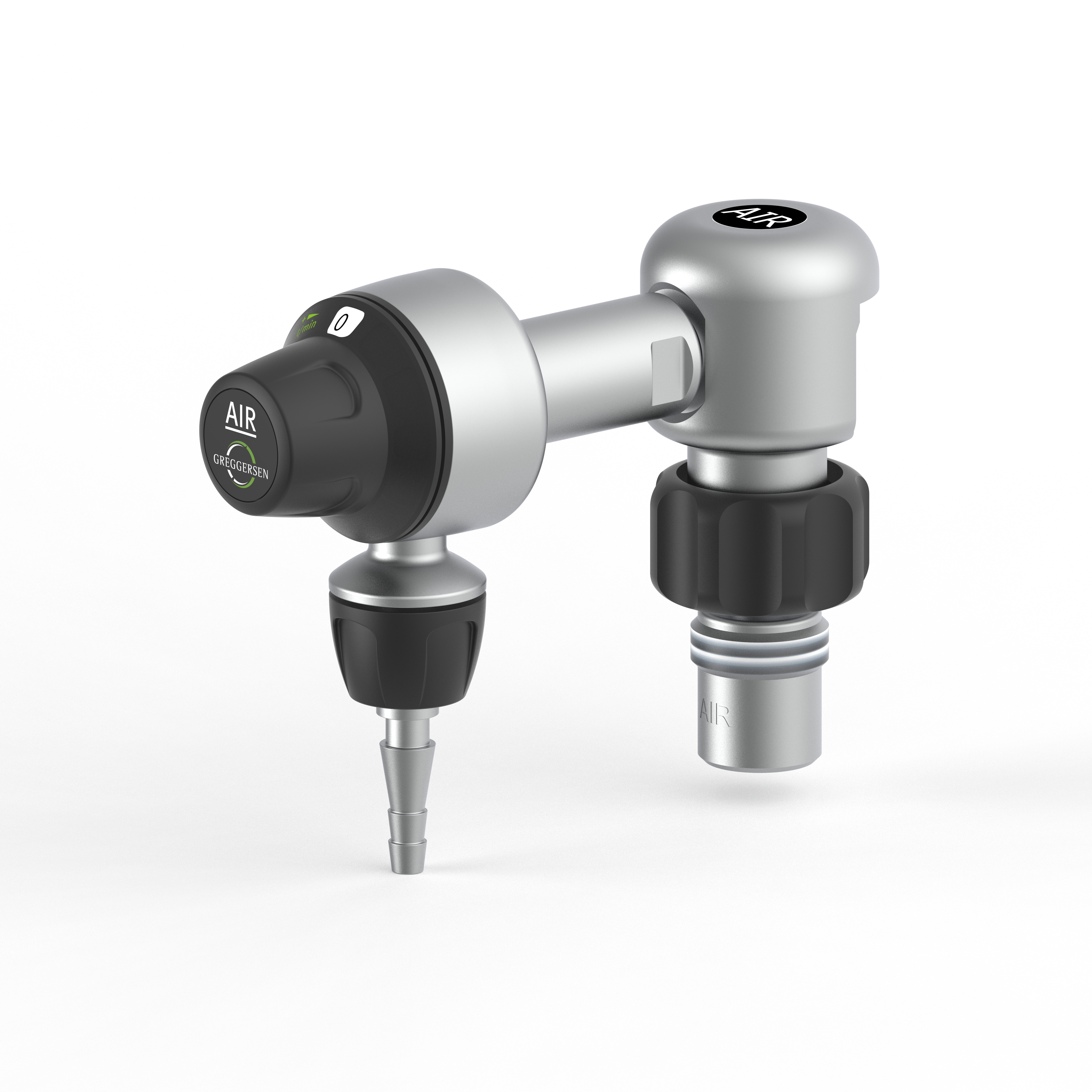

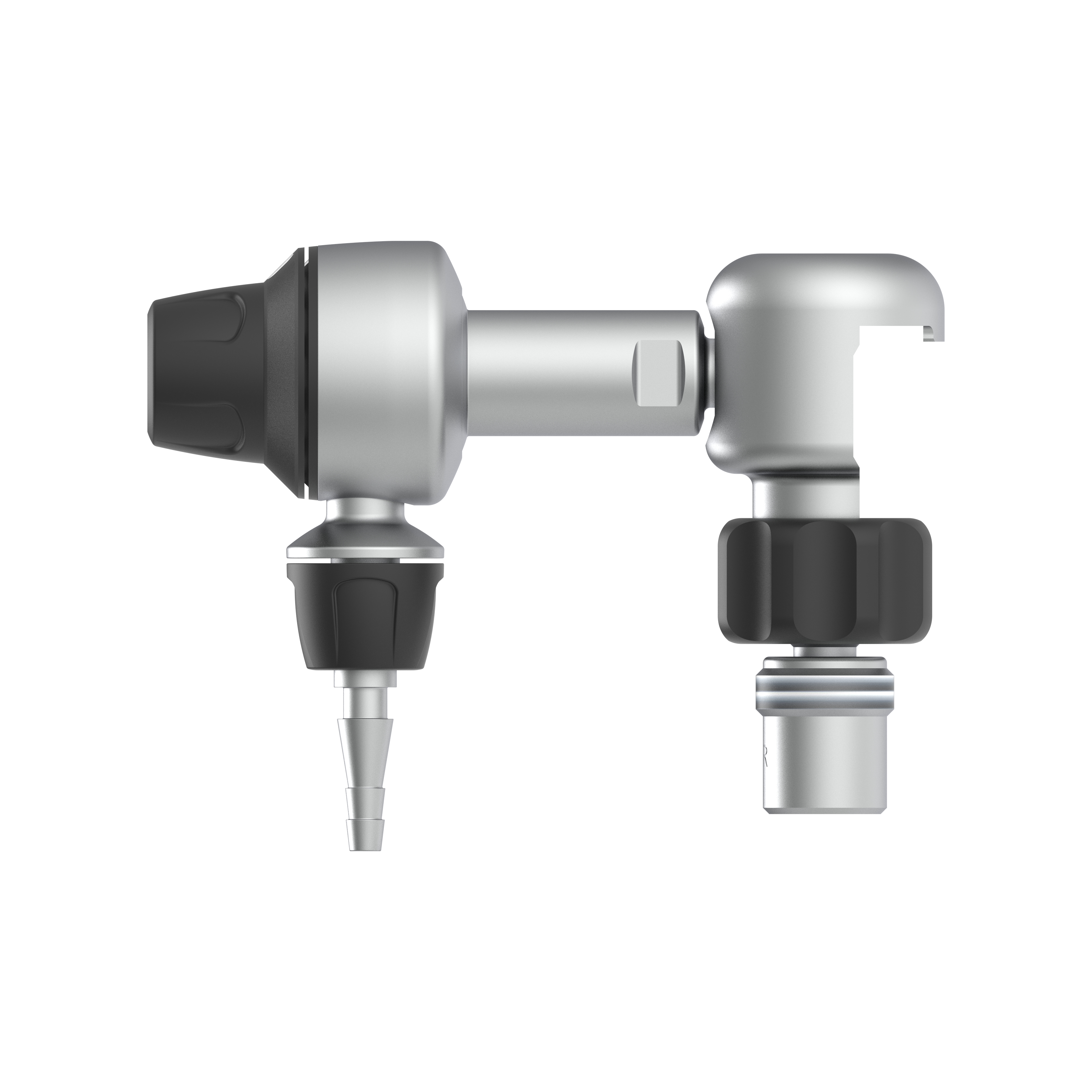

Compact Step-Flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for mounting on a
25x10mm equipment rail; NIST gas inlet integrated
in the rail clamp; with handwheel - incremental
flow adjustment, 9/16-18 UNF thread outlet

Ergonomically optimised adjustment device and readability
of the set flow step possible from various perspectives
and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     med. Compressed Air / AIR
Connection: NIST according to DIN EN ISO 18082
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
