Kolibri 2 Rail CH NIST AIR Standard

KOLIBRI 2, AIR, 0...15 l/min
- Standard CH RAIL-MOUNTED UNIT -
Flow steps:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

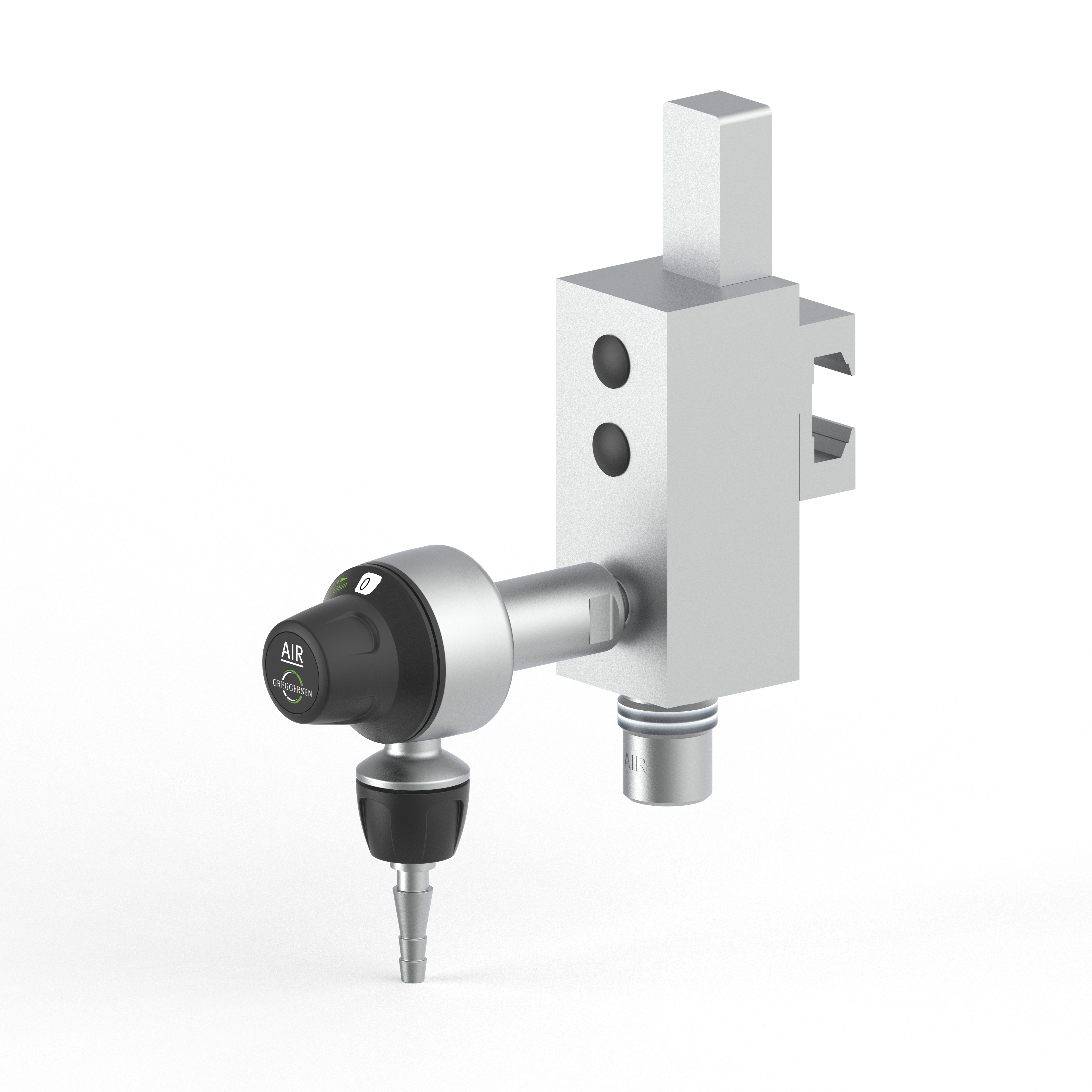

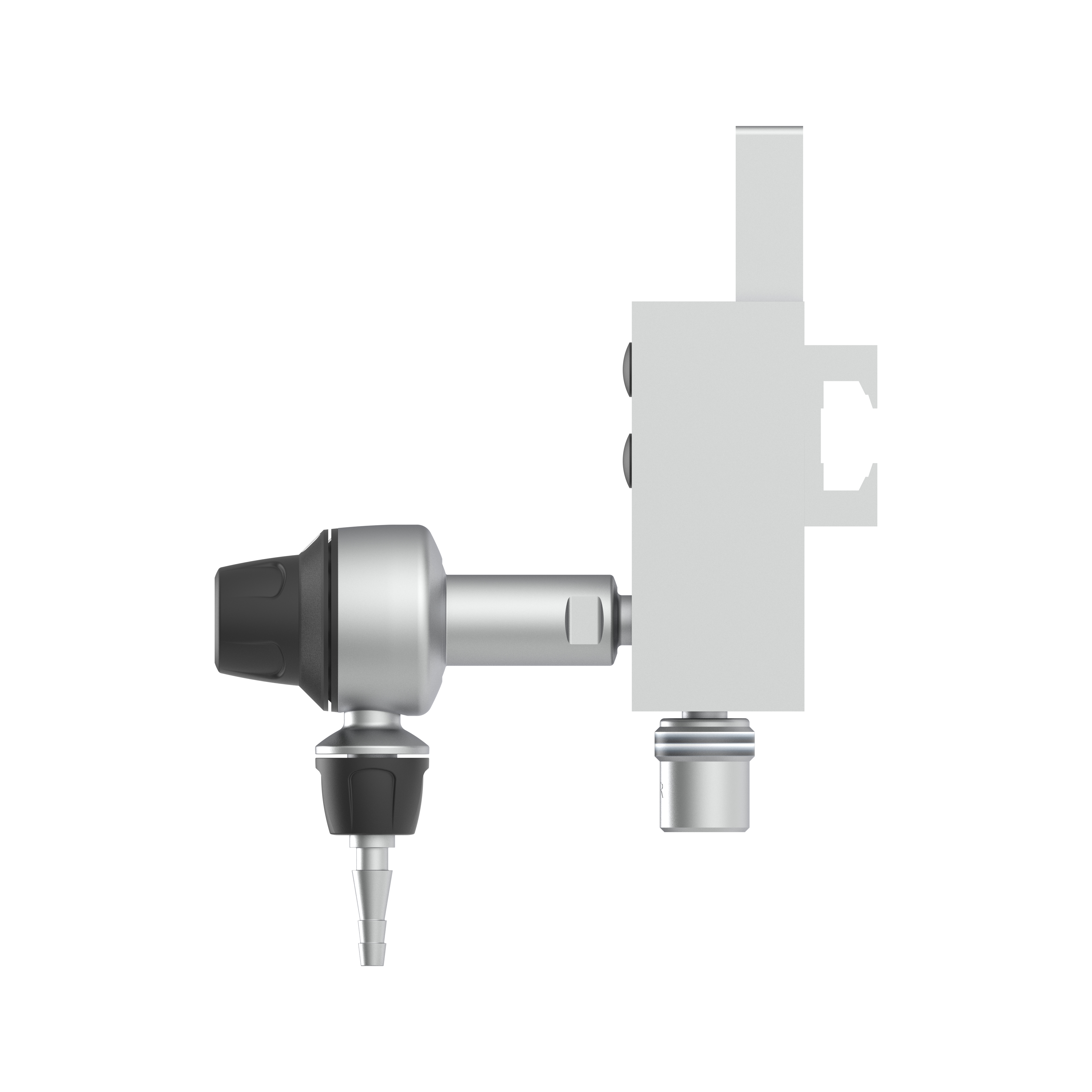

Step-Compact Flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for mounting on an
equipment rail; NIST gas inlet integrated in rail clamp;
with handwheel - incrementally adjustable flow, outlet 9/16-18 UNF thread

-> With special spring-loaded
rail clamp for rails up to 50mm <-

Ergonomically optimised adjustment device and readability
of the set flow step from different perspectives
and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     med. compressed air / AIR
Inlet: NIST according to DIN EN ISO 18082
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at 450 kPa (4.5 bar) inlet pressure

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
