Kolibri 2 Probe NF O2 Standard

KOLIBRI 2, O2, 0...15 l/min
- Standard NF PROBE DEVICE -
Click steps:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

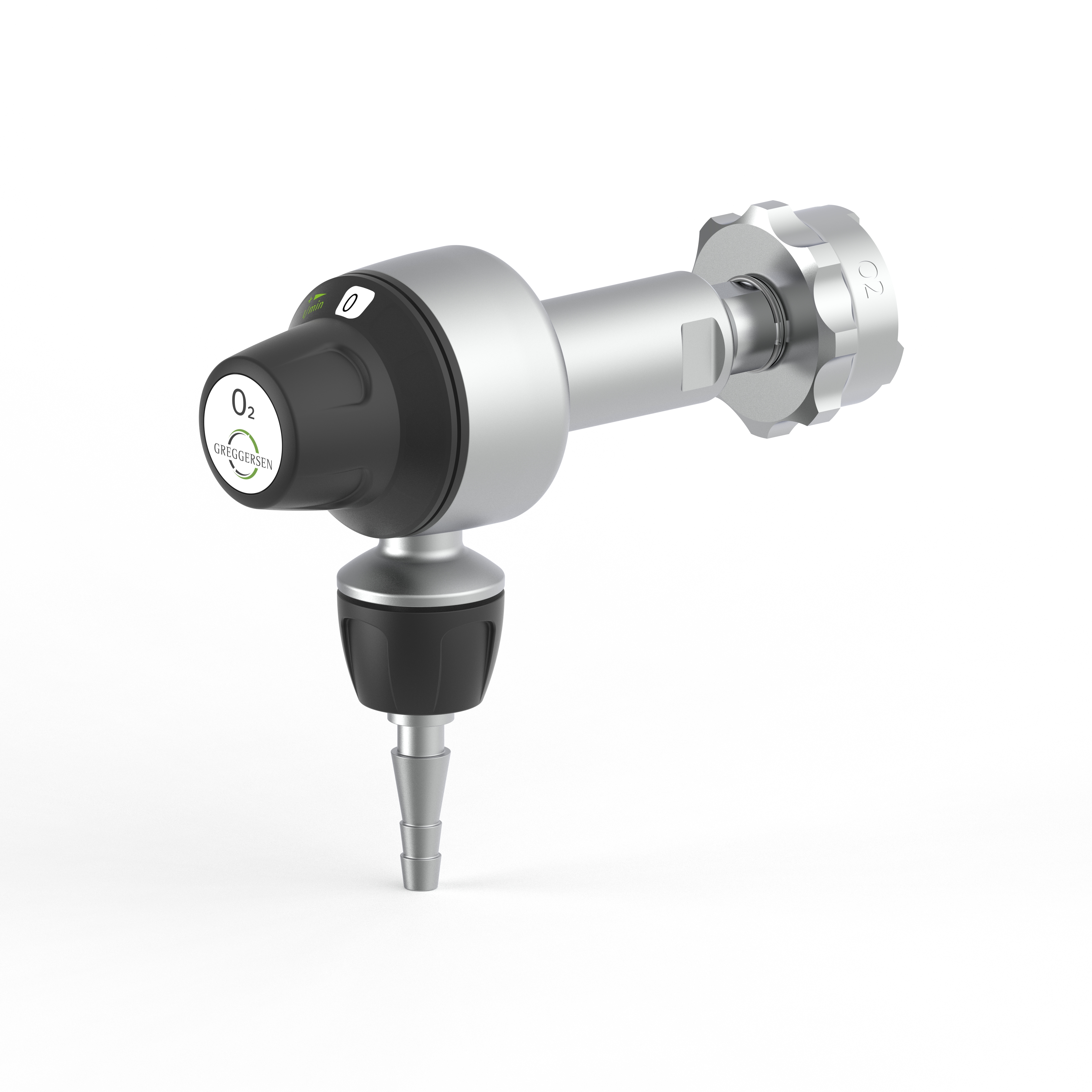

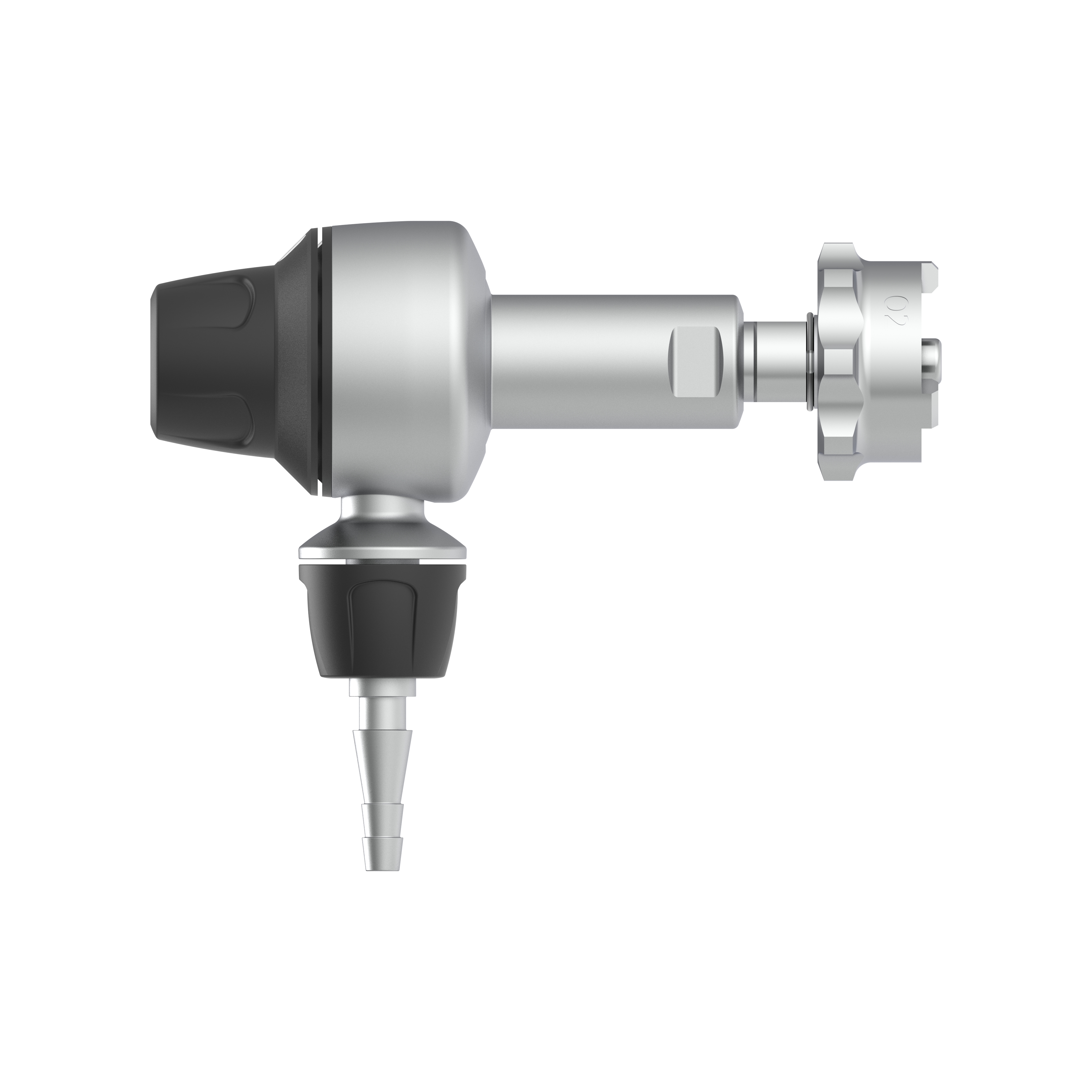

Step-Compact Flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for connection
to a terminal unit, with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment device and readability
of the set flow step possible from various viewing
directions and angles.

Front-access operation -> more safety during
adjustment of the correct flowrate

Gas type:     Oxygen / O2
Connection: Probe according to NF S 90-116
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
