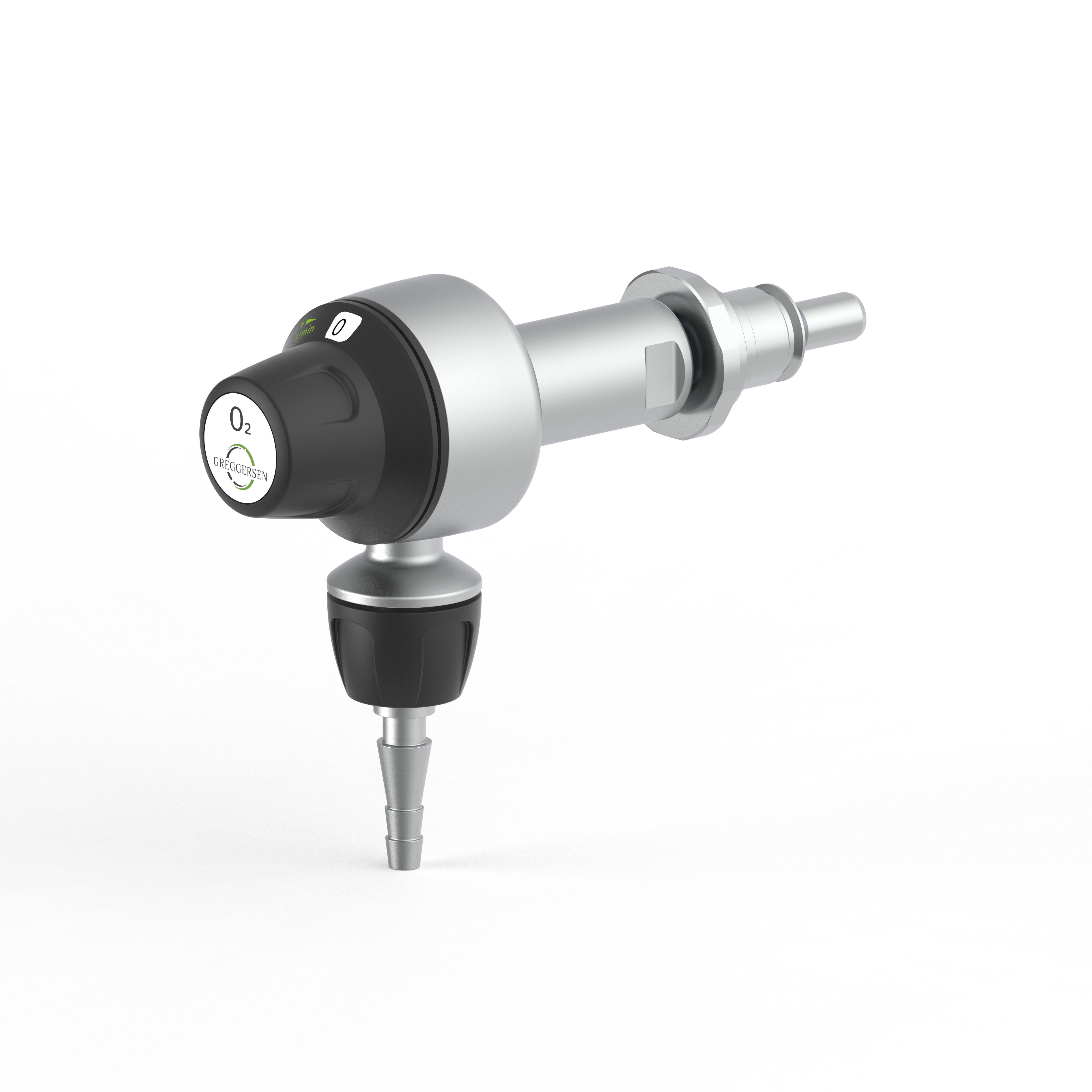

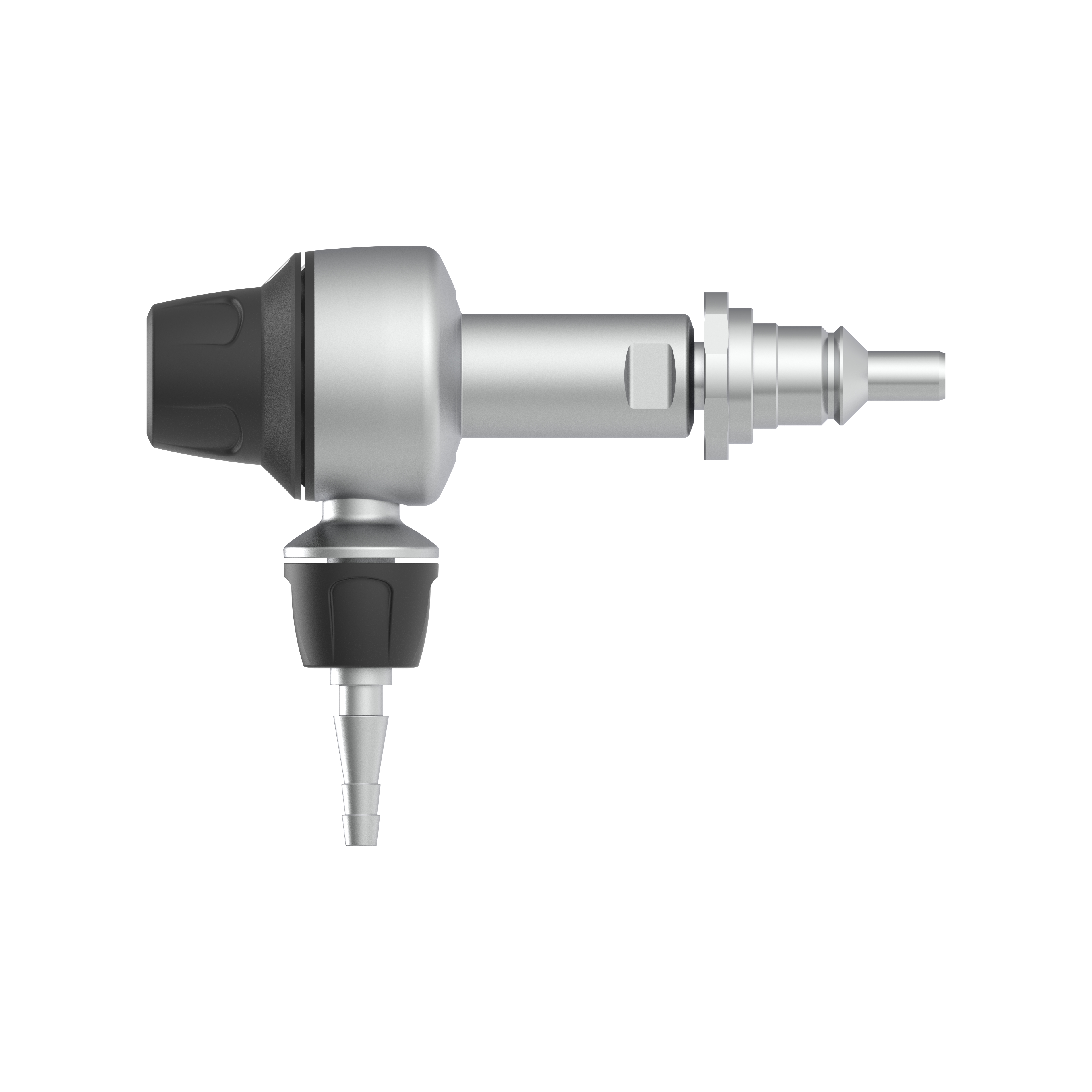

Kolibri 2 Plug UNI O2 Standard

Kolibri 2.0, O2, 0...15 l/min
- Standard UNI (Italy) PLUG-IN UNIT -
Click steps:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

Steps-Compact Flowmeter KOLIBRI²
with fixed orifices and selection device

Medical compact flowmeter for coupling
into a terminal unit, with handwheel - incrementally
adjustable flow, outlet 9/16-18 UNF thread

Setting device ergonomically optimised and readability
of the set flow step possible from various perspectives
and angles.

Frontal operating concept -> more safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Connection: Plug according to UNI 9507
Outlet:     9/16-18 UNF
Capacity:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
