Kolibri 2 Plug MEDAP AIR Standard

KOLIBRI 2, AIR, 0...15 l/min
- Standard MEDAP PROBE UNIT -
Click settings:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

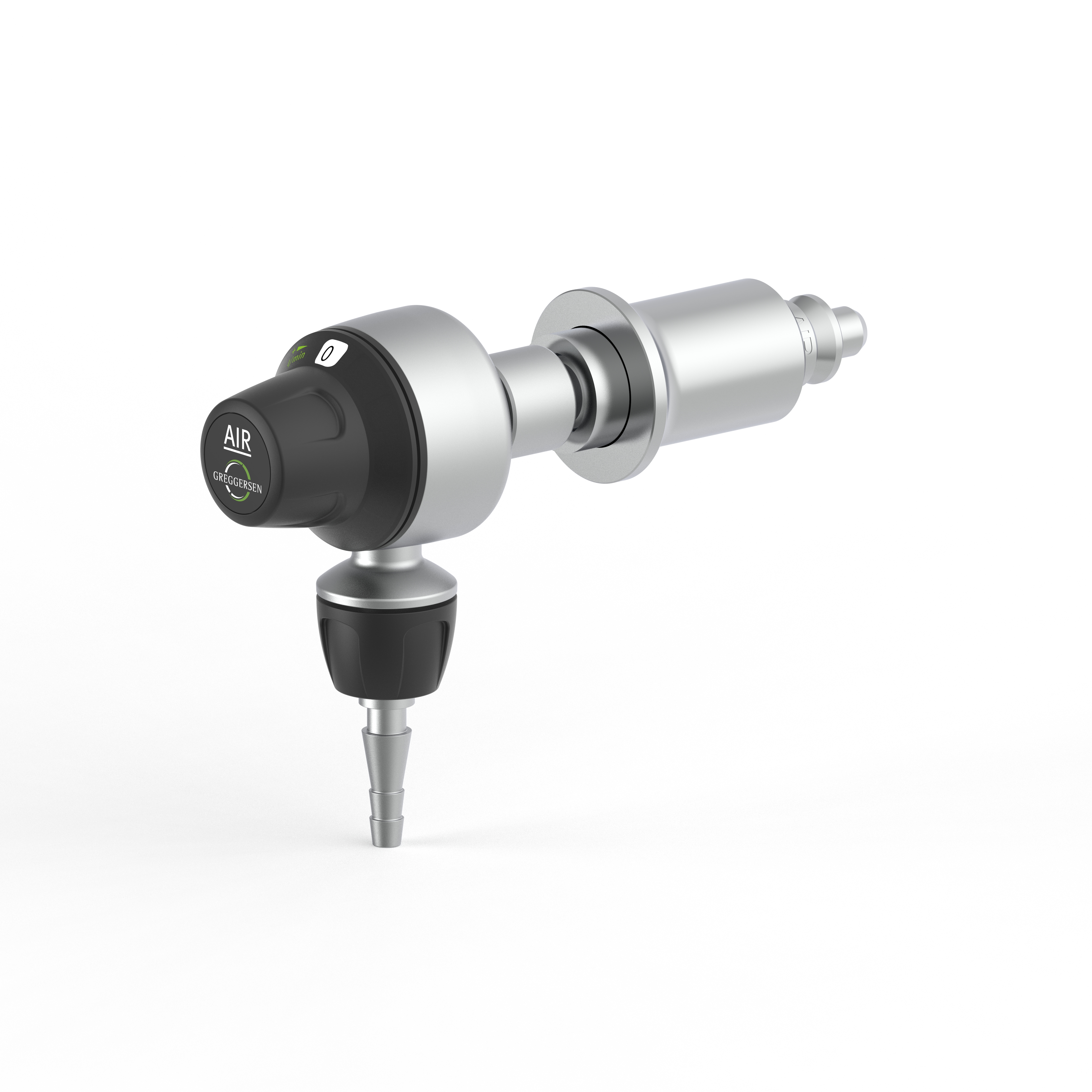

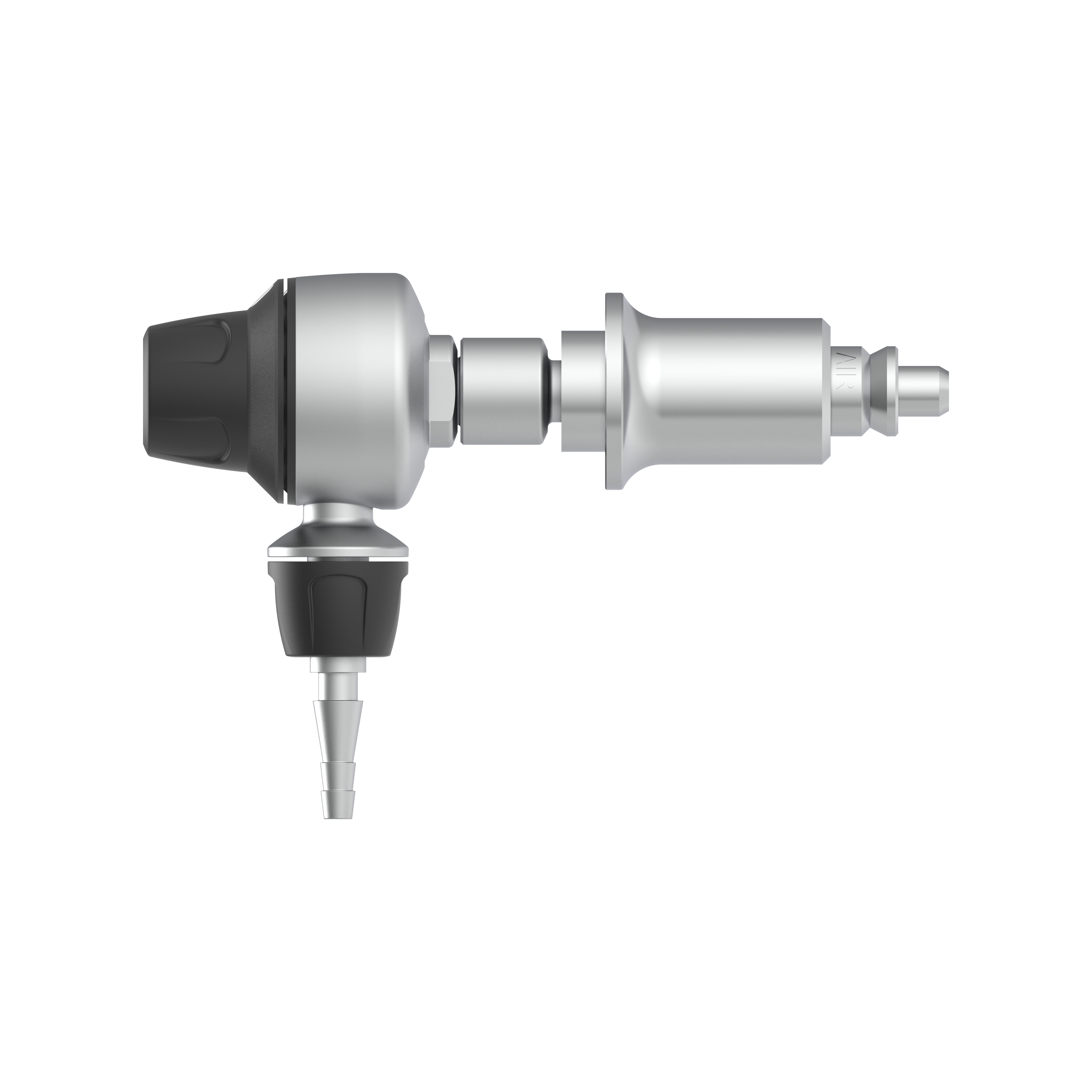

Compact Step-Flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for direct connection
to a terminal unit, with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Adjustment device ergonomically optimised and readability
of the set flow stage possible from various viewing
directions and angles.

Frontal operating concept -> enhanced safety when
setting the correct flow rate

Gas type:     med. compressed air / AIR
Connection: MEDAP probe
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16" nozzle -compressed gas
