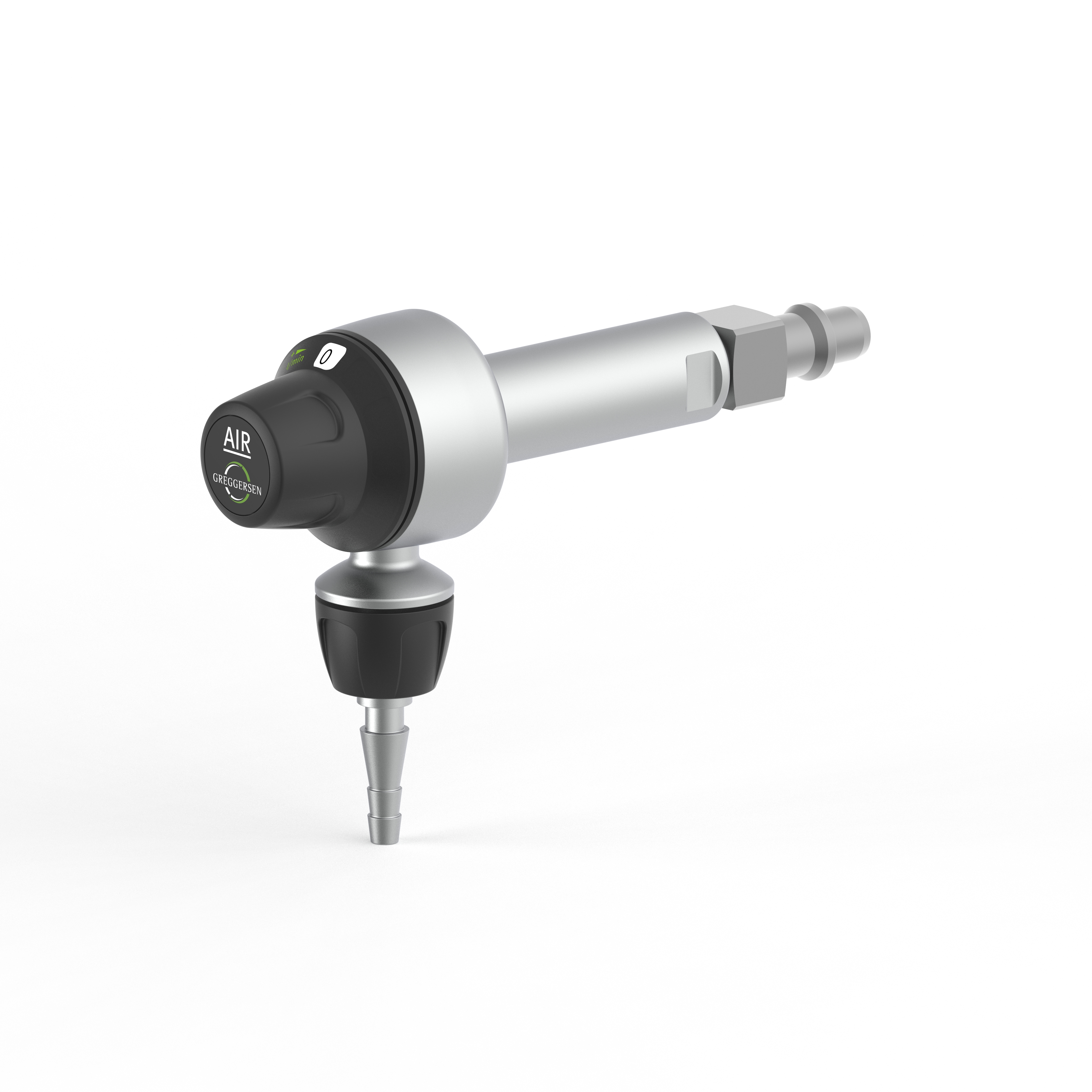

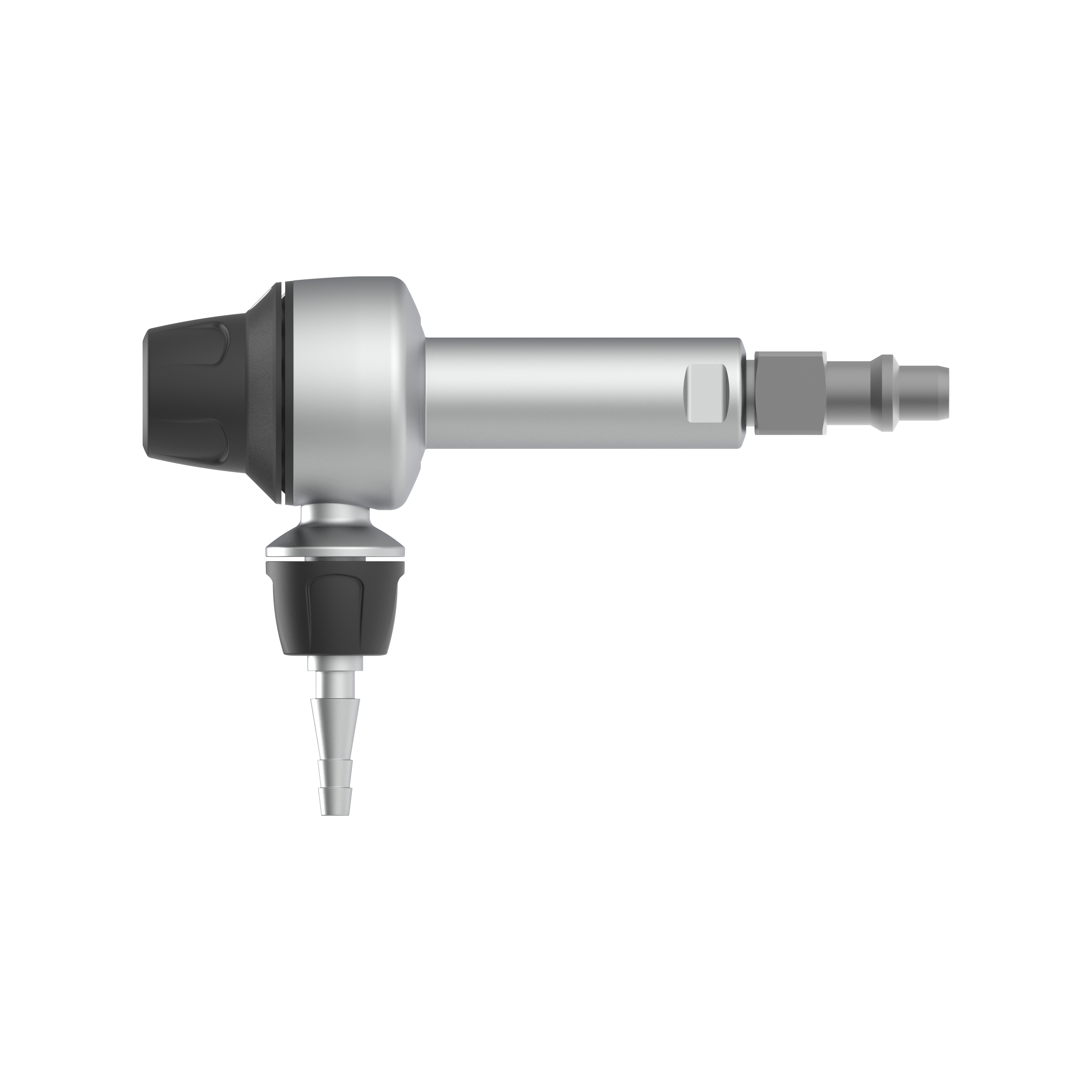

Kolibri 2 plug DIN AIR Standard+ long

KOLIBRI 2, AIR, 0...30 l/min
- Standard+ DIN probe -
Long version
Steps:
0 / 2 / 3 / 4 / 6 / 8 / 12 / 15 / 20 / 25 / 30 l/min

KOLIBRI 2 compact step-flowmeter
with fixed orifices and selection device

Total length "long"
Probe front to centre of flow outlet
(Distance from terminal unit to flow nipple):
75 mm (60 mm spacer)

Medical compact flowmeter for connection
to a terminal unit, with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment and readability
of the selected flow level from various perspectives
and angles possible.

Frontal operating concept -> more safety when
setting the correct flow rate

Gas type:     med. compressed air / AIR
Connection: Probe according to DIN 13260 part 2
Outlet:     9/16-18 UNF
Capacity:     0...30 l/min at 450 kPa (4.5 bar) inlet pressure

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
