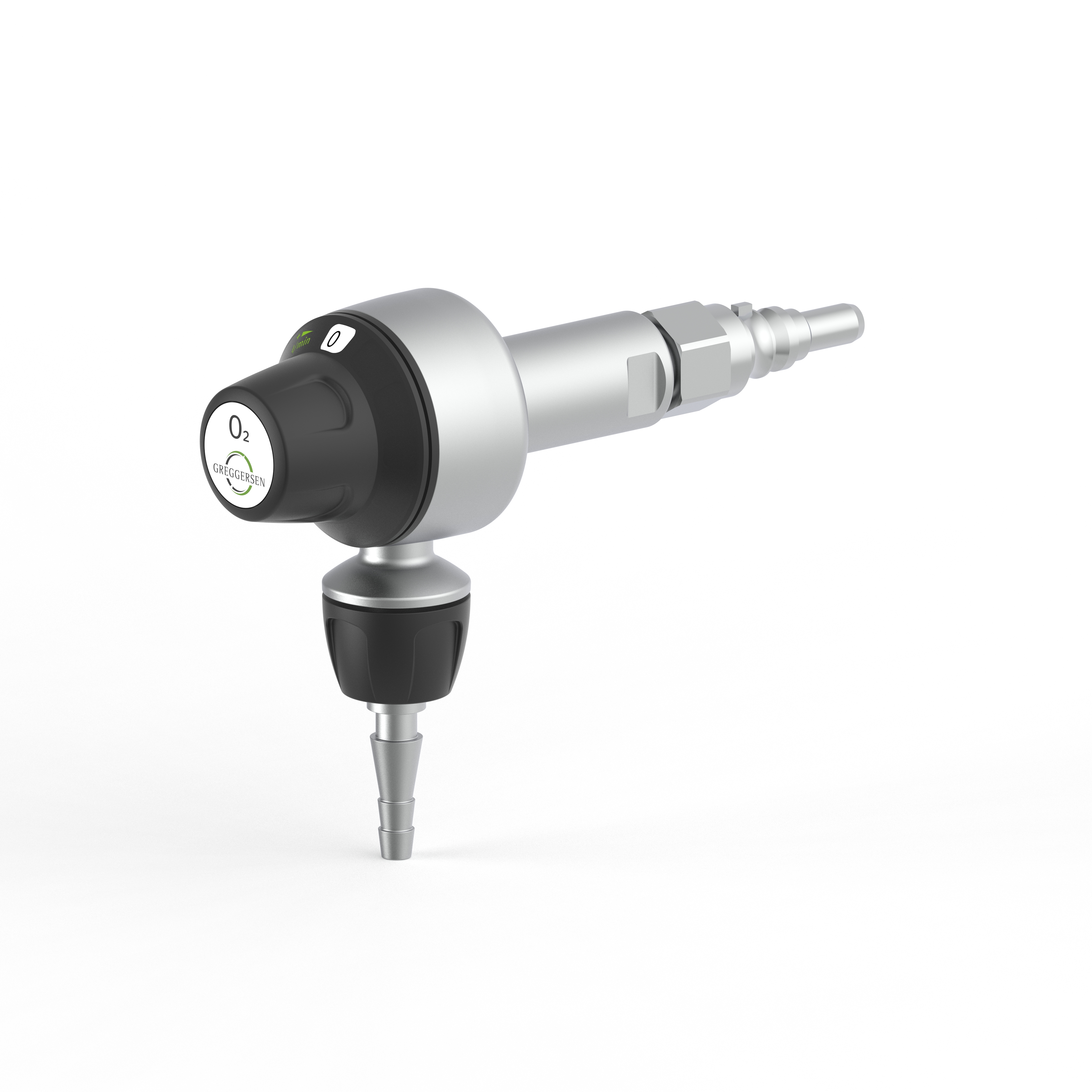

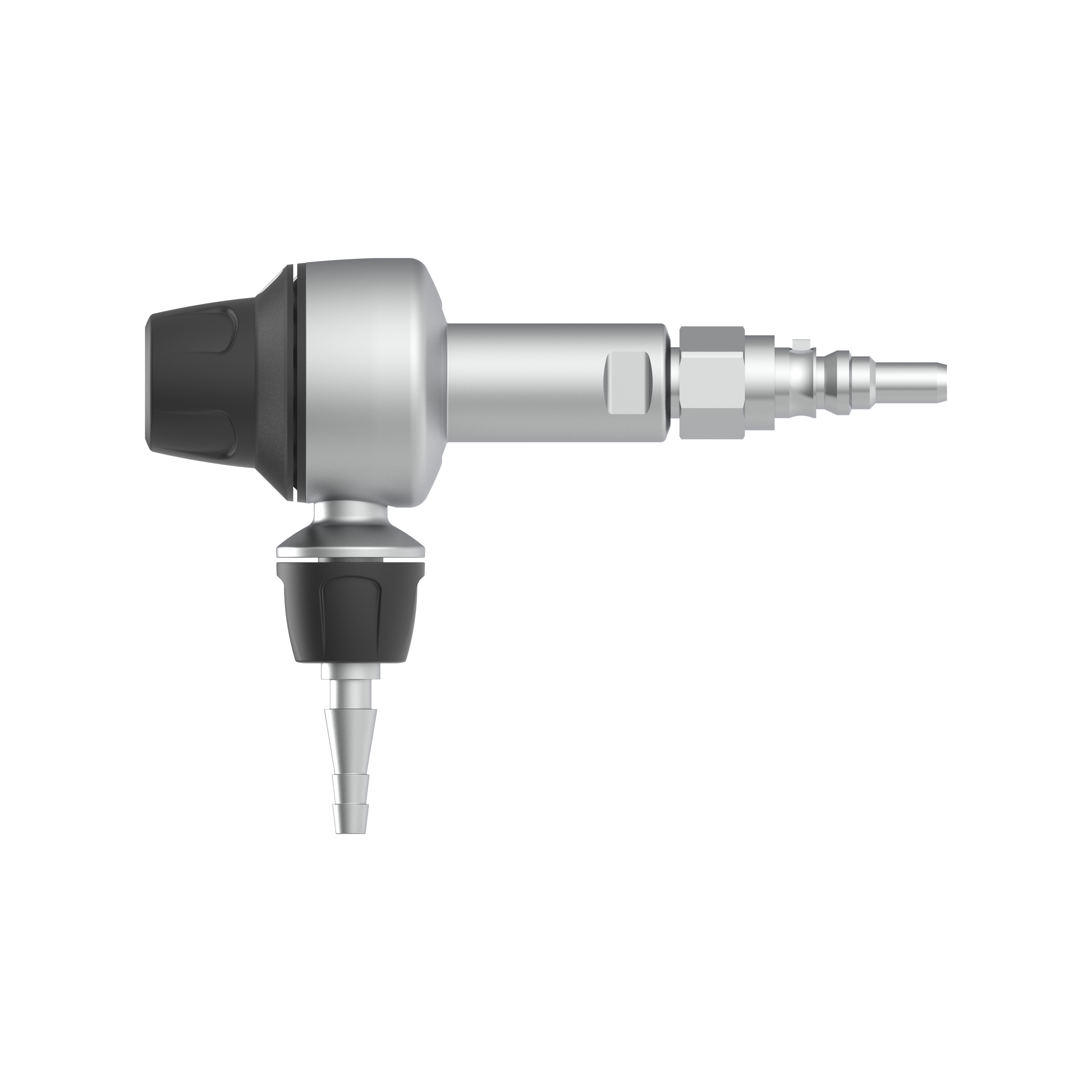

Kolibri 2 Plug AGA O2 Standard

KOLIBRI 2, O2, 0...15 l/min
- Standard AGA PLUG-IN UNIT -
Detent steps:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

In-step compact flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for connection
to a terminal unit, with handwheel - incrementally
adjustable flow, outlet 9/16-18 UNF

Ergonomically optimised adjustment device and readability
of the set flow step possible from various perspectives
and angles.

Frontal operating concept -> more safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Connection: Plug type AGA (SS 87 524 30)
Outlet:     9/16-18 UNF
Capacity:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Required accessories for operation:
900619 - Hose connection 9/16-18 UNF
