Kolibri 2 double rail CH NIST O2 Stan

KOLIBRI 2, O2, 0...15 l/min
- Standard - Double - RAIL-MOUNTED UNIT -
Flow steps (2x):
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

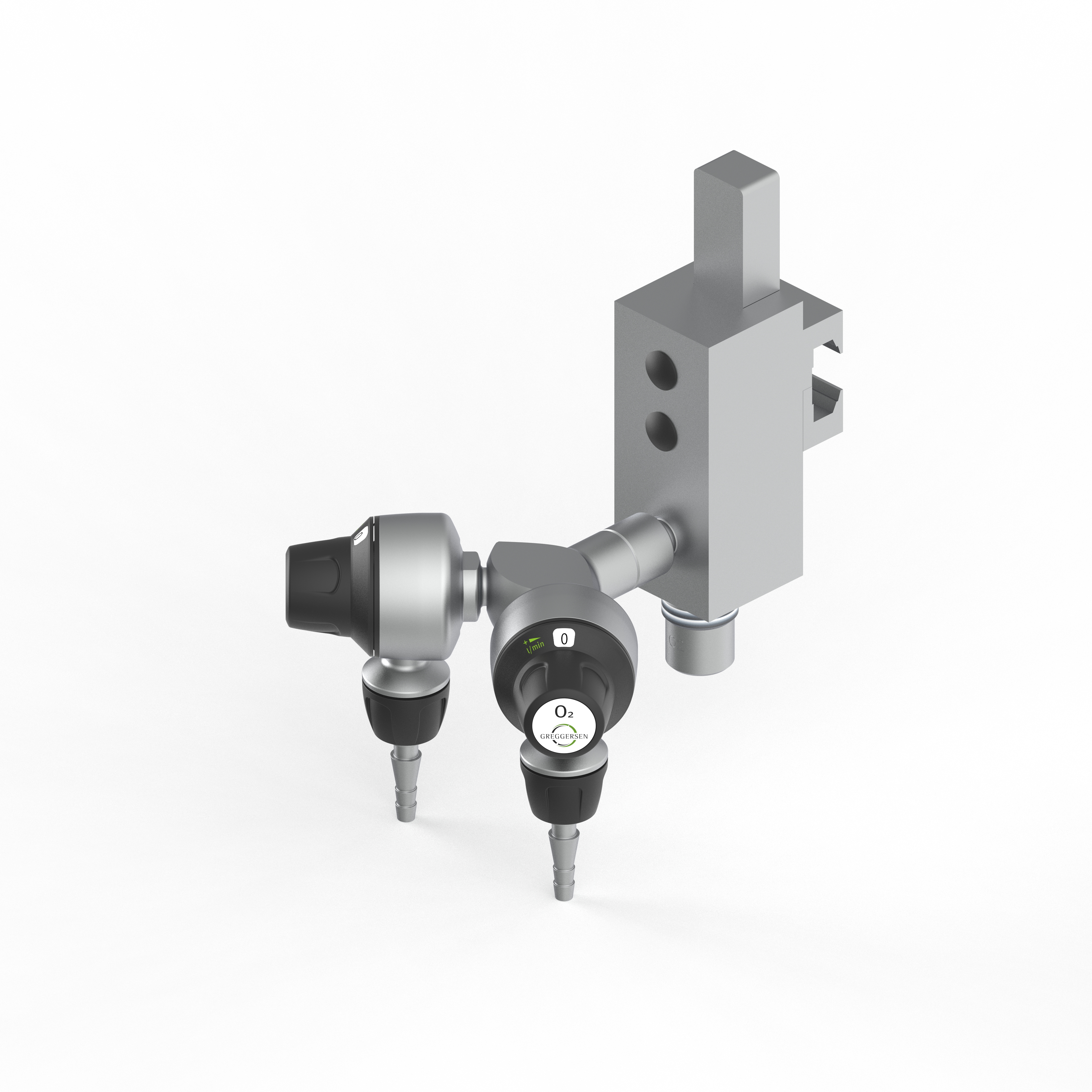

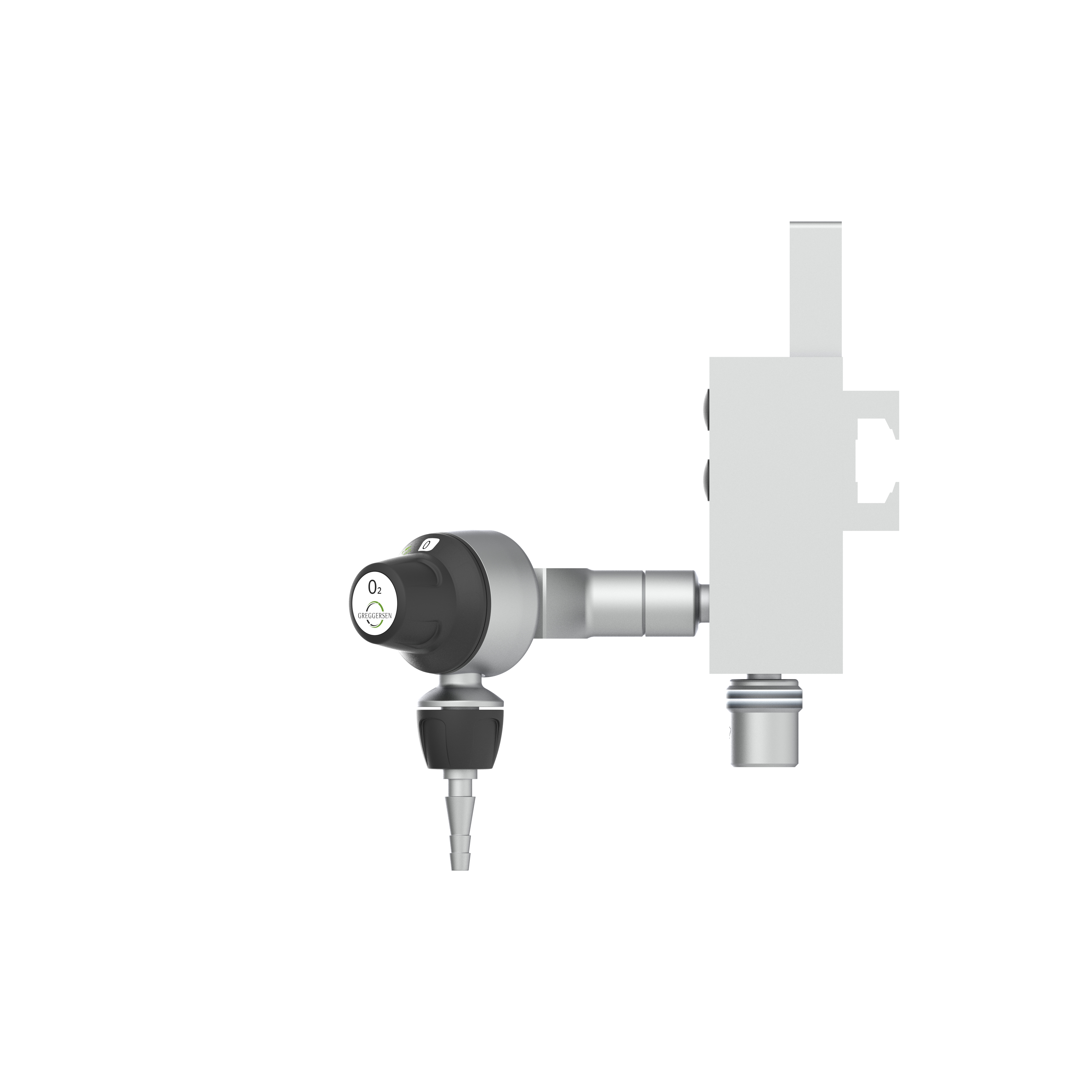

Double-step compact flowmeter KOLIBRI 2
with fixed orifices and selection device

Medical compact flowmeter for mounting on an
equipment rail; NIST gas inlet integrated into the rail clamp;
with handwheel - step-adjustable flow, outlet 9/16-18 UNF thread

-> With special, spring-loaded
rail clamp for up to 50mm rails <-

Adjustment device ergonomically optimised and readability
of the set flow step possible from various view directions
and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Connection: NIST according to DIN EN ISO 18082
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
2x 900619 - Hose connection 9/16-18 UNF
