Kolibri 2 Double Connector DIN AIR Standar

KOLIBRI 2, AIR, 0...15 l/min
- Standard - Double - DIN DIRECT PROBE -
Dosing steps (2x):
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

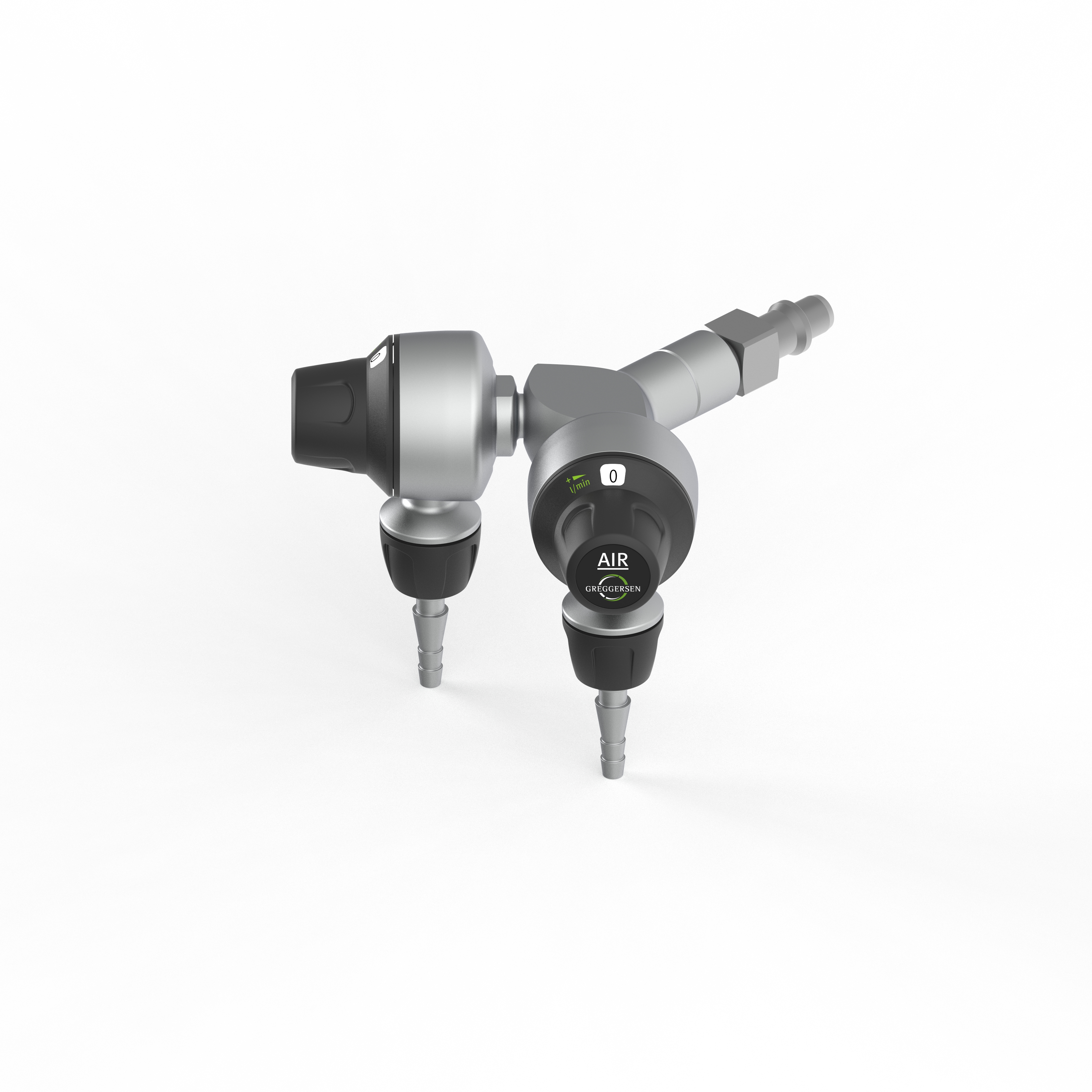

Double-Step-Compact Flowmeter KOLIBRI 2
with fixed orifices and selector device

Medical compact flowmeter for connection
to a terminal unit, with handwheel - step-by-step
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimised adjustment device and readability
of the set flow step from various viewing directions
and angles.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     med. compressed air / AIR
Connector: Probe according to DIN 13260 Part 2
Outlet:     9/16-18 UNF
Performance:     0...15 l/min at 450 kPa (4.5 bar) inlet pressure

Required accessories for operation:
2 x 900619 - Hose connector 9/16-18 UNF
