Central Gas Supply Accessories

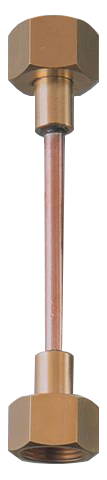

O2 Transfilling Connection, DIN - DIN, G3/4"- G3/4"
Oxygen transfilling connector, for filling or transfilling cylinders, for cylinder connections per DIN 477, No. 9 Medium: Oxygen / O2 Thread: G3/4" internal, right-hand (RH) Length: 160mm

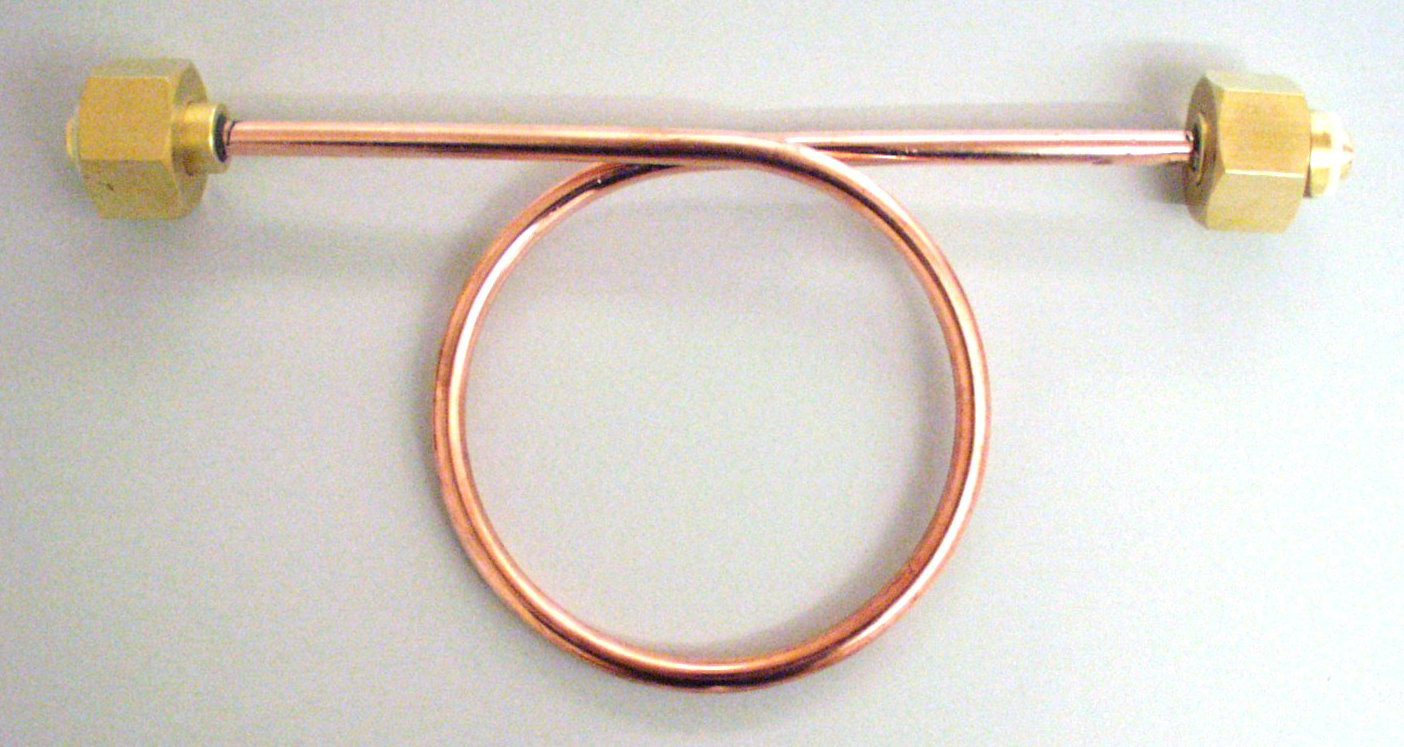

Transfer Bend O2, DIN, G3/4"
Oxygen transfilling pigtail, for filling or transfilling cylinders, with flexible compensation spiral, for cylinder connections according to DIN 477, No. 9 Medium: Oxygen / O2 Thread: G3/4" internal, right-hand (RH) Length: 300mm + compensation spiral
Transfer loop O2, DIN, G3/4" unannealed
Oxygen transfilling pigtail, not annealed **************** for filling or transfilling of cylinders, with compensating spiral, for cylinder connections according to DIN 477, No. 9 Medium: Oxygen / O2 Thread: G3/4" female, right (RH) Length: 300mm + compensating spiral
Y-connector, DIN AIR
Y-Distributor for Compressed Air compl. with 2 DIN self-sealing couplings Gas Type: Compressed Air/Air Inlet: Probe according to DIN 13260 Part 2 Outlet: 2 x self-sealing coupling according to DIN 13260 Part 2
Y-connector, DIN O2
Y-piece for oxygen compl. with 2 quick-connect couplings Gas type: Oxygen/O2 Inlet: Probe according to DIN 13260 Part 2 Outlet: 2 x quick-connect coupling according to DIN 13260 Part 2
Y-Distributor, DIN CO2
Y-Distributor for Carbon Dioxide compl. with 2 quick-release couplings Gas type: Carbon dioxide/Co2 Inlet: Probe according to DIN 13260 Part 2 Outlet: 2 x Socket according to DIN 13260 Part 2
Y-piece, DIN AIR - ANTIMAGNETIC
Y-Distributor for Compressed Air complete with 2 DIN couplings **** ANTIMAGNETIC **** Inlet: Probe according to DIN 13260 Part 2 Outlet: 2x Coupling according to DIN 13260 Part 2
Y-piece, DIN O2 - ANTIMAGNETIC
Y-Distributor for Oxygen complete with 2 DIN couplings **** NON-MAGNETIC **** Inlet: Probe according to DIN 13260 Part 2 Outlet: 2x Couplings according to DIN 13260 Part 2
Accessories for the optimisation of central gas supply systems.
Matching accessories ensure reliable connection, clear structure and additional functionality in your central gas supply. From connection parts to installation and maintenance components - all developed for maximum operational safety and easy integration into our CEGA system.
